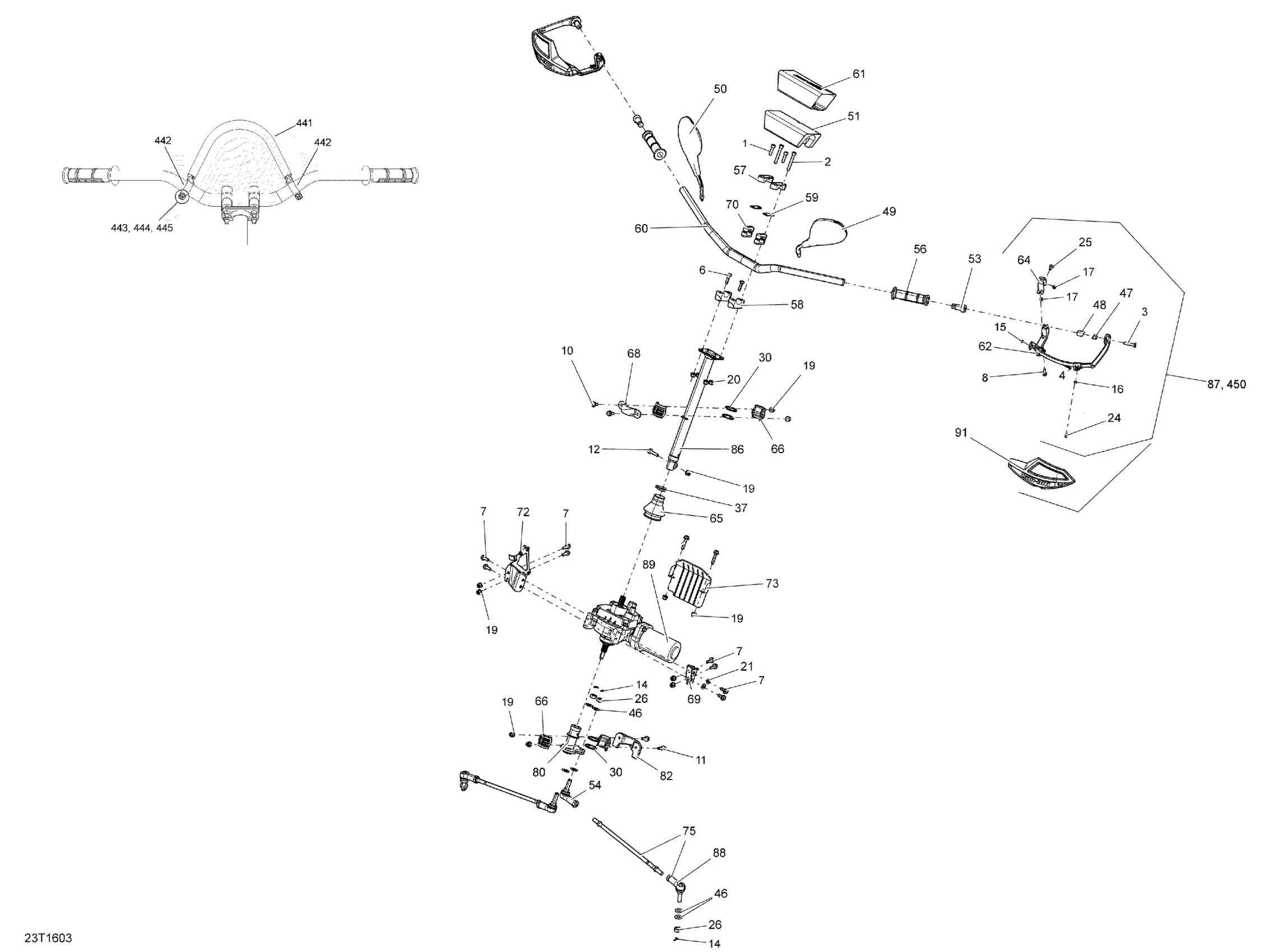

Can-Am Renegade, 2016 07- Steering Diagram

Socket Screw M8 X 30

205083060

$2.96

Socket Head Screw M8 X 60

205086060

$4.12

Hex. Screw M8 X 60

207086046

$2.85

Socket Head Screw | X

205384034

$6.49

Socket Head Screw M4 X 40 | X

205444086

$1.69

Hex. Screw M8 X 30

207183060

$1.58

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 25

207682534

$2.11

Hex. Flange Screw M8 X 35

207683544

$1.69

Cotter Pin

211400013

$0.37

Elastic Stop Nut M4

232541414

$0.58

Hex. Elastic Nut M5 | X

232551600

$1.15

Hex. Elastic Stop Nut M6

232561600

$1.15

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Elastic Flange Nut M8

233281416

$1.48

Conical Spring Washer M8

234281474

$1.48

Torx Screw M5 X 14

250000742

$1.47

Torx Head Screw M6 X 16

250000717

$2.11

Nut M12

250100099

$2.09

O-Ring

293300068

$7.65

Tie-Rap 180 mm

414115200

$0.11

Hardened Washer

706200281

$2.85

Small Bracket | DS 650 X

709400161

$21.99

Large Bracket | DS 650 X

709400162

$20.99

LH Mirror | Europe

709400406

$32.99

RH Mirror | Europe

709400523

$35.99

Foam

709400422

$17.49

End Piece

709400449

$8.49

RH Ball Joint

709402302

$36.99

Handle Grip

709400493

$14.83

Support

709400496

$22.49

Lower Mounting Clamp

709402750

$25.99

Stiffner

709400509

$4.69

Black, Handle Bar

709401240

$69.99

Manta Green, Handle Bar | Model-REN XXC Digital Camo

709401530

$110.99

Red, Handle Bar | Package XMR Engine 1000 Red Model

709401643

$99.49

Blue Handle Bar | Package XMR Engine 1000 Blue Model

709401644

$110.99

Cover

709400939

$24.99

Cover | Package XMR Engine 1000 Red Model

709402112

$33.99

Cover | Package-XXC Digital Camo

709402111

$33.99

Air Deflector Support Kit | X

715001378

$138.49

Air Deflector Support Kit | X

715001378

$138.49

Bellows

709400674

$18.99

Spherical Half Bushing

709400783

$7.65

Upper Column Attachment

709400827

$1.09

Power Steering Module Bracket

709400848

$16.49

Steering Support

709400919

$22.49

RH STEERING BRACKET - Call your local BRP dealership

709400994

Unavailable

HEAT DEFLECTOR - Call your local BRP dealership

709401005

Unavailable

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

Rod-Tie Ass'y | Incl 36

703501037

$110.99

Pitman Kit | Includes 3 to 5

703500785

$159.99

Pitman Kit

703500812

$159.99

Column Attachment

709401428

$38.99

Kit Tube-Main.

703501137

$184.99

Main Tube

709401008

$144.99

Air Deflector Support Kit | X

715001378

$138.49

LH Ball Joint

709402303

$36.99

Power Steering

709401608

$1,010.49

Manta Green, RH Deflector | Package-XMR 1000 Digital Camo

709401622

$35.99

Manta Green, LH Deflector | Package-XMR 1000 Digital Camo

709401623

$34.99

Red, RH Deflector | Package XMR Engine 1000 Red Model

709401667

$35.99

Red, LH Deflector | Package XMR Engine 1000 Red Model

709401668

$35.99

BLACK RH DEFLECTOR - Call your local BRP dealership | Package XMR Gulfstream Blue

709401669

Unavailable

BLACK LH DEFLECTOR - Call your local BRP dealership | Package XMR Gulfstream Blue

709401670

Unavailable

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Elastic Nut M6

233261466

$2.00

Strap Ass'y | Package XMR

506152115

$44.49

Bushing | Package XMR

506152156

$5.61

Deflector Kit | Package XXC Digital Camo

715003812

$34.99

Deflector Kit | Package XXC White/Red/Black

715003811

$34.99

Handlebar Wind Deflectors | Package XMR Gulfstream Blue

715003814

$34.99

Collar Tube | Package XMR

709401720

$19.99
