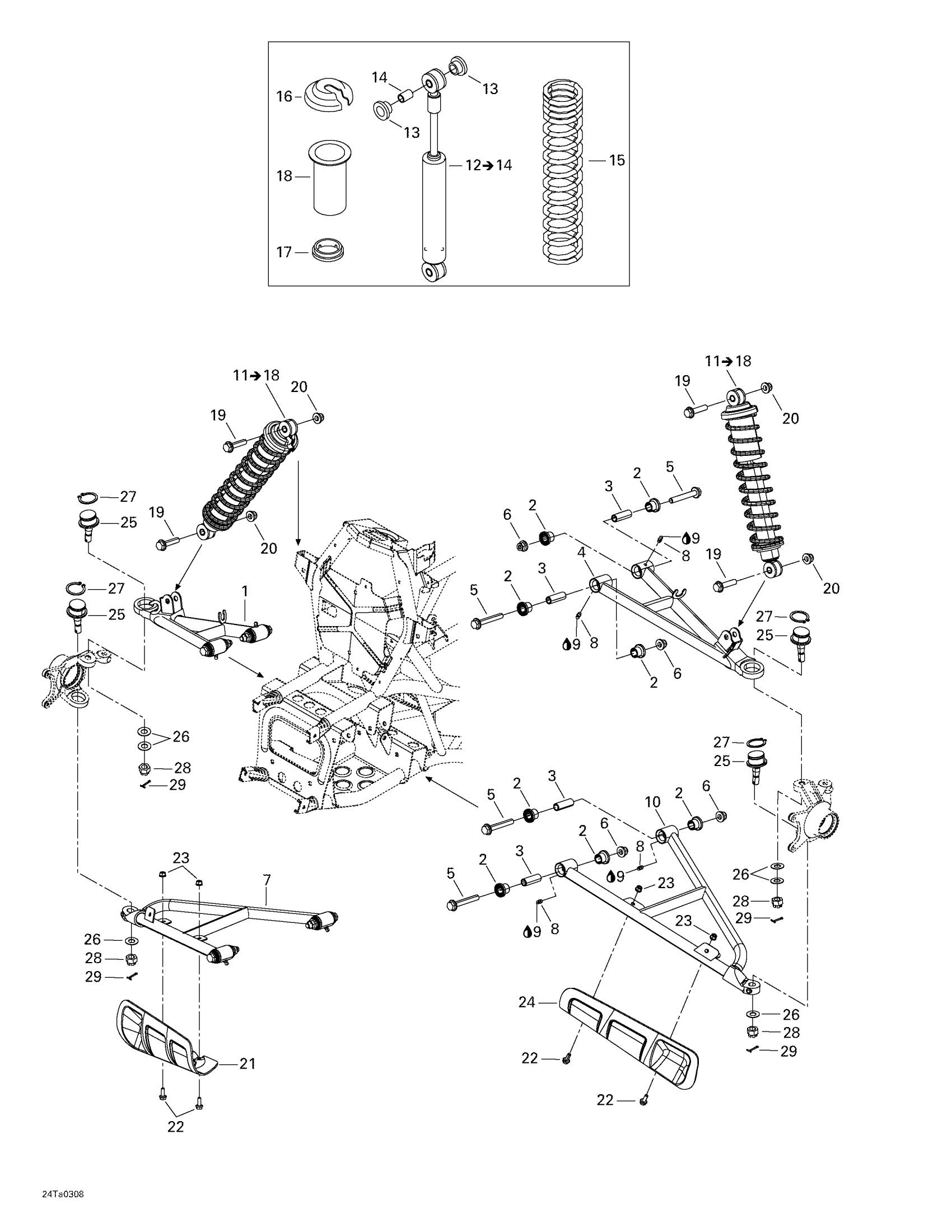

Can-Am Traxter Max, 2003 07- Front Suspension Diagram

#

Description
Price

1

RH UPPER ARM, BLACK - Call your local BRP dealership

706200318

Unavailable

2

Bushing

706200181

$3.14

3

Sleeve

706201587

$3.79

4

LH Upper Arm, Black

706200320

Unavailable

5

Hex. Flange Screw M10 X 70

207607046

$2.96

6

Hex. Flange Elastic Nut M10

233201436

$2.11

7

RH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

706200196

Unavailable

8

Grease Fitting

408200700

$3.49

9

Synthetic Grease, 400 G

293550010

Unavailable

10

LH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

706200200

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

FRONT SHOCK - Call your local BRP dealership | Includes 12 - 14.

706200300

Unavailable

13

CUSHION - Call your local BRP dealership

706200185

Unavailable

14

BUSHING - Call your local BRP dealership

706200186

Unavailable

15

Yellow Front Spring

706200301

Unavailable

16

Spring Stopper

706200881

$12.99

17

Spring Seat

706000197

Unavailable

18

PROTECTOR - Call your local BRP dealership

503139800

Unavailable

19

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

20

Hex. Flange Elastic Nut M10

233201414

$1.58

21

RH ARM PROTECTOR - Call your local BRP dealership

706200179

Unavailable

22

Hex. Flange Screw M6 X 16

207661644

$0.74

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

24

LH ARM PROTECTOR - Call your local BRP dealership

706200180

Unavailable

25

Ball Joint

706200653

$44.99

26

Hardened Washer

706200281

$2.85

27

Circlip 32 mm

293370009

$1.39

28

Hex. Castellated Nut M12

232221414

$3.17

29

Cotter Pin

211400017

$0.33
