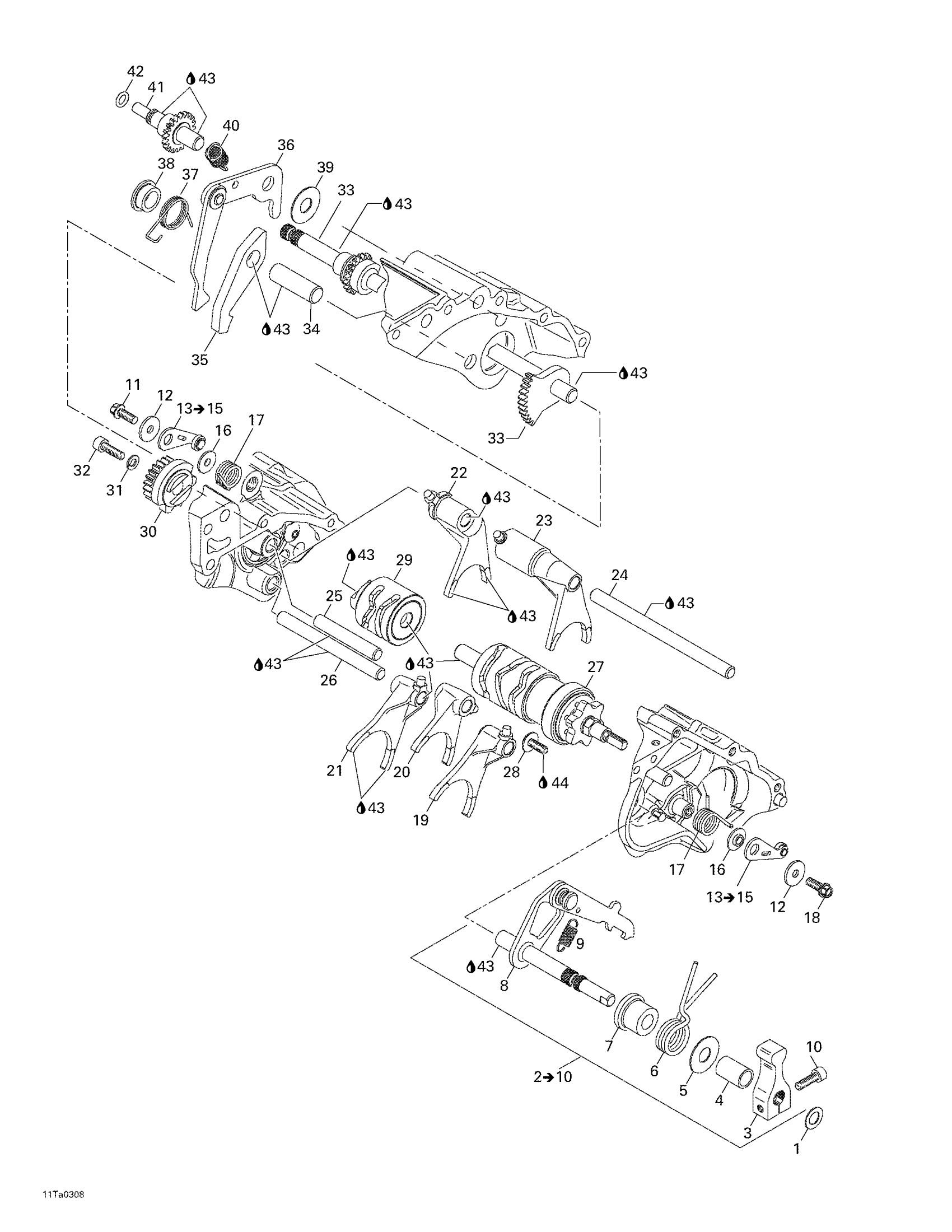

Can-Am Traxter Max, 2003 05- Gear Shift Diagram

#

Description
Price

1

THRUST WASHER - Call your local BRP dealership

420627100

Unavailable

2

SHIFT SHAFT ASS'Y - Call your local BRP dealership | Includes 2 to 10

420220537

Unavailable

3

Gear Shift Lever

711257090

Unavailable

4

Distance Sleeve

711247020

Unavailable

5

THRUST WASHER - Call your local BRP dealership

420227980

Unavailable

6

Shaft Spring

711239084

Unavailable

7

Collar Sleeve

711247050

Unavailable

8

Shift Shaft with Pawl Ass'y

711220536

Unavailable

9

Tension Spring

711239540

Unavailable

10

Socket Head Screw M6 X 25

205062544

$1.15

11

Hex. Flange Screw M6 X 16

420241751

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

INDEX LEVER KIT - Call your local BRP dealership

703500189

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Index Spring

420238290

$11.12

16

BUSHING - Call your local BRP dealership

420227710

Unavailable

17

INDEX LEVER SPRING - Call your local BRP dealership

420239560

Unavailable

18

Hex. Flange Screw M6 X 16

420241751

Unavailable

19

Shift Fork

420258402

Unavailable

20

Shift Fork

420258412

Unavailable

21

Shift Fork

420258392

Unavailable

22

Shift Fork

420258424

Unavailable

23

SHIFT FORK - Call your local BRP dealership

420258434

Unavailable

24

GEAR SHIFT ROD - Call your local BRP dealership

420257080

Unavailable

25

Needle Pin

420229475

$14.83

26

Cylindrical Pin M10 X 100

420229480

Unavailable

27

SHIFT DRUM ASS'Y - Call your local BRP dealership

420257107

Unavailable

28

SCREW M6 X 13 - Call your local BRP dealership

420241531

Unavailable

29

Shift Drum

420257111

Unavailable

30

INDEX GEAR - Call your local BRP dealership

420257130

Unavailable

31

Lock Washer

420445331

Unavailable

32

Socket Head Screw M6 X 25

205062544

$1.15

33

Shift Shaft Ass'y

420220585

Unavailable

34

SHAFT - Call your local BRP dealership

420220600

Unavailable

35

PARK LOCKING LEVER - Call your local BRP dealership

420258621

Unavailable

36

Actuating Lever

420258475

Unavailable

37

HELICAL SPRING - Call your local BRP dealership

420239550

Unavailable

38

COLLAR SLEEVE - Call your local BRP dealership

420247040

Unavailable

39

THRUST WASHER - Call your local BRP dealership

420227980

Unavailable

40

TENSION SPRING - Call your local BRP dealership

420239591

Unavailable

41

INDICATOR SHAFT - Call your local BRP dealership

420220545

Unavailable

42

O-Ring

420430800

$4.09

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Loctite 243, 10 ml

293800060

$21.49
