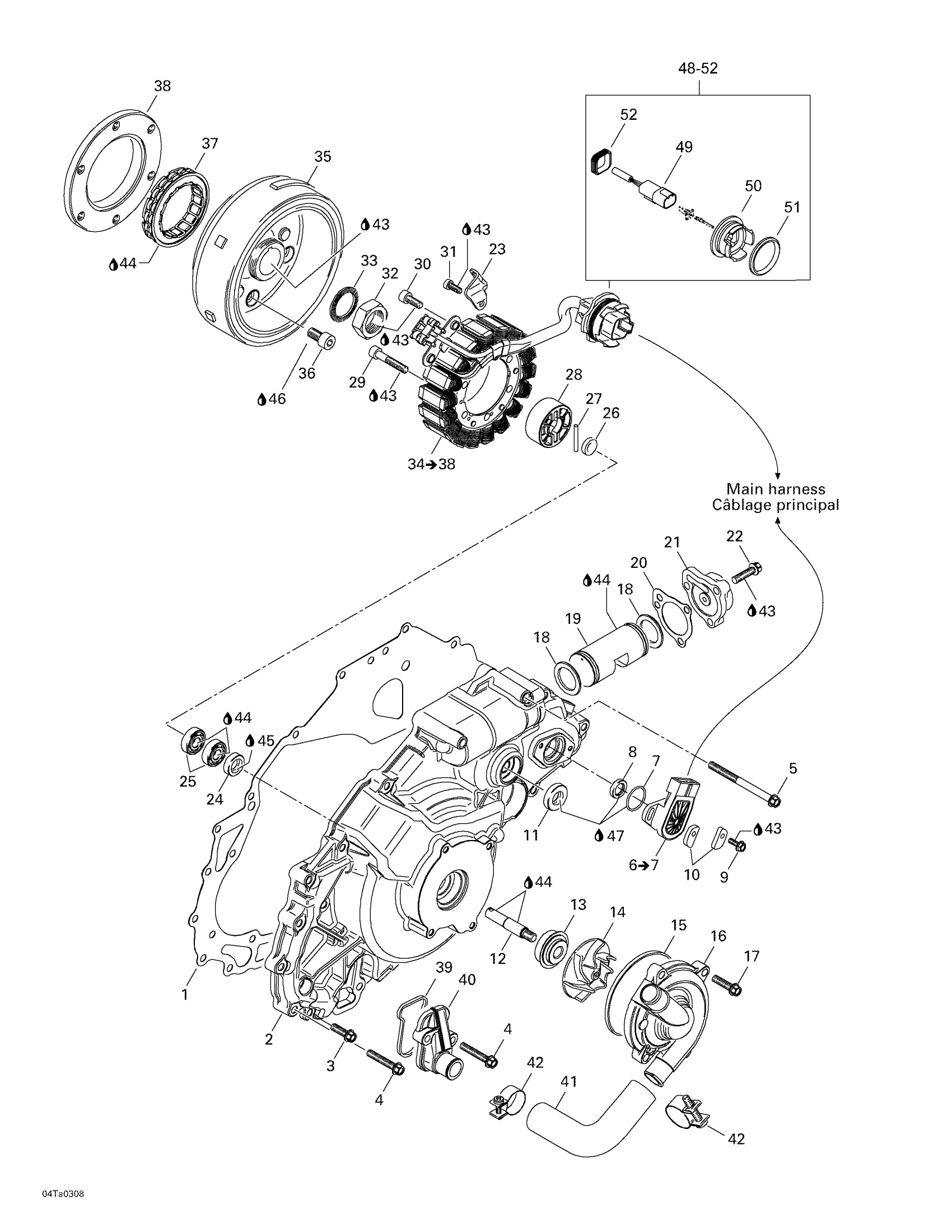

Can-Am Traxter Max, 2003 03- Ignition And Water Pump Diagram

#

Description
Price

1

GASKET, IGNITION COVER - Call your local BRP dealership

420650603

Unavailable

2

IGNITION COVER - Call your local BRP dealership

420211821

Unavailable

3

HEX. FLANGED SCREW M6 X 20 - Call your local BRP dealership

420241861

Unavailable

4

HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership

420941126

Unavailable

5

Hex. Flange Screw M6 X 70

420940576

Unavailable

6

POTENTIOMETER, TRANSMISSION - Call your local BRP dealership | Item 7 Not included

420265611

$134.99

7

O-RING - Call your local BRP dealership

420931390

Unavailable

8

Oil Seal

420230870

Unavailable

9

SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership

420440291

Unavailable

10

REINFORCEMENT - Call your local BRP dealership

420224630

Unavailable

11

OIL SEAL - Call your local BRP dealership

420950400

Unavailable

12

WATER PUMP SHAFT - Call your local BRP dealership

420220560

Unavailable

13

Rotary Seal

420650370

$43.49

14

WATER IMPELLER - Call your local BRP dealership

420222540

Unavailable

15

Rubber Ring

420650570

Unavailable

16

WATER PUMP HOUSING - Call your local BRP dealership

420222550

Unavailable

17

HEX. SCREW M6 X 25 - Call your local BRP dealership

420241911

Unavailable

18

K GROOVED RING - Call your local BRP dealership

420650660

Unavailable

19

Hydraulic Piston

420257140

Unavailable

20

GASKET, HYDRAULIC COVER - Call your local BRP dealership

420650640

Unavailable

21

HYDRAULIC COVER - Call your local BRP dealership

420211950

Unavailable

22

HEX. SCREW M6 X 25 - Call your local BRP dealership

420241911

Unavailable

23

Cable Clamp

420251180

Unavailable

24

OIL SEAL - Call your local BRP dealership

420250080

Unavailable

25

Ball Bearing

420632170

Unavailable

26

DISTANCE SLEEVE - Call your local BRP dealership

420247030

Unavailable

27

NEEDLE PIN - Call your local BRP dealership

420932885

Unavailable

28

PAWL - Call your local BRP dealership

420659190

Unavailable

29

HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership

420941126

Unavailable

30

Hex. Flange Screw M6 X 16

420241751

Unavailable

31

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

32

HEX. NUT M22 - Call your local BRP dealership

420242875

Unavailable

33

SERRATED WASHER 22 MM - Call your local BRP dealership

420245875

Unavailable

34

Magneto Ass'y | Includes 32 to 36

420296107

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

SOCKET HEAD SCREW M8 X 16 - Call your local BRP dealership

205081644

Unavailable

37

Sprag Clutch

420659117

$349.99

38

Clutch Sprag Housing

420659129

$144.99

39

SEALING RING - Call your local BRP dealership

420650940

Unavailable

40

INLET FITTING - Call your local BRP dealership

420222620

Unavailable

41

PROFILED TUBE - Call your local BRP dealership

420222630

Unavailable

42

Clamp

420251222

Unavailable

43

Loctite 243, 10 ml

293800060

$21.49

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Dow Corning 111, 150 g

413707000

$59.99

46

Sealant Loctite 648

219703000

$45.99

47

Grease, Super Lube

293550030

$28.99

48

Adaptor Ass'y | Includes 3 to 7

707000031

Unavailable

49

Male Terminal Housing, 6 Circuits

710001539

$19.99

50

Adaptor

707000138

Unavailable

51

Gasket

293300033

Unavailable

52

Gasket

293200055`

Unavailable
