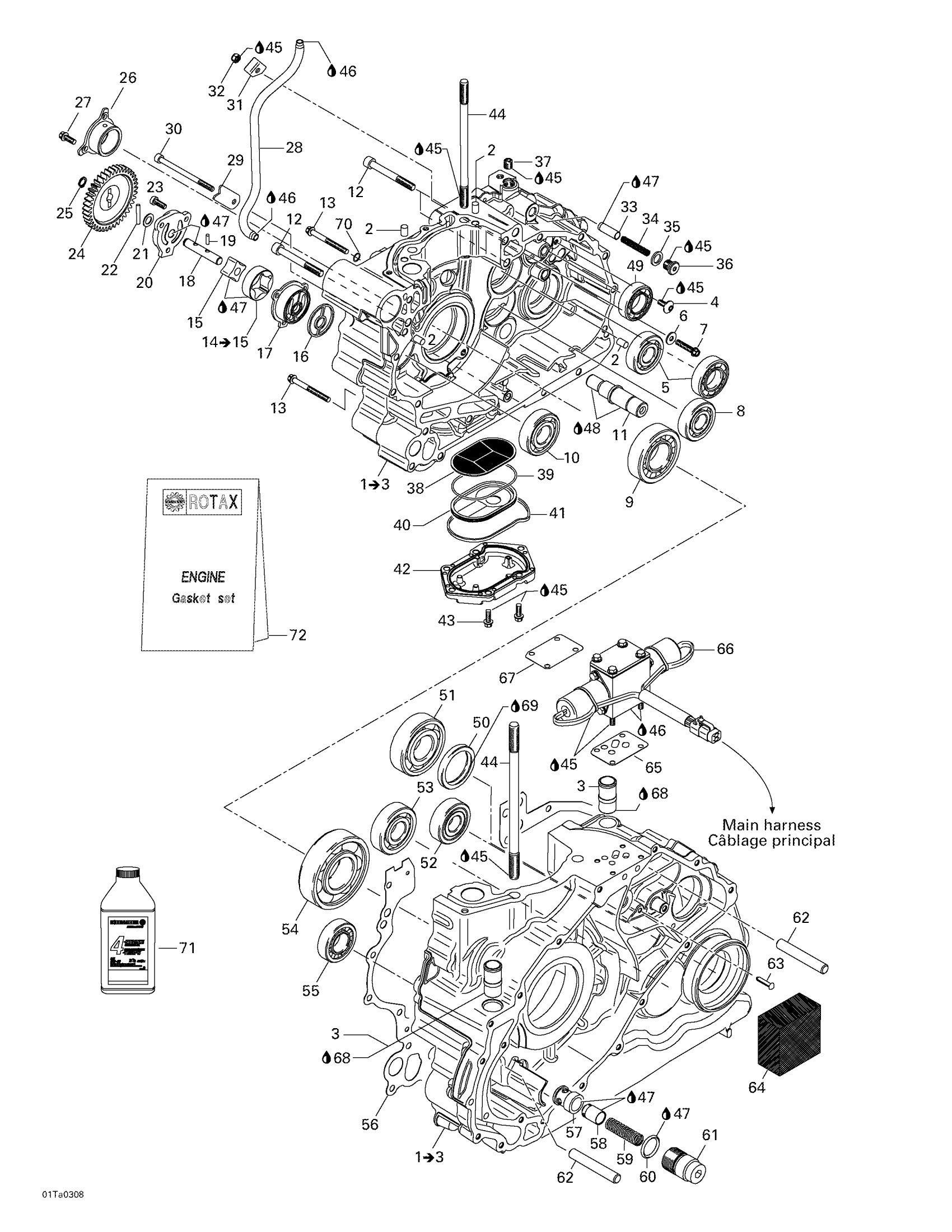

Can-Am Traxter Max, 2003 01- Crankcase Diagram

#

Description
Price

1

Crankcase Ass‘Y | Includes 1 to 2

420295881

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

TUBE - Call your local BRP dealership

420224260

Unavailable

4

SCREW M6 X 13 - Call your local BRP dealership

420241531

Unavailable

5

Ball Bearing 6205

420232764

$25.99

6

Washer

420627400

$4.44

7

HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership

420241941

Unavailable

8

Ball Bearing 6304E

420932095

Unavailable

9

ROLLER BEARING - Call your local BRP dealership

420232490

Unavailable

10

BALL BEARING 63/22 - Call your local BRP dealership

420632200

Unavailable

11

INTERMEDIATE GEAR SHAFT - Call your local BRP dealership

420220570

Unavailable

12

SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership

420841991

Unavailable

13

Hex. Flange Screw M6 X 65

420640351

Unavailable

14

OIL PUMP ROTOR ASS'Y - Call your local BRP dealership | Includes 16 to 17

420956275

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

RUBBER RING - Call your local BRP dealership

420650960

Unavailable

17

Ring Housing

420610140

Unavailable

18

Oil Pump Shaft

420220592

Unavailable

19

Needle Pin

420232731

$4.01

20

OIL PUMP COVER - Call your local BRP dealership

420211852

Unavailable

21

Thrust Washer

420827590

$4.01

22

NEEDLE PIN - Call your local BRP dealership

420232971

$4.29

23

SOCKET HEAD SCREW M6 X 20 - Call your local BRP dealership

420240404

Unavailable

24

Oil Pump Gear, 40 Teeth

420635030

Unavailable

25

Snap Ring

420245330

$1.79

26

Ring Housing

420610130

Unavailable

27

Hex. Flange Screw M6 X 16

420241751

Unavailable

28

Oil Pipe

420224622

Unavailable

29

Holding Strip

420627437

Unavailable

30

Socket Head Screw M6 X 90

420241481

Unavailable

31

Holding Strip

420627432

Unavailable

32

Elastic stop nut M6

420561414

Unavailable

33

PISTON - Call your local BRP dealership

420256590

Unavailable

34

COMPRESSION SPRING - Call your local BRP dealership

420238020

Unavailable

35

Aluminum Sealing Ring

420250016

$5.39

36

Plug Screw M12 x 1,5

420241701

$12.63

37

PLUG SCREW M12 X 1.5 - Call your local BRP dealership

420840651

Unavailable

38

OIL SIEVE - Call your local BRP dealership

420256572

Unavailable

39

O-RING - Call your local BRP dealership

420931385

Unavailable

40

OIL COLLECTOR - Call your local BRP dealership

420256652

Unavailable

41

RUBBER RING - Call your local BRP dealership

420650950

Unavailable

42

Oil Sieve Cover

420211941

Unavailable

43

HEX. FLANGED SCREW M6 X 20 - Call your local BRP dealership

420241861

Unavailable

44

STUD M10 X 190 - Call your local BRP dealership

420241670

Unavailable

45

Loctite 243, 10 ml

293800060

$21.49

46

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Molykote G-N, 50 g

420297433

$26.99

49

Bearing_Ball - Call your local BRP dealership

420932650

Unavailable

50

OIL SEAL - Call your local BRP dealership

420650700

Unavailable

51

Ball Bearing

420932822

$30.49

52

Ball Bearing

420932816

$42.49

53

Ball Bearing 6304E

420932095

Unavailable

54

BALL BEARING - Call your local BRP dealership

420432120

Unavailable

55

ROLLER BEARING - Call your local BRP dealership

420232280

Unavailable

56

GASKET, CRANKCASE - Call your local BRP dealership

420650422

Unavailable

57

SEAT VALVE SLEEVE - Call your local BRP dealership

420256602

Unavailable

58

Piston Valve

420256638

$22.99

59

COMPRESSION SPRING - Call your local BRP dealership

420938785

Unavailable

60

O-Ring

420250050

$10.43

61

Plug Screw M24 X 1.5

420640790

Unavailable

62

Needle Pin

420229475

$14.83

63

Groove Pin M4 X 20

420229170

Unavailable

64

OIL SEPARATING FOAM - Call your local BRP dealership

420256720

Unavailable

65

SOLENOID VALVE GASKET - Call your local BRP dealership

420650630

$11.49

66

Solenoïd Valve

420256540

Unavailable

67

Gasket

420650636

$12.11

68

Sealant Loctite 648

219703000

$45.99

69

Grease, Super Lube

293550030

$28.99

70

Oil Seal

420230150

$2.85

71

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

72

Engine Gasket Set

420296372

Unavailable
