Description

Price

1

Flashing Light

710000360

Unavailable

Flashing Light

710000361

Unavailable

2

Female Terminal (not shown)

710000385

Unavailable

3

Lock Washer Serrated M6

250200041

$1.15

4

Collar

710000362

Unavailable

5

Grommet

414036300

$2.79

6

Tail light support

705000658

Unavailable

7

Gasket, Neoprene 2000Mm Long

219704476

$15.36

8

Spacer

705000659

Unavailable

9

Flasher Unit

710000363

Unavailable

10

RELAY 12 V. - Call your local BRP dealership

710000364

Unavailable

11

Horn

710000365

Unavailable

12

Harness

710000366

Unavailable

13

EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe

710000367

Unavailable

14

Reflector

705000660

Unavailable

15

Tail Light

710000368

Unavailable

16

FRONT LIGHT - Call your local BRP dealership

710000369

Unavailable

17

LAMP SUPPORT - Call your local BRP dealership

705000283

Unavailable

18

LIGHT/HORN SWITCH - Call your local BRP dealership

710000370

Unavailable

19

RH Mirror | Europe

709400407

$47.49

20

Tie-Rap 180 mm

414115200

$0.11

21

Hex. Flange Elastic Nut M5

233251414

$1.04

22

Power reductor

710000371

Unavailable

23

Bracket

707000286

Unavailable

24

Locking plate

707000287

Unavailable

25

Locking device (with key)

707000288

Unavailable

26

WARNING DECAL, PUBLIC ROADS USE - Call your local BRP dealership | English Version

704901444

Unavailable

27

MIRROR SUPPORT - Call your local BRP dealership | Europe

705000673

Unavailable

28

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

29

Hex. Flange Elastic Nut M5

233251414

$1.04

30

Flat Washer M5

234051410

$0.53

31

Pop Rivet 3/16"

390402300

$0.75

32

Hex. Flange Screw M6 X 20

207662044

$2.00

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

WASHER-LOCK HELICAL DIN.127B - Call your local BRP dealership

234180411

Unavailable

35

Push Nut

250100034

$1.29

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Push-nut

250100043

Unavailable

38

O-ring

293300097

Unavailable

39

Hex. Flange Elastic Nut M10

233201414

$1.58

40

Hex. Flange Elastic Nut M8

233281414

$1.47

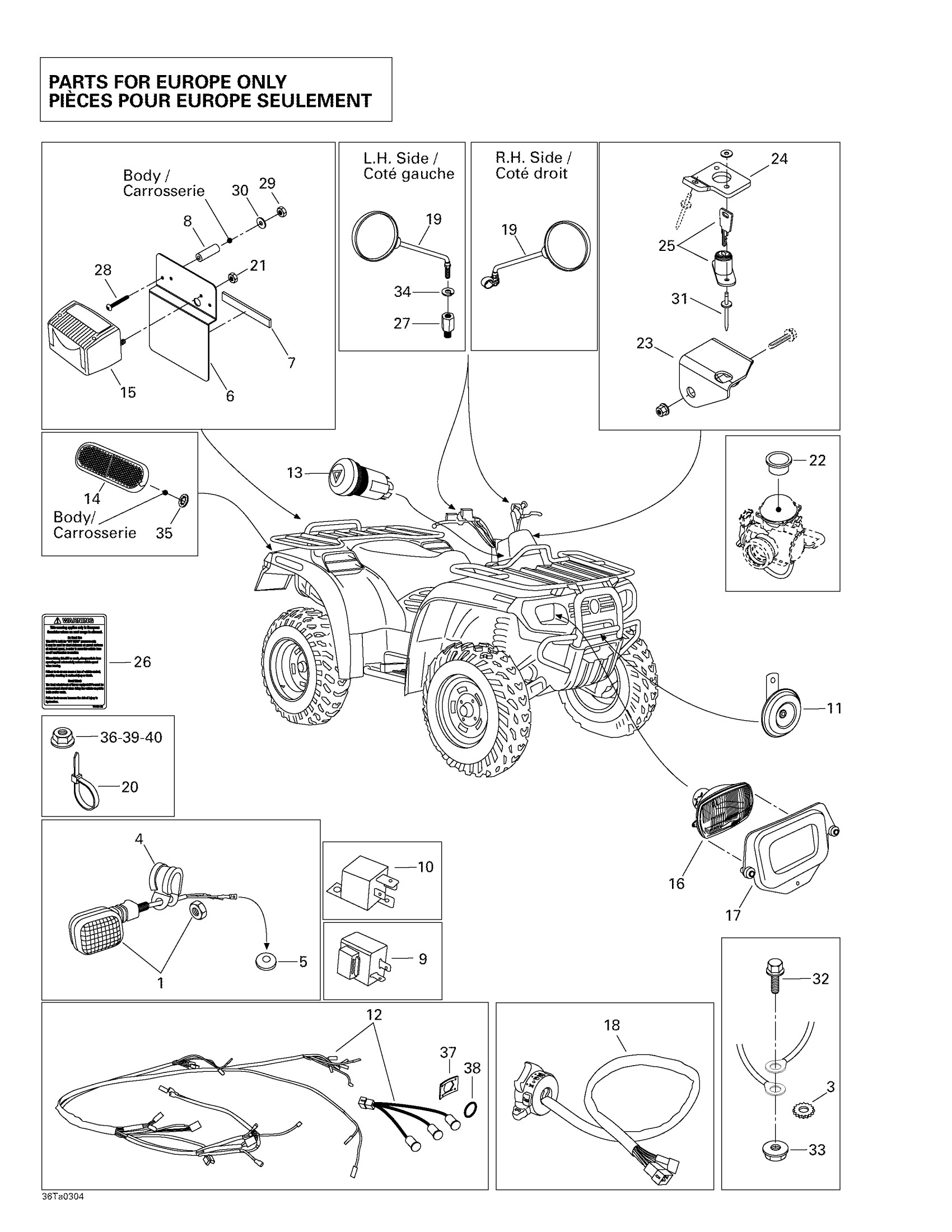

Can-Am Traxter Autoshift XT, 2003 10- Homologation Kit For Europe Diagram

Flashing Light

Flashing Light

Female Terminal (not shown)

Lock Washer Serrated M6

Collar

Grommet

Tail light support

Gasket, Neoprene 2000Mm Long

Spacer

Flasher Unit

RELAY 12 V. - Call your local BRP dealership

Horn

Harness

EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe

Reflector

Tail Light

FRONT LIGHT - Call your local BRP dealership

LAMP SUPPORT - Call your local BRP dealership

LIGHT/HORN SWITCH - Call your local BRP dealership

RH Mirror | Europe

Tie-Rap 180 mm

Hex. Flange Elastic Nut M5

Power reductor

Bracket

Locking plate

Locking device (with key)

WARNING DECAL, PUBLIC ROADS USE - Call your local BRP dealership | English Version

MIRROR SUPPORT - Call your local BRP dealership | Europe

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

Hex. Flange Elastic Nut M5

Flat Washer M5

Pop Rivet 3/16"

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

WASHER-LOCK HELICAL DIN.127B - Call your local BRP dealership

Push Nut

Hex. Flange Elastic Nut M6 x 1.0

Push-nut

O-ring

Hex. Flange Elastic Nut M10

Hex. Flange Elastic Nut M8
