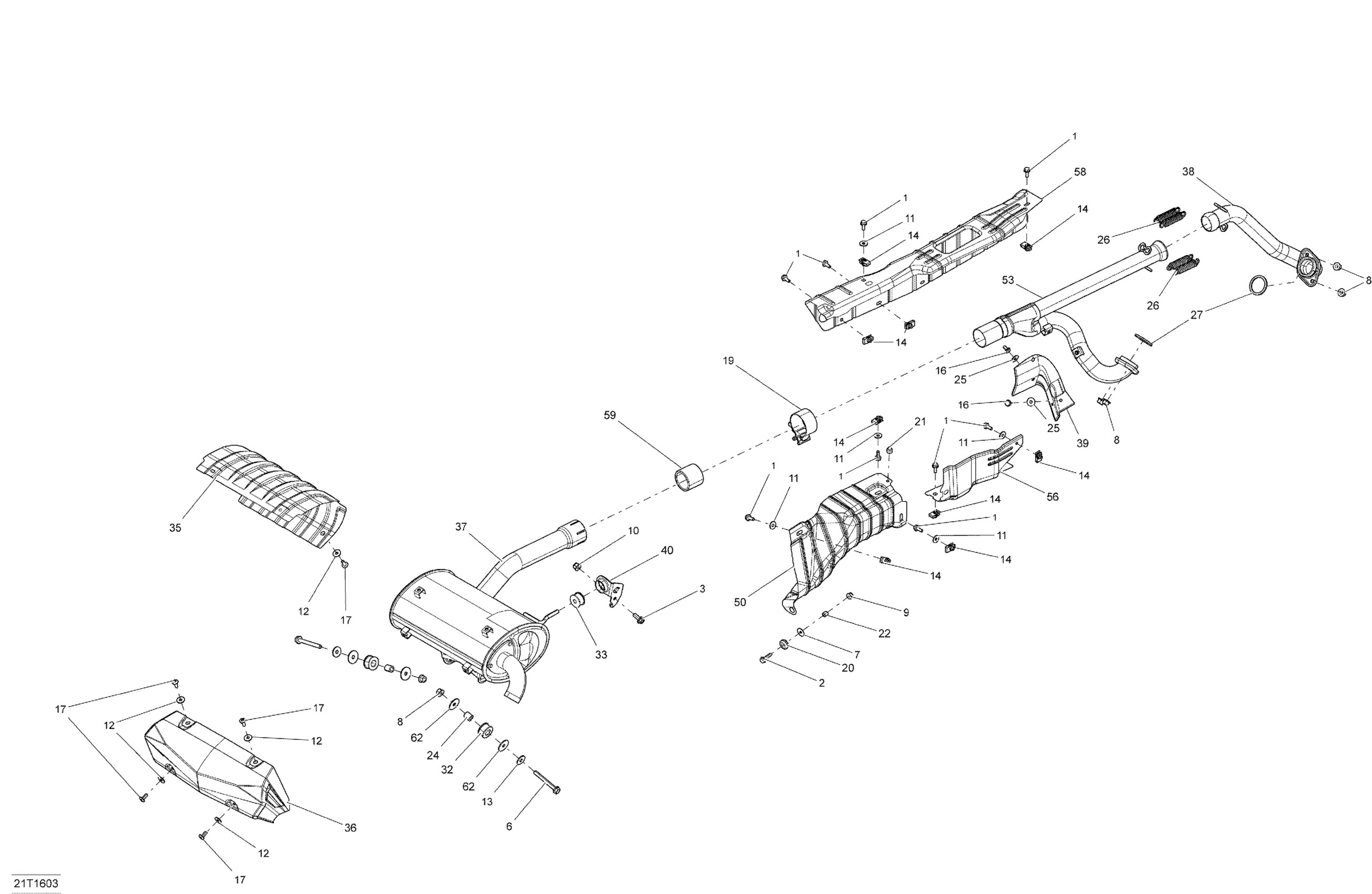

Can-Am Renegade, 2016 01- Exhaust System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

2

Hex. Flange Screw M6 X 25

207662534

$2.11

3

Hex. Flange Screw

207682034

$2.11

6

Hex. Flange Screw M8 X 70

207687044

$7.41

7

Flat Washer

224060201

$1.26

8

Hex. Flange Nut M8

233081416

$1.15

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Flat Washer 6 mm

234062410

$0.77

12

Stainless Steel Flat Washer

234062670

$2.11

13

Flat Washer 8 mm

234082410

$1.47

14

Panel Nut M6 X 1.0

250100198

$2.11

16

Hex. Flange Screw M6 X 12

250000574

$2.11

17

Torx Head Screw M6 X 16

250000717

$2.11

19

Gear Clamp

293650231

$16.99

20

Grommet

709000582

$4.69

21

Rubber Bumper

293830005

$8.09

22

Bushing

293900105

$7.65

24

Spacer Bushing

293900116

$3.24

25

Flat Washer

250200082

$0.42

26

Spring

415107100

$6.35

27

Gasket

707600317

$11.60

32

Vibration Damper

707603323

$11.65

33

Anti-Vibration Rubber

707600702

$8.57

35

Heat Deflector

707600737

$22.49

36

Heat Deflector

707600738

$53.99

37

Muffler | Includes 18a to 18e

707600748

$550.99

37

MUFFLER_EXHAUST - Call your local BRP dealership | Europe Model

707601632

Unavailable

37a

Spark Arrestor

707601803

$49.99

37b

Gasket

707601799

$5.99

37c

MUFFLER END PIECE - Call your local BRP dealership

715900144

Unavailable

38

Front Head Pipe

707600627

$142.99

38

Front Head Pipe

707600764

$142.99

39

Pipe Protector

707600932

$15.81

40

Support

707600933

$7.90

50

Protector

707601425

$19.49

53

Rear Head Pipe

707601446

$206.49

53

Rear Head Pipe

707601455

$206.49

56

Protector

707601484

$12.71

58

Heat Shield

707603724

$13.99

59

Pipe Gasket

707601544

$19.49

62

Flat Washer M8

250200158

$2.11
