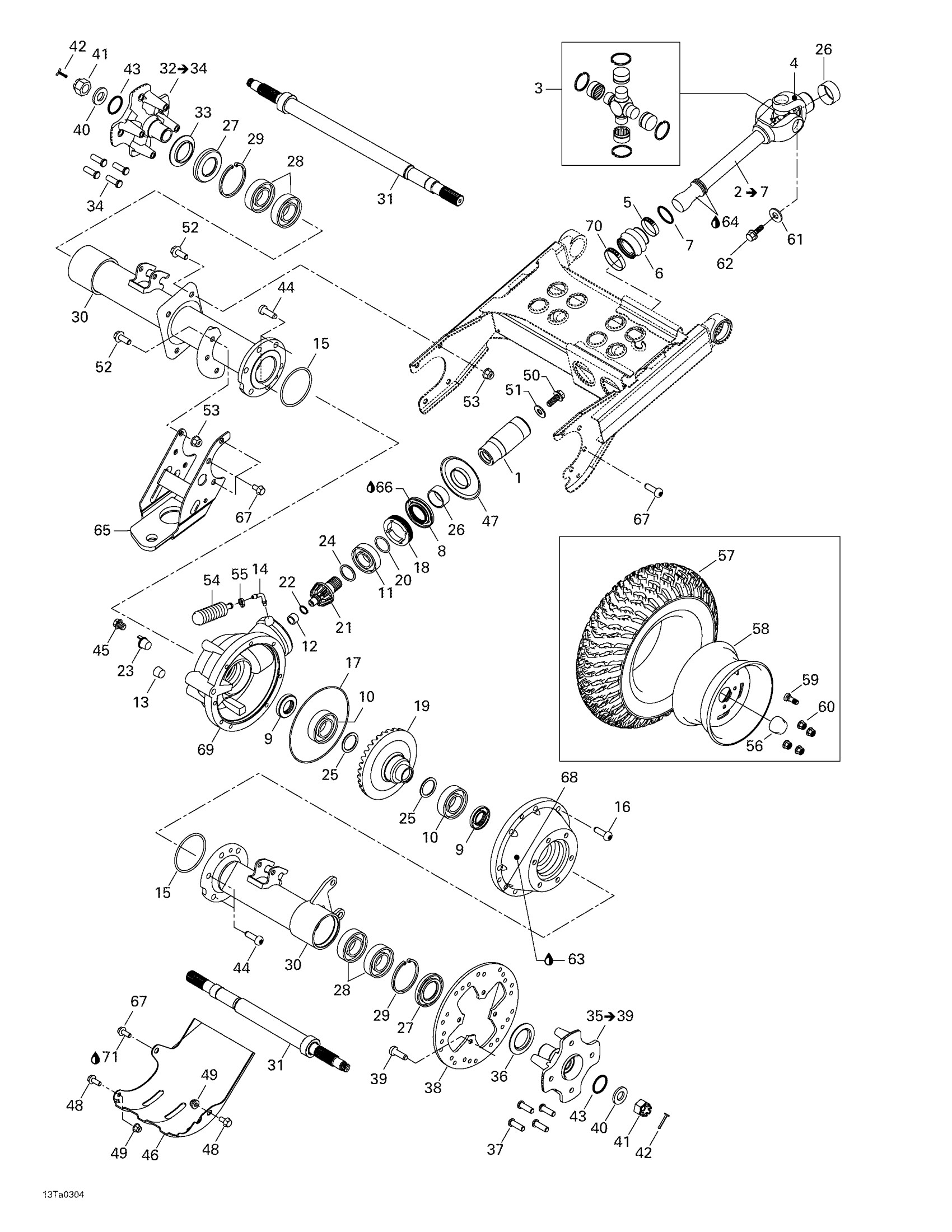

Can-Am Traxter Autoshift XT, 2003 05- Drive System, Rear Diagram

#

Description
Price

1

Front Bushing Shaft Kit | 4X4

703500678

$114.99

2

REAR DRIVE AXLE ASS'Y - Call your local BRP dealership | Includes 3 to 9

705500405

Unavailable

3

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

4

Fixed Yoke Joint

715900116

$59.49

5

Collar | 4X4

705400148

Unavailable

6

Protector

705400147

Unavailable

7

SEALING RING - Call your local BRP dealership

705500315

Unavailable

8

Oil Seal

705500248

Unavailable

9

Gasket | 4X4

705401618

$18.49

10

Ball Bearing | 4X4

705401606

$51.99

11

Ball Bearing | 4X4

705500260

$31.99

12

Needle Bearing | 4X4

705500261

$19.99

13

Drain Plug | 4X4

705500894

$11.49

14

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

15

O-RING - Call your local BRP dealership

705500263

Unavailable

16

Screw | 4X4

705401601

$10.49

17

Seal | 4X4

705500265

$18.76

18

Nut | 4X4

705401603

$35.99

19

Crown Gear

705500223

Unavailable

20

O-Ring | 4X4

705500267

$7.65

21

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

22

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

23

Protector Plug

705500246

Unavailable

24

Pinion Gear Shim 1.67 mm

705502061

$18.99

25

Shim | 4X4

705401604

$57.99

26

Wear Ring | 4X4

705400036

$26.49

27

OIL SEAL - Call your local BRP dealership

705500099

Unavailable

28

BALL BEARING - Call your local BRP dealership

705500251

Unavailable

29

RETAINING RING - Call your local BRP dealership

705500249

Unavailable

30

RH AXLE TUBE - Call your local BRP dealership

705500250

Unavailable

LH AXLE TUBE - Call your local BRP dealership

705500182

Unavailable

31

RH AXLE - Call your local BRP dealership

705500183

Unavailable

LH AXLE - Call your local BRP dealership

705500184

Unavailable

32

Wheel Hub Ass'y | Includes 50 - 52.

705500254

Unavailable

33

WEAR RING - Call your local BRP dealership

705500100

Unavailable

34

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

35

Rear wheel hub | Includes 35 - 39.

705500256

Unavailable

36

WEAR RING - Call your local BRP dealership

705500100

Unavailable

37

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

38

Brake disc

705600167

Unavailable

39

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

40

WASHER - Call your local BRP dealership

250200019

Unavailable

41

Hex. Flange Castellated Nut M18

232291413

$7.98

42

Cotter Pin

250400036

$2.11

43

O-RING - Call your local BRP dealership

705500271

Unavailable

44

Torx Screw M10 X 30

250000085

Unavailable

45

Fill level plug

705500228

Unavailable

46

Differential Protector, Black

705500185

Unavailable

47

JOINT PROTECTOR - Call your local BRP dealership

705500214

Unavailable

48

Hex. Flange Screw M8 X 16

207681644

$4.12

49

Hex. Flange Nut M8

233181414

$1.15

50

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

51

Flat Washer M10 | 4X4

250200014

$1.49

52

Hex. Flange Screw M10 X 25

207602544

$1.69

53

Hex. Flange Elastic Nut M10

233201414

$1.58

54

Rubber Bellow | 4X4

705400552

$6.14

55

Tie Wrap 94 mm | 4X4

293750001

$1.03

56

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

57

Rear Tire

705500314

Unavailable

58

Rear Rim, Grey

705500239

Unavailable

59

Rim Valve With Cap

705400193

$8.69

60

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

61

Washer

211200041

$3.17

62

HEX. FLANGED SCREW M8 X 16 - Call your local BRP dealership

207681686

Unavailable

63

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

64

Graisse *Grease

293550062

$15.99

65

Trailer Hook, Black

705500244

Unavailable

66

Synthetic Grease, 400 G

293550010

Unavailable

67

Torx Screw M10 X 30

250000085

Unavailable

68

Rear Cover

705500175

Unavailable

69

Differential Carrier

705500233

Unavailable

70

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

71

Loctite 609, 10 ml

413703100

$26.99
