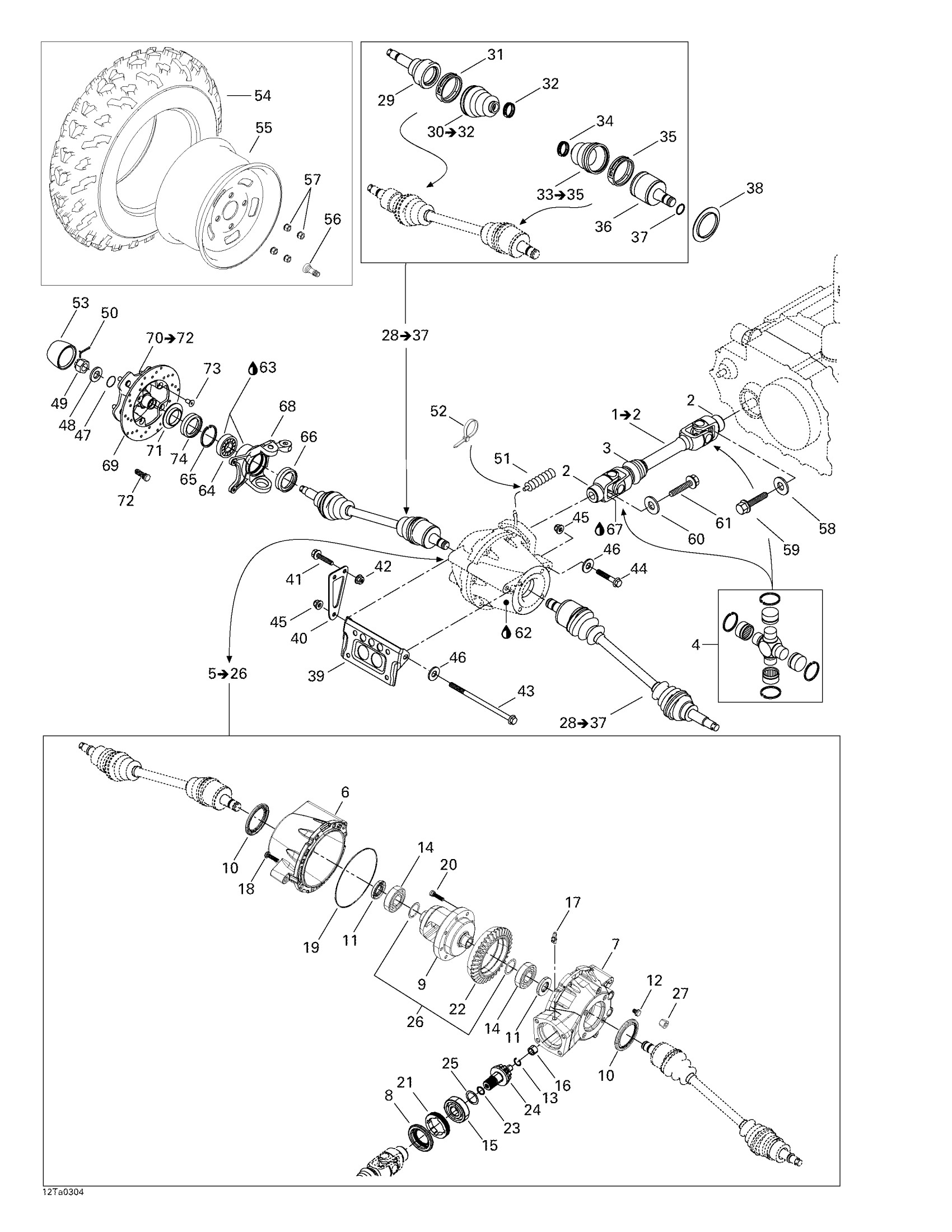

Can-Am Traxter Autoshift XT, 2003 05- Drive System, Front Diagram

#

Description
Price

1

Front Propeller Shaft Kit

703500001

Unavailable

2

Wear Ring | 4X4

705400036

$26.49

3

PROTECTOR - Call your local BRP dealership

705400051

Unavailable

4

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Front Cover

705400099

Unavailable

7

Differential Carrier

705500177

Unavailable

8

Oil Seal | 4X4

705401481

$19.49

9

DIFFERENTIAL - Call your local BRP dealership

705400404

Unavailable

10

OIL SEAL - Call your local BRP dealership

705400019

Unavailable

11

Gasket | 4X4

705401618

$18.49

12

Drain Plug | 4X4

705500894

$11.49

13

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

14

Ball Bearing | 4X4

705401606

$51.99

15

Ball Bearing | 4X4

705500260

$31.99

16

Needle Bearing | 4X4

705500261

$19.99

17

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

18

Screw | 4X4

705401601

$10.49

19

Seal | 4X4

705500265

$18.76

20

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

Unavailable

21

Nut | 4X4

705401603

$35.99

22

Crown Gear

705400103

Unavailable

23

O-Ring | 4X4

705500267

$7.65

24

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

25

Pinion Gear Shim 1.67 mm

705502061

$18.99

26

Shim | 4X4

705401604

$57.99

27

Fill level plug

705500228

Unavailable

28

RH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400125

Unavailable

LH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400124

Unavailable

29

CV JOINT - Call your local BRP dealership

705400093

Unavailable

30

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$42.49

31

Clamp | 4X4

705400180

Unavailable

32

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

33

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$42.49

34

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

35

Clamp | 4X4

705400181

Unavailable

36

RH Plunging Joint

705400128

Unavailable

LH Plunging Joint

705400129

Unavailable

37

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

38

Wear Ring

705400016

Unavailable

39

Bracket (Differential)

705400068

Unavailable

40

RH Diffential Front Bracket

705400069

Unavailable

41

Hex. Flange Screw M8 X 20

207682044

$1.15

42

Hex. Flange Elastic Nut M8

233281414

$1.47

43

Flange Screw M10 X 200, Scotch Grip

250000024

Unavailable

44

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership | 7413/7414. 7415/7416. 7417/7418.

207506044

Unavailable

45

Hex. Flange Nut M10

233101414

$4.97

46

Flat Washer

250200003

Unavailable

47

O-RING - Call your local BRP dealership

705500271

Unavailable

48

WASHER - Call your local BRP dealership

250200019

Unavailable

49

Hex. Flange Castellated Nut M18

232291413

$7.98

50

Cotter Pin

250400036

$2.11

51

Rubber Bellow | 4X4

705400552

$6.14

52

Tie Wrap 94 mm | 4X4

293750001

$1.03

53

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

54

Tire 205 X 80 R12

705402890

$153.49

55

Front Rim

705400010

Unavailable

56

Rim Valve With Cap

705400193

$8.69

57

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

58

Washer

211200041

$3.17

59

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

60

Flat Washer M10 | 4X4

250200014

$1.49

61

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

62

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

63

Synthetic Grease, 400 G

293550010

Unavailable

64

Ball Bearing

293350150

$52.99

65

Circlip

293370019

$4.68

66

Oil Seal | 4X4

293250090

$24.49

67

Loctite 271, 10 ml

293800005

$26.99

68

RH Knuckle

709400095

Unavailable

LH KNUCKLE - Call your local BRP dealership

709400097

Unavailable

69

Brake disc 205 mm

705600168

Unavailable

70

Wheel Hub Ass'y | Includes 50 - 52.

705500254

Unavailable

71

WEAR RING - Call your local BRP dealership

705500100

Unavailable

72

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

73

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

74

OIL SEAL - Call your local BRP dealership

705500099

Unavailable
