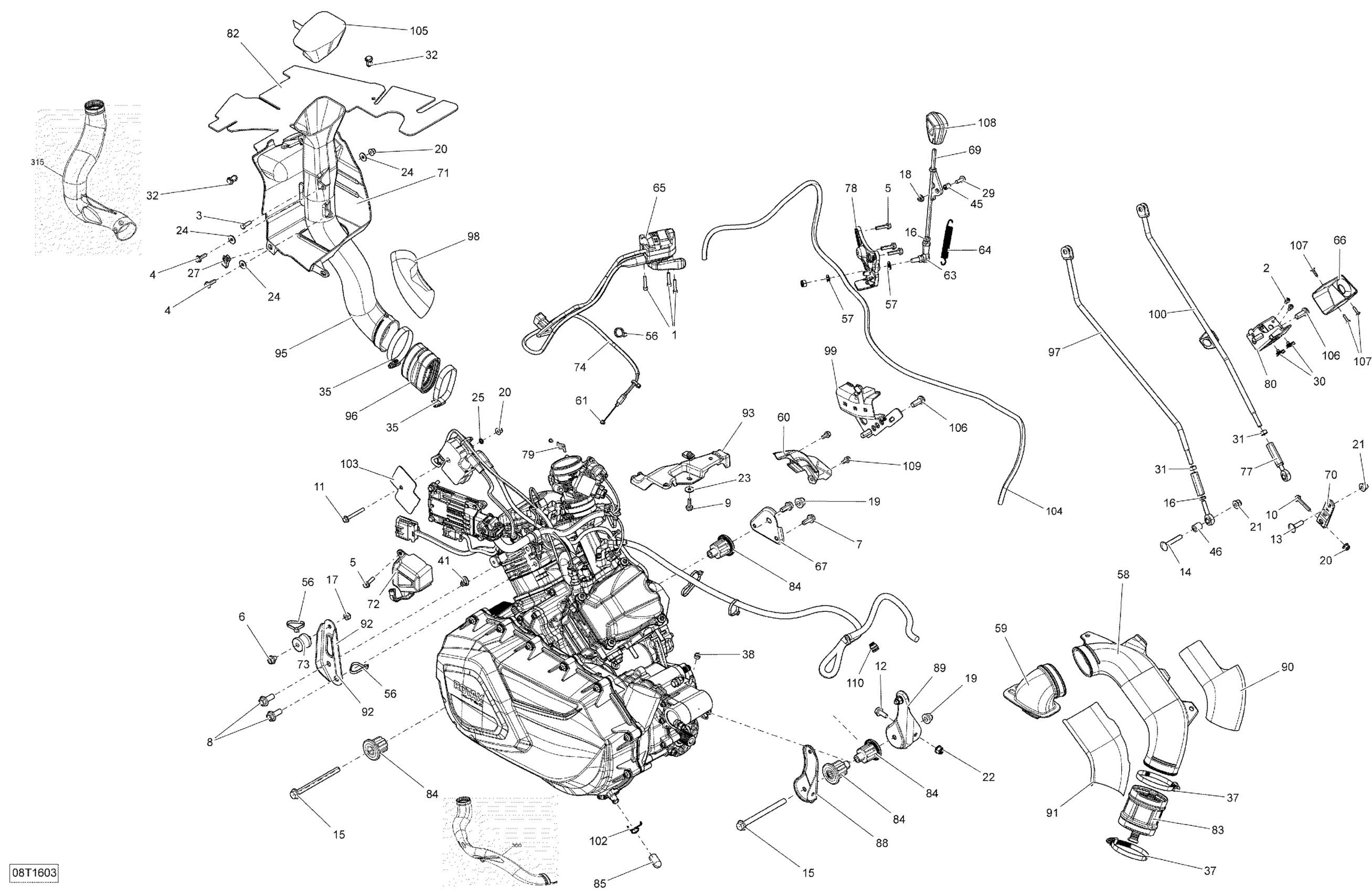

Can-Am Renegade, 2016 01- Engine and Engine Support Diagram

#

Description
Price

1

Socket Head Screw M5 X 25

205052588

$1.90

2

Socket Head Screw M5 X 10

205951046

$2.43

3

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

4

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

5

Hex. Flange Screw M6 X 25

207562544

$1.69

6

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

7

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

8

Hex. Flange Screw M10 X 25

207602544

$1.69

9

Hex. Flange Screw M6 X 20

207662044

$2.00

10

Hex. Flange Screw M6 X 35

207663544

$0.90

11

Hex. Flange Screw M6 X 50

207665044

$4.12

12

Hex. Flange Screw M8 X 20

207682046

$1.90

13

Carriage Bolt M8 X 30

207783044

$2.11

14

Carriage Bolt M8 X 50 | DS 650 X

207785044

$7.41

15

Hex. Flange Screw M10 X 125

230602546

$7.41

16

Hex. Jam Nut M8

232180600

$0.67

17

Hex. Elastic Stop Nut M8

232581414

$0.56

18

Hex. Flange Nut M6

233161414

$2.11

19

Hex. Flange Elastic Nut M10

233201436

$2.11

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

Hex. Elastic Flange Nut M8

233281416

$1.48

23

Flat Washer 6 mm

234062410

$0.77

24

Flat Washer M6, Stainless

234062600

$0.77

25

External Serrated Lock Washer 6 mm

234461608

$1.15

27

Panel Nut M6 X 1.0

250100198

$2.11

28

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

29

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

30

Extruded Panel Nut M4 X 0.7

250100143

$8.49

31

Hex. Nut M8, LH Threads

250100144

$2.00

32

Tuflok Plastic Rivet

293150230

$1.47

33

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

35

Norma Clamp

293650091

$11.12

37

Norma Gear Clamp

293650118

$13.16

38

Clamp, Oetiker

293650195

$1.09

41

Tie Wrap 142 mm

293750002

$1.25

45

Bushing

293900019

$7.73

46

Bushing

293900106

$4.55

56

Tie-Rap 180 mm

414115200

$0.11

57

Washer

506151252

$3.17

58

Air Outlet

706600019

$37.99

59

CVT Cooling Duct Out

706600400

$54.99

60

Cover OPS

707000410

$13.24

61

Cable Guide

707000434

$11.60

63

RH Ball Joint

707001959

$36.99

64

Spring

707000577

$10.99

65

Throttle Handle | 4X4

707000595

$214.99

66

Cover Lock | Europe

707000667

$13.24

67

Engine Support

707003319

$10.99

69

Shift Arm | Except Europe

707000840

$16.87

70

Lever

707000911

$20.49

71

Water Deflector

707000928

$18.49

72

Cover

707000945

$6.67

73

Rubber Isolator

707000949

$11.49

74

Throttle Cable

707000955

$13.24

77

Ball Joint Ass'y | Includes 55 to 56

707000966

$36.99

78

Lever Support

707003054

$6.67

79

SPEED LIMITER - Call your local BRP dealership | Engine 570-850-1000R , Europe Model

707001927

Unavailable

80

FIXING PLATE - Call your local BRP dealership | Europe

707001009

Unavailable

80

FIXING PLATE - Call your local BRP dealership | Europe

707001354

Unavailable

82

Upper Water Deflector

707001041

$22.49

83

CVT Air Outlet Adaptor

707001168

$15.99

84

Vibration Damper

707001169

$42.99

85

Plug

707001185

$1.15

88

LH Rear Engine Bracket

707001191

$10.99

88

LH Rear Engine Bracket

707001193

$16.99

89

RH Rear Engine Bracket

707001192

$10.99

89

RH Rear Engine Bracket

707001194

$16.99

90

Heat Shield

707001205

$10.49

91

Heat Shield

707001206

$10.49

92

Upper Engine Support

707003326

$13.99

92

Upper Engine Bracket

707001256

$13.49

93

Air Outlet Support

707001262

$9.89

95

CVT Air Inlet

707002073

$41.49

96

Flexibale Adaptor

707002585

$10.99

97

Shifter Rod

707002068

$33.99

97

Shifter Rod

707002085

$33.99

98

Heat Shield

707001654

$2.59

99

Upper Cable Support

707001955

$10.49

100

SHIFTER ROD - Call your local BRP dealership | Europe

707002074

Unavailable

100

SHIFTER ROD - Call your local BRP dealership | Europe

707002075

$29.99

102

Retainer Clip

707800506

$12.63

103

Insulator Pad

710000073

$11.12

104

Polyurethane Hose 10000Mm Long

219704410

$56.99

105

CVT Filter

707001786

$19.49

106

Screw Socket M10 X 25 | Europe

205402556

$3.91

107

Torx Screw M4 X 16

250000750

$1.68

108

Lever Trim

707003211

$8.49

109

Hex. Flange Screw M6 X 12

210261250

$1.90

110

Tie-Rap Clip

710002896

$4.39

300

CVT Air Outlet | Package XMR

707001780

$114.99

315

Inferior CVT Air Outlet | Package XMR

707001781

$109.99
