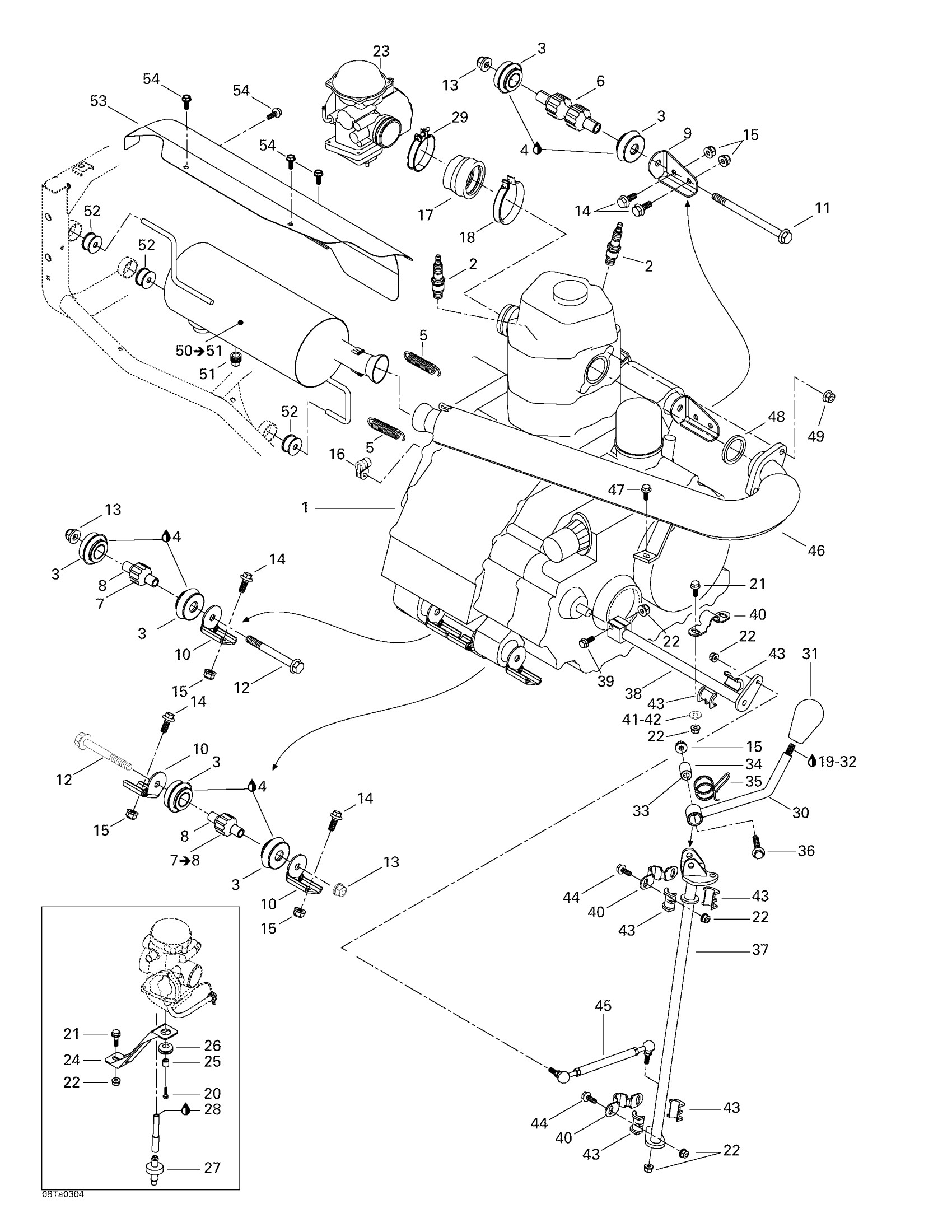

Can-Am Traxter Autoshift XT, 2003 01- Exhaust System Diagram

#

Description
Price

1

Rotax 4 Strokes Engine «511» | Includes 1 to 7

707000041

Unavailable

2

Spark Plug, NGK/DR8EA

707000008

$4.23

3

Anti-Vibration Mount

707000094

Unavailable

4

Synthetic Grease, 400 G

293550010

Unavailable

5

Spring

415107100

$6.35

6

ENGINE SUPPORT BUSHING - Call your local BRP dealership

707000019

Unavailable

7

Support Bushing | Includes 10 to 11

707000030

Unavailable

8

RH LOWER BUSHING - Call your local BRP dealership

707000004

Unavailable

9

Front Engine Bracket, Black

707000082

Unavailable

10

Engine Bracket

705200197

Unavailable

11

Hex. Flange Screw M10 X 140

230604044

$5.29

12

HEX. FLANGED SCREW M10 X 95 - Call your local BRP dealership

207609544

Unavailable

13

Hex. Flange Elastic Nut M10

233201414

$1.58

14

Hex. Flange Screw M8 X 20

207682044

$1.15

15

Hex. Flange Elastic Nut M8

233281414

$1.47

16

Hose Retainer 13 mm

705600232

$11.11

17

CARBURATOR ADAPTOR - Call your local BRP dealership

707000247

Unavailable

18

Clamp

512059062

Unavailable

19

Loctite 243, 10 ml

293800060

$21.49

20

Hex. Screw M4 X 16, Scotch Grip

207341644

Unavailable

21

Hex. Flange Screw M6 X 20

207662044

$2.00

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

Carburetor BSR33-28 | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

707200158

Unavailable

24

Carburator Support

707200159

Unavailable

25

Spacer

707000181

Unavailable

26

Grommet

709000582

$4.69

27

Check Valve

275500398

$10.99

28

Glue Tube, Loctite 454, 20 G

413708300

$60.99

29

Gear Clamp Gemi

293650094

Unavailable

30

LEVER ASS'Y - Call your local BRP dealership

707000010

Unavailable

31

LEVER BUTTON - Call your local BRP dealership

705500022

Unavailable

32

Was 293800041 Loctite Primer 7649

219704458

$39.99

33

BUSHING - Call your local BRP dealership

705500150

Unavailable

34

Adjuster Bushing

705500193

Unavailable

35

LEVER SPRING - Call your local BRP dealership

705500024

Unavailable

36

Hex. Flange Screw M8 X 50

207685044

$1.69

37

Upper Tube, Black

705500358

Unavailable

38

Lower Tube

705500135

Unavailable

39

Hex. Flange Screw M6 X 35

207663544

$0.90

40

RETAINER CLAMP - Call your local BRP dealership

705500041

Unavailable

41

Shim 1.0 mm

707000080

Unavailable

42

Shim 2.0 mm

707000081

Unavailable

43

Half Ring

705500033

$8.29

44

Hex. Flange Screw M6 X 16

207661644

$0.74

45

Tie Rod Ass'y

707000068

Unavailable

46

Tuned Pipe

707600062

Unavailable

47

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

48

GASKET - Call your local BRP dealership

707600003

Unavailable

49

Hex. Flange Nut M8

233081416

$1.15

50

Muffler | Includes 5 To 6

707600080

Unavailable

51

Drain Plug

250500003

Unavailable

52

Anti-Vibration Rubber

707600702

$8.57

53

Heat Shield

707600076

Unavailable

54

Hex. Forming Screw M6 X 10

210261050

$1.69
