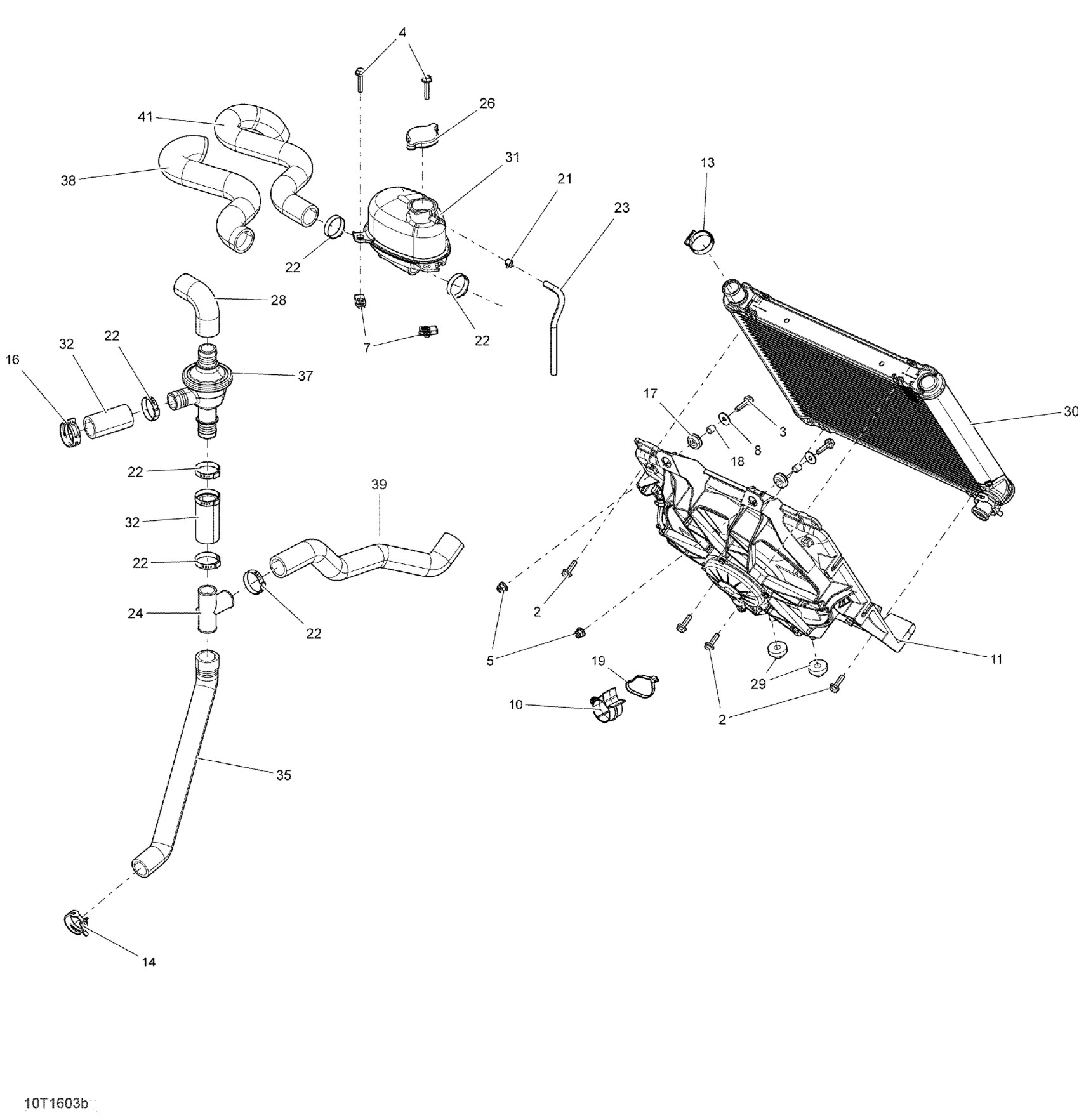

Can-Am Renegade, 2016 01- Cooling System - XMR Diagram

#

Description
Price

2

Hex. Flange Screw M6 X 20

207662034

$2.11

3

Hex. Flange Screw M6 X 25

207662534

$2.11

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

5

Flange Elastic Nut M6

233261434

$4.44

7

Panel Nut M6 X 1.0

250100198

$2.11

8

Flat Washer

250200082

$0.42

10

Retainer

275500590

$9.69

11

Fan Ass'y

709200564

$244.99

13

Norma Gear Clamp

293650098

$4.44

14

Norma Spring Clamp

293650108

$4.12

16

Norma Spring Clamp

293650166

$4.44

17

Grommet

709000582

$4.69

18

Bushing

293900105

$7.65

19

Tie-Rap 180 mm

414115200

$0.11

21

Spring Clamp

414554800

$0.88

22

Gear Clamp

509000162

$7.29

23

Polyurethane Hose 10000Mm Long

219704410

$56.99

24

T-Fitting

509000219

$15.89

26

Radiator Pressure Cap

709200207

$25.49

28

THERMOSTAT INLET HOSE - Call your local BRP dealership

709200280

Unavailable

29

Grommet

709200285

$9.69

30

Radiator

709200286

$476.99

31

Coolant Tank

709200297

$55.99

32

Hose

709200299

$8.60

35

Hose

709200392

$17.57

37

Thermostat

709200406

$98.99

38

Tubing 35 MM 1000MM Long

219704428

$10.99

39

Radiator Outlet Hose

709200390

$15.36

41

Inlet Hose

709200575

$33.99
