Description

Price

2

Hex. Screw M8 X 60

207086046

$2.85

7

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

10

Hex. Flange Screw M8 X 20

207682044

$1.15

11

Hex. Flange Screw M8 X 25

207682544

$1.35

12

Hex. Flange Screw M8 X 35

207683544

$1.69

14

Cotter Pin

211400013

$0.37

14

Cotter Pin

250400034

$2.11

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Hex. Elastic Flange Nut M8

233281416

$1.48

21

Conical Spring Washer M8

234281474

$1.48

23

Hex. Flange Elastic Nut M12

250000047

$1.90

26

Nut M12

250100099

$2.09

27

Hardened Washer

706200281

$2.85

29

Seal

293250177

$7.29

30

O-Ring

293300068

$7.65

37

Tie-Rap 180 mm

414115200

$0.11

41

Ball Bearing | Package-STD

503190396

$14.30

46

Hardened Washer

706200281

$2.85

49

LH Mirror | Europe

709400406

$32.99

50

RH Mirror | Europe

709400407

$47.49

51

Cover

709400939

$24.99

53

End Piece

709400449

$8.49

54

RH Ball Joint

709402302

$36.99

56

Handle Grip

709400493

$14.83

59

Stiffner

709400509

$4.69

60

Black, Handle Bar

709401240

$69.99

65

Bellows

709400674

$18.99

66

Spherical Half Bushing

709400783

$7.65

67

Spherical Half Bushing

709400783

$7.65

67

Spherical Half Bushing | Package-STD

709401370

$7.23

68

Upper Column Attachment

709400827

$1.09

69

Power Steering Module Bracket

709400848

$16.49

70

Steering Support

709400919

$22.49

72

RH STEERING BRACKET - Call your local BRP dealership

709400994

Unavailable

73

HEAT DEFLECTOR - Call your local BRP dealership

709401005

Unavailable

75

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

75

Rod-Tie Ass'y | Incl 36

703501037

$110.99

76

LH Ball Joint

709402303

$36.99

82

Column Attachment

709401428

$38.99

83

Pitman Arm | Package-STD

709401542

$28.99

83

Pitman Kit | Includes 3 to 5

703500785

$159.99

83

Pitman Kit

703500812

$159.99

86

Black, Upper Main Tube | Package-STD

709401545

$149.99

86

Kit Tube-Main.

703501137

$184.99

89

Power Steering

709401608

$1,010.49

90

Handle Guard Ass'y, XT

703100352

$98.49

90a

Handle Bar Protector | XT

709400822

$90.99

91

DPS Decal

704902966

$14.49

92

Hex. Flange Screw K40 X 25

241142560

$2.64

93

Flat Washer | XT

211200035

$0.55

94

U-Clamp | XT

517303264

$11.99

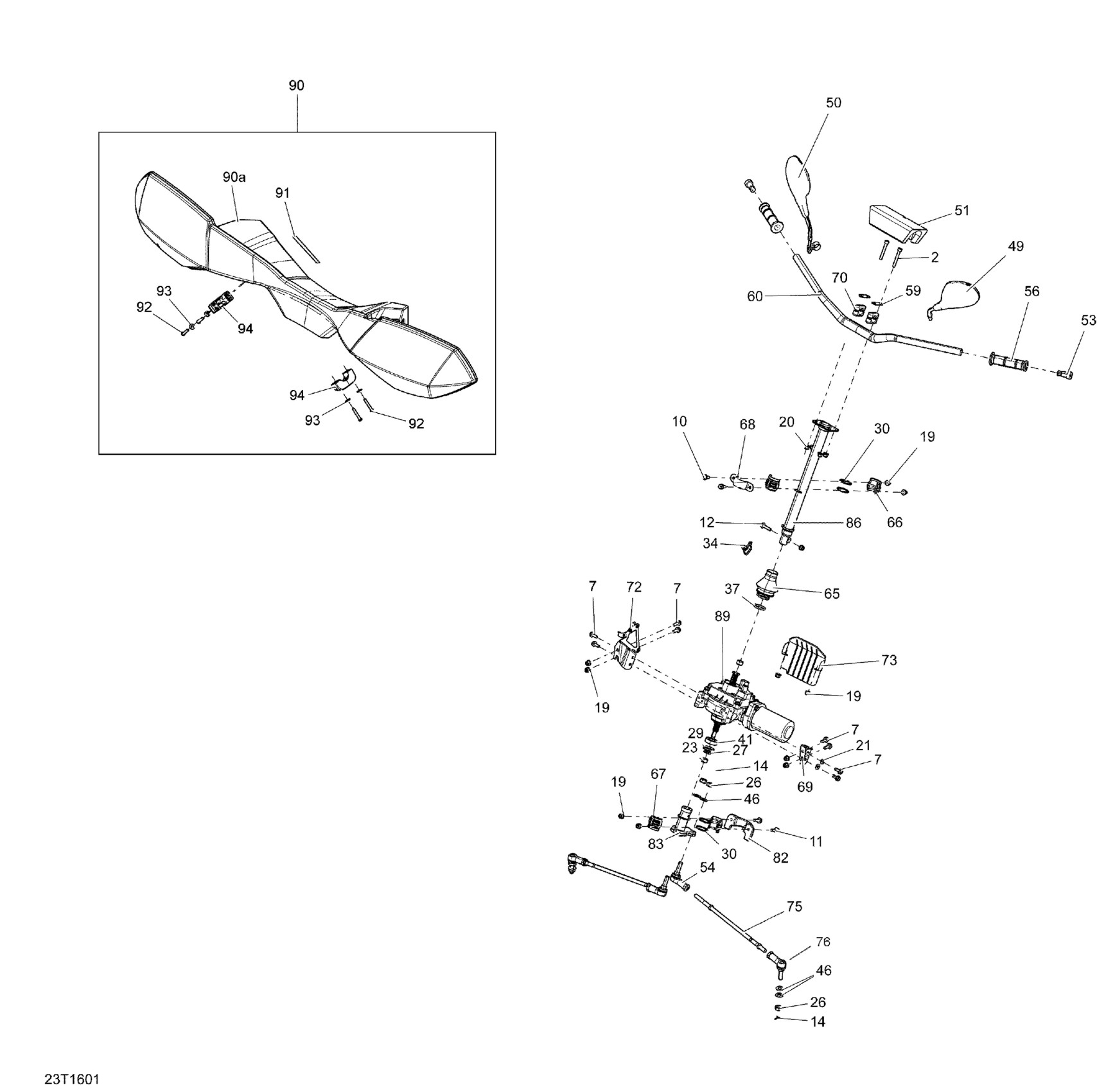

Can-Am 005 - Outlander L - 570 EFI - XMR Package 0003MGA00 0003MGB00 07- Steering - All Models Diagram

Hex. Screw M8 X 60

Hex. Flange Screw M8 X 20, Scotch Grip

Hex. Flange Screw M8 X 20

Hex. Flange Screw M8 X 25

Hex. Flange Screw M8 X 35

Cotter Pin

Cotter Pin

Hex. Flange Elastic Nut M8

Hex. Elastic Flange Nut M8

Conical Spring Washer M8

Hex. Flange Elastic Nut M12

Nut M12

Hardened Washer

Seal

O-Ring

Tie-Rap 180 mm

Ball Bearing | Package-STD

Hardened Washer

LH Mirror | Europe

RH Mirror | Europe

Cover

End Piece

RH Ball Joint

Handle Grip

Stiffner

Black, Handle Bar

Bellows

Spherical Half Bushing

Spherical Half Bushing

Spherical Half Bushing | Package-STD

Upper Column Attachment

Power Steering Module Bracket

Steering Support

RH STEERING BRACKET - Call your local BRP dealership

HEAT DEFLECTOR - Call your local BRP dealership

Tie Rod Ass`y | Includes 15 to 17

Rod-Tie Ass'y | Incl 36

LH Ball Joint

Column Attachment

Pitman Arm | Package-STD

Pitman Kit | Includes 3 to 5

Pitman Kit

Black, Upper Main Tube | Package-STD

Kit Tube-Main.

Power Steering

Handle Guard Ass'y, XT

Handle Bar Protector | XT

DPS Decal

Hex. Flange Screw K40 X 25

Flat Washer | XT

U-Clamp | XT
