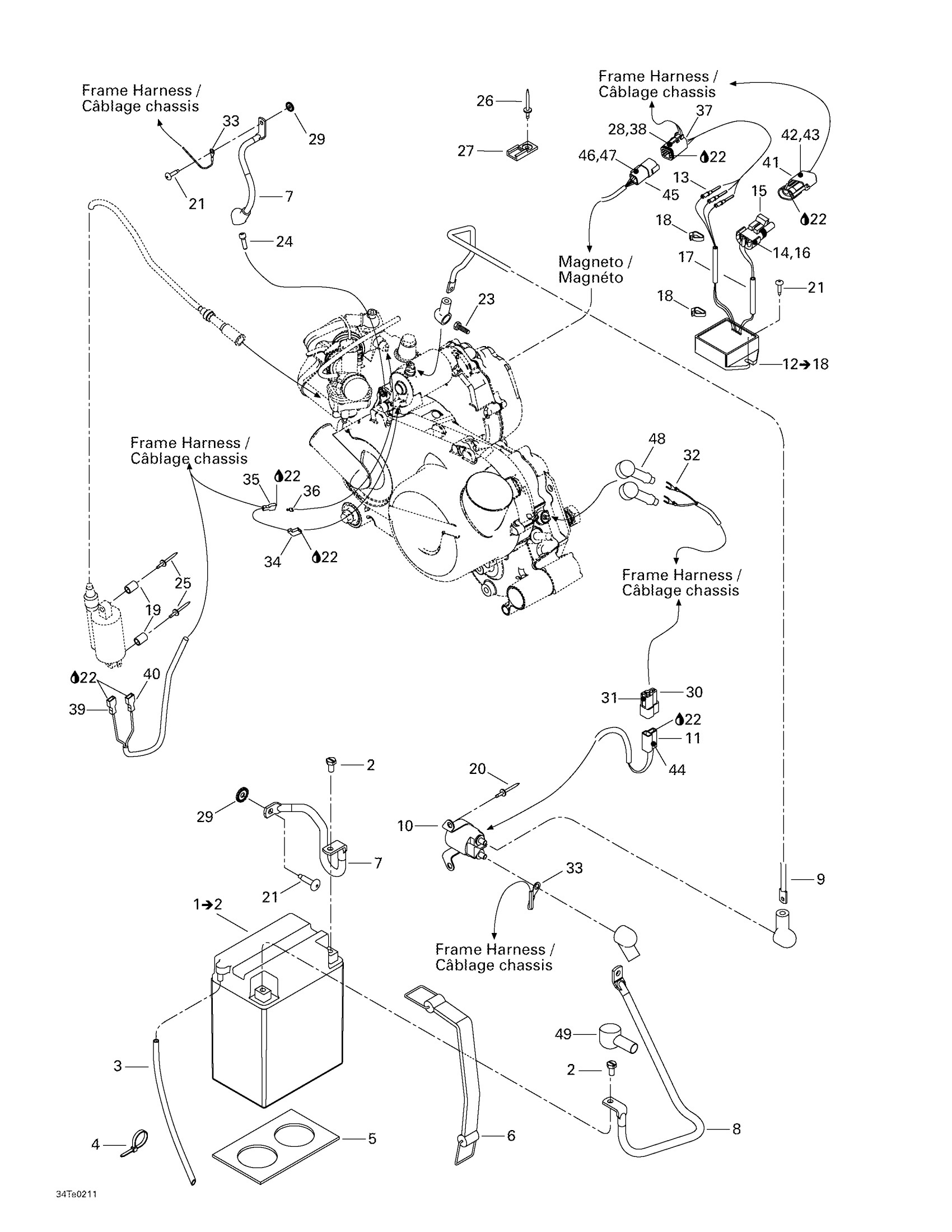

Can-Am Rally, 2003 10- Battery And Electrical Accessories Diagram

#

Description
Price

1

Battery, 13 Amperes

715000194

$89.99

2

Battery Fastener Kit

703500179

Unavailable

3

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

4

Tie-Rap 180 mm

414115200

$0.11

5

RUBBER PROTECTOR - Call your local BRP dealership

710000241

Unavailable

6

Battery Strap

515176044

$18.49

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

POSITIVE CABLE - Call your local BRP dealership

710000232

Unavailable

10

Starter Relay

515176011

$62.49

11

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

12

Voltage regulator | Includes 12 - 18.

710000234

Unavailable

13

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

14

Female Terminal

409007300

$0.45

15

Male Connector, 2 Circuits

278000220

$15.49

16

Wire Seal

278000218

$4.39

17

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

18

Tie Wrap 94 mm | 4X4

293750001

$1.03

19

Spacer

293900046

Unavailable

20

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

21

Torx Screw M6 X 25 | XT Models

250000728

$4.44

22

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

23

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

24

Socket Head Screw M6 X 20

205062044

$1.26

25

Pop Rivet 3/16”

293150093

$1.29

26

Pop Rivet 3/16"

390402200

$0.35

27

Clip

270000141

$11.49

28

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

29

External Serrated Lock Washer 6 mm

234461608

$1.15

30

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

31

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

32

Spade Terminal

710000289

Unavailable

33

Open Barrel Terminal

278001392

$4.79

34

Female Terminal

409010300

$4.39

35

RH High Light Support

710001115

$5.29

36

FEMALE TERMINAL - Call your local BRP dealership

710000114

Unavailable

37

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

38

Female Terminal

278000632

$2.09

39

Female Terminal

409010700

$5.39

40

Female Terminal

710000082

$7.69

41

Female Housing, 2 Circuits

278000217

$9.59

42

Male Terminal

409004300

$5.61

43

Wire Seal

278000218

$4.39

44

Female Terminal

561503100

$2.41

45

Male Terminal Housing, 6 Circuits

710001539

$19.99

46

Male Terminal

278000631

$4.39

47

Female Lock, 6 Circuits

278000735

$3.19

48

Cap

710000352

Unavailable

49

Protector Cap

710000319

Unavailable
