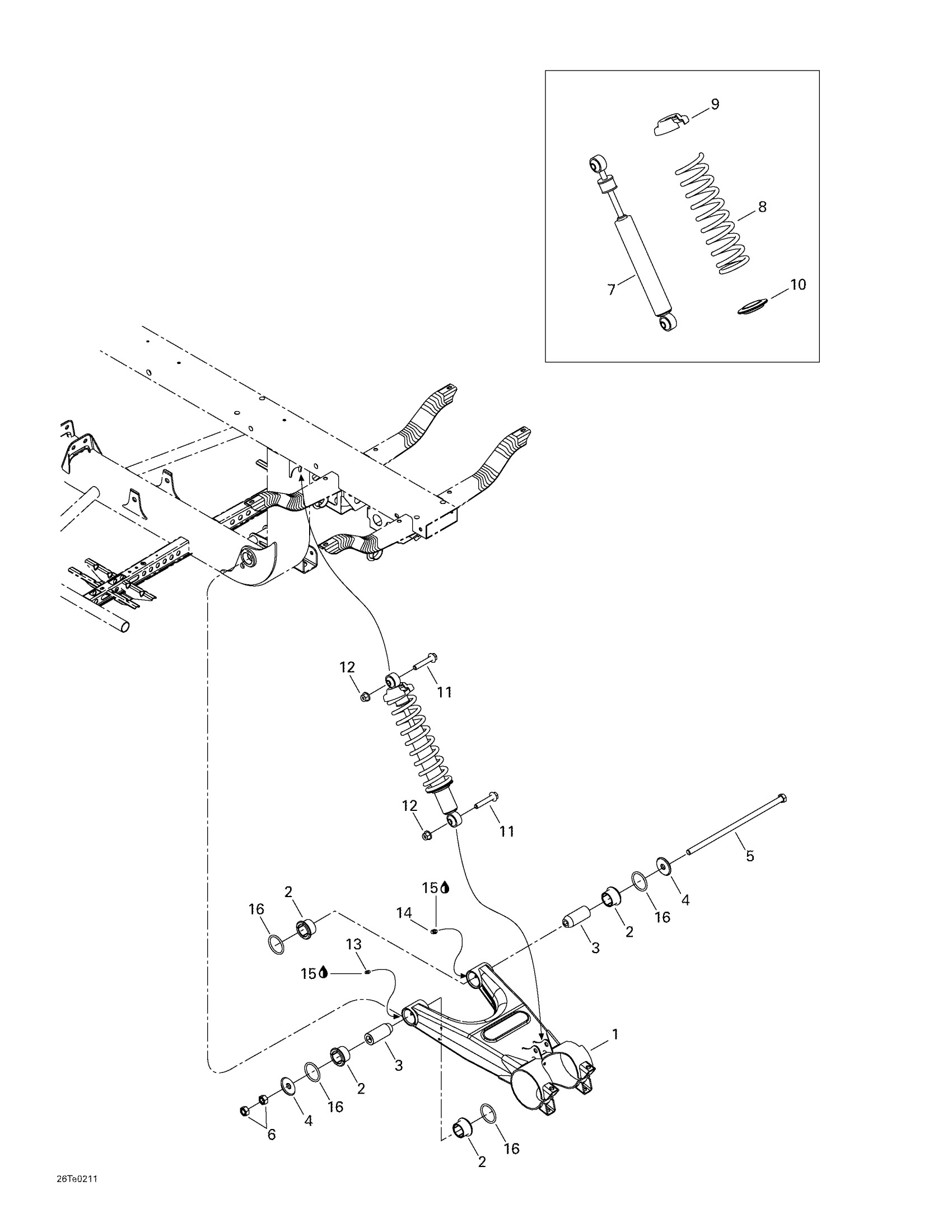

Can-Am Rally, 2003 08- Rear Suspension Diagram

#

Description
Price

1

Swing Arm

706000145

Unavailable

2

Cushion

706000158

Unavailable

3

Inner Bushing

706000138

Unavailable

4

Thrust Washer

706000139

Unavailable

5

HEX. CAP SCREW M12 X 300 - Call your local BRP dealership

250000066

Unavailable

6

HEX. NUT M12 - Call your local BRP dealership

232021486

Unavailable

7

REAR SHOCK - Call your local BRP dealership

706000140

Unavailable

8

Full Moon Rear Spring

706000154

Unavailable

9

Spring Stopper

706200881

$12.99

10

Spring Seat

706000197

Unavailable

11

Hex. Flange Screw M10 X 55

207605544

$3.38

12

Hex. Flange Elastic Nut M10

233201414

$1.58

13

Grease Fitting

408200700

$3.49

14

GREASE FITTING - Call your local BRP dealership

408200600

Unavailable

15

Synthetic Grease, 400 G

293550010

Unavailable

16

O-RING - Call your local BRP dealership

293300087

Unavailable
