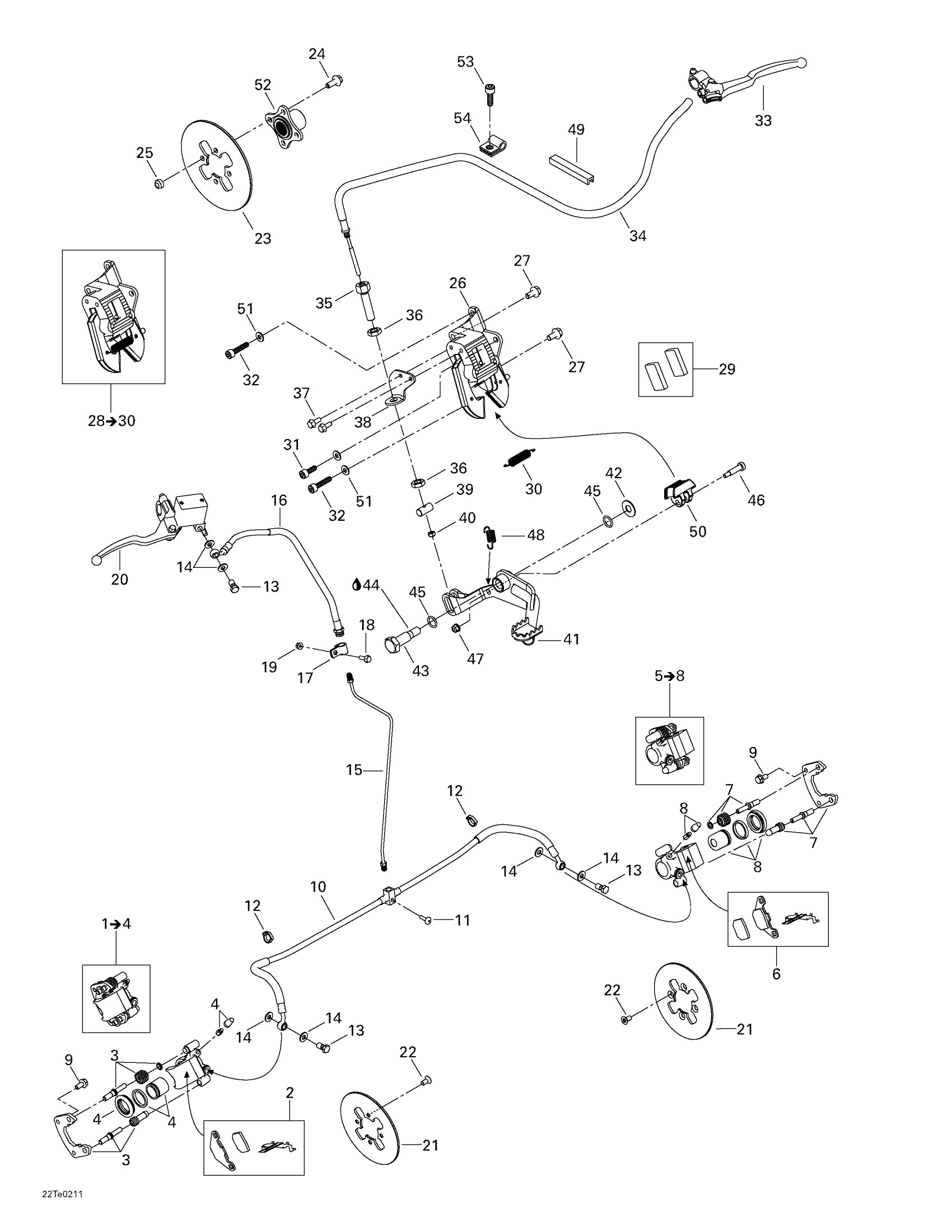

Can-Am Rally, 2003 06- Hydraulic Brake Diagram

#

Description
Price

1

RH Caliper Ass'y | Includes 1 - 4.

705600217

Unavailable

2

Brake Pad Kit

705600285

Unavailable

3

BOOT KIT - Call your local BRP dealership

705600286

Unavailable

4

PISTON SET - Call your local BRP dealership

705600287

Unavailable

5

LH Caliper Ass'y | Includes 5 - 8.

705600218

Unavailable

6

Brake Pad Kit

705600285

Unavailable

7

BOOT KIT - Call your local BRP dealership

705600286

Unavailable

8

PISTON SET - Call your local BRP dealership

705600287

Unavailable

9

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

10

Flexible Hose

705600221

Unavailable

11

Torx Screw M6 X 25 | XT Models

250000728

$4.44

12

Tie-Rap 180 mm

414115200

$0.11

13

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

14

Washer

414920600

$1.90

15

Vertical Tube

705600220

Unavailable

16

Brake Handle Hose

705600231

Unavailable

17

Open Clamp

705600040

$13.24

18

Hex. Flange Screw M6 X 20

207662044

$2.00

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Master Cylinder

705600219

Unavailable

21

FRONT BRAKE DISC - Call your local BRP dealership

705600223

Unavailable

22

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

23

Brake Disc

705600195

Unavailable

24

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

25

Hex. Flange Elastic Nut M8

233281414

$1.47

26

Caliper Support

705600205

Unavailable

27

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

28

Rear Caliper Ass'y | Includes 28 - 30.

705600313

Unavailable

29

BRAKE PAD KIT - Call your local BRP dealership

705600213

Unavailable

30

Spring

705600222

Unavailable

31

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

32

Socket Head Screw M8 X 35, Scotch Grip

205583544

$2.64

33

Brake Handle

705600273

Unavailable

34

Brake Cable

705600274

Unavailable

35

Adjuster Screw

705000559

Unavailable

36

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

37

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

38

Cable Support

705600278

Unavailable

39

Cable Barrel

705600293

Unavailable

40

Elastic Stop Nut M6

232561414

$0.55

41

Brake Pedal

705600214

Unavailable

42

Washer

414823700

Unavailable

43

PIVOT - Call your local BRP dealership

705600201

Unavailable

44

Synthetic Grease, 400 G

293550010

Unavailable

45

O-RING - Call your local BRP dealership

293300053

Unavailable

46

Socket Screw M6 x 25

250000112

Unavailable

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

48

BRAKE PEDAL SPRING - Call your local BRP dealership

705600288

Unavailable

49

Was 271000110 Protection Trim

219704353

$15.99

50

Slider

705600202

Unavailable

51

Flat Washer 8 mm

234081410

$0.83

52

Welded Bushing

705600196

Unavailable

53

Scotch Grip Socket Screw M8 X 20

205582044

$2.64

54

Open Clamp

705600312

Unavailable
