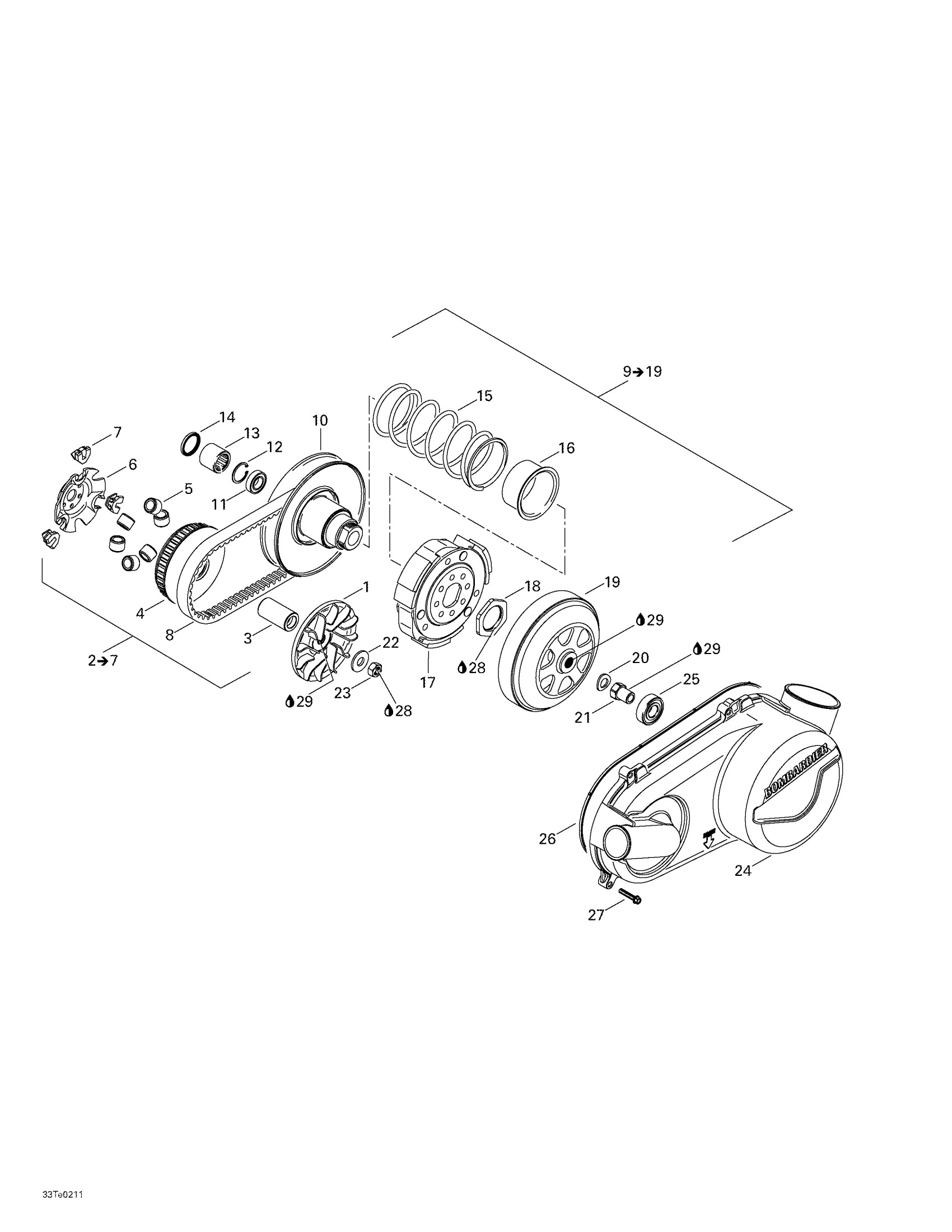

Can-Am Rally, 2003 05- Pulleys Diagram

#

Description
Price

1

Fixed Pulley

711280092

Unavailable

2

CVT Drive Unit Ass'y | Includes 2 - 7.

711296785

Unavailable

3

Spacer

711233779

Unavailable

4

Primary Drive Pulley

711280117

Unavailable

5

Roller KPL. 10 GR

711281310

Unavailable

6

Ramp Plate

711259657

Unavailable

7

Slide Piece (3 Pieces)

711281320

Unavailable

8

V-Belt

711280220

Unavailable

9

CVT Driven Unit Ass'y | Includes 9 - 19.

711684010

Unavailable

10

CVT Driven Unit

711684011

Unavailable

11

Ball Bearing

711632420

Unavailable

12

Retaining Ring

711945615

Unavailable

13

Sprag Clutch

711659400

Unavailable

14

Oil Seal

711631090

Unavailable

15

Spring

711239402

Unavailable

16

Spring Seat

711627172

Unavailable

17

Clutch Ass'y

711659252

Unavailable

18

Hex. Nut M10

711242040

Unavailable

19

Clutch Drum

711259664

Unavailable

20

LOCK WASHER - Call your local BRP dealership

420945754

Unavailable

21

Nut M12

711242230

Unavailable

22

Thrust Washer

420227180

$12.71

23

Hex. Nut M12

711242515

Unavailable

24

Transmission Cover

711610380

Unavailable

25

Ball Bearing

420832161

$35.99

26

Rubber Gasket

711630160

Unavailable

27

Hex. Flange Screw M6 x 30

711241941

Unavailable

28

Loctite 243, 10 ml

293800060

$21.49

29

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
