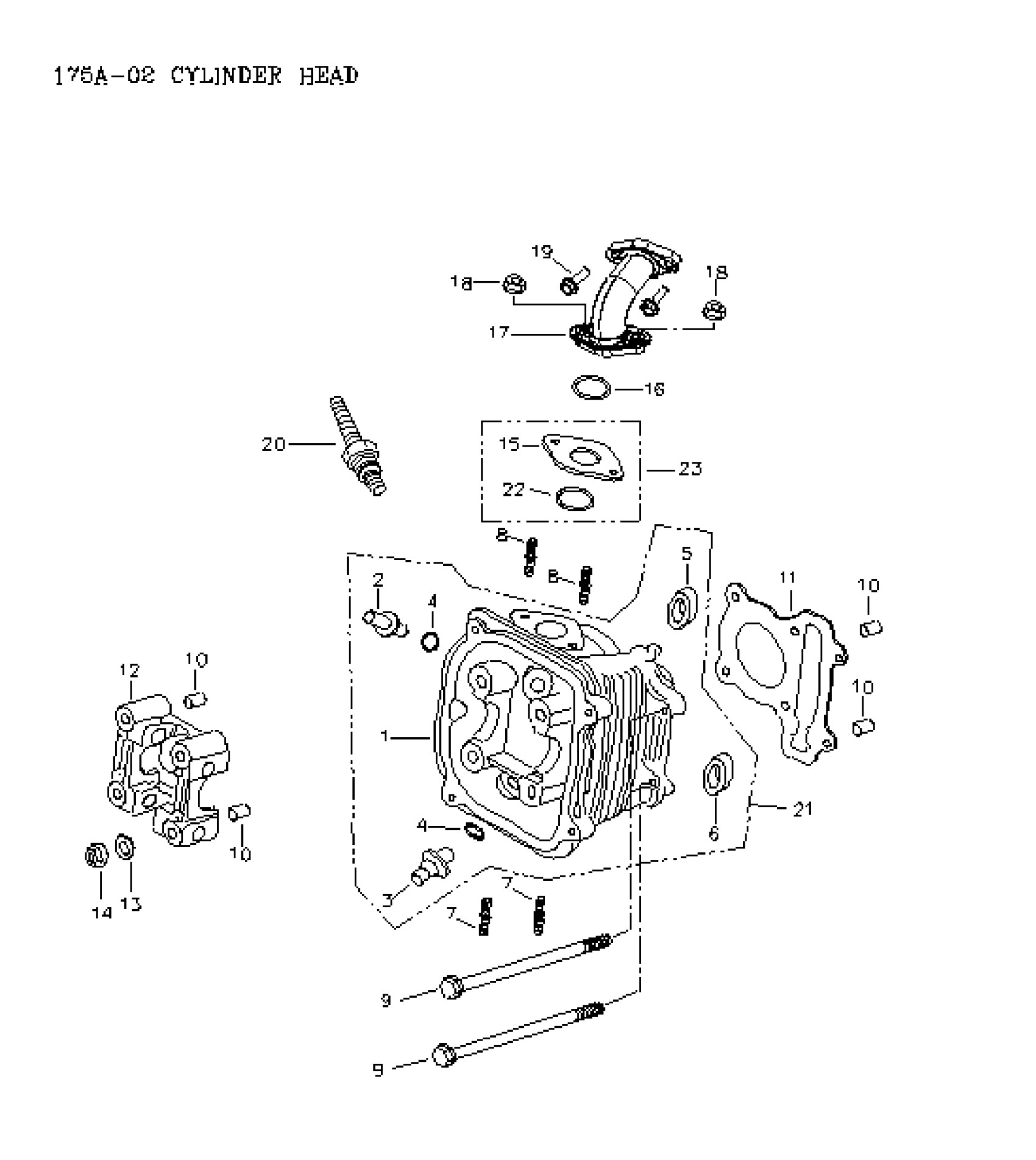

Can-Am Mini DS 90 4-strokes, 2006 01- Cylinder Head Diagram

#

Description
Price

1

CYLINDER HEAD - Call your local BRP dealership

A12201175000

Unavailable

2

Valve Guide

A12204175000

Unavailable

3

Valve Guide Ex.

A12206175000

Unavailable

4

OIL-RING - Call your local BRP dealership

A9130912000A

Unavailable

5

Seat Intake Valve

A12225175000

Unavailable

6

Seat Exhaust Valve

A12226175000

Unavailable

7

Stud Bolt M6 X 32

A9100106032

Unavailable

8

Stud Bolt

A9100106040

Unavailable

9

Hexagonal Washer Face Bolt

A960000608508

Unavailable

10

Dowel Pin

A9430108140A

Unavailable

11

CYLINDER HEAD GASKET - Call your local BRP dealership

A12251175000

Unavailable

12

Camshaft Holder

A12211133000

Unavailable

13

Flat Washer

A941010714025

Unavailable

14

HEX.FLANGE NUT WITH SERRATION M7 - Call your local BRP dealership

A9405007000

Unavailable

15

Carburetor Insulator

A16213175000

Unavailable

16

Oil Ring

A91322175000

Unavailable

17

Intake Manifold

A1710017500A

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Hex. Flange Screw M6 X 20

207662044

$2.00

20

Spark Plug

219703175

$4.23

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Oil Ring

A91324175000

Unavailable

23

Carburetor Insulator

A16239175000

Unavailable
