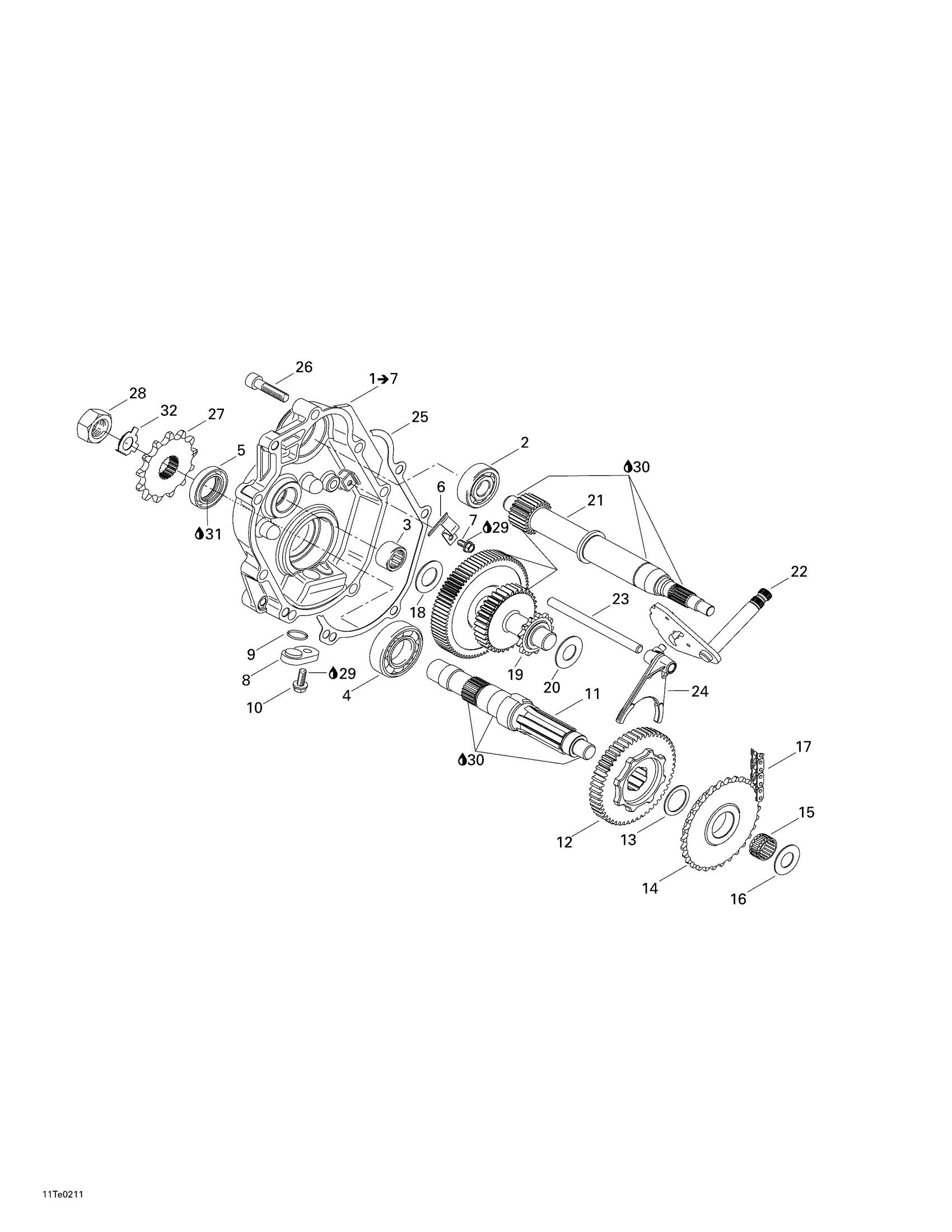

Can-Am Rally, 2003 05- Gear Shift Diagram

#

Description
Price

1

Gear Box Cover Ass'y | Includes 1 - 7.

711610361

Unavailable

2

Ball Bearing

711232293

Unavailable

3

Needle Bushing

711632960

Unavailable

4

Ball Bearing

711232768

Unavailable

5

OIL SEAL - Call your local BRP dealership

420230395

Unavailable

6

SPRING - Call your local BRP dealership

420238265

Unavailable

7

Taptite Screw M5 x 12

420941935

$1.59

8

COVER - Call your local BRP dealership

420627805

Unavailable

9

O-Ring

711630600

Unavailable

10

TAPTITE SCREW M6 X 12 - Call your local BRP dealership

420240385

Unavailable

11

Driven Shaft

711220930

Unavailable

12

Shift Gear 51T

711635250

Unavailable

13

Thrust Washer

711927470

Unavailable

14

Sprocket 30T

711236550

Unavailable

15

NEEDLE BEARING - Call your local BRP dealership

420232520

Unavailable

16

Thrust Washer

711927055

Unavailable

17

Chain

711898070

Unavailable

18

Thrust Washer

711627810

Unavailable

19

Intermediate Shaft

711220945

Unavailable

20

Thrust Washer

711227725

Unavailable

21

Drive Pulley Shaft 24T

711220920

Unavailable

22

Shift Shaft Ass'y

711220955

Unavailable

23

Guide Pin

711258780

Unavailable

24

Shift Fork

711257210

Unavailable

25

Gasket

711630141

Unavailable

26

Allen Screw M8 X 40

420840682

$3.91

27

SPROCKET 13T - Call your local BRP dealership

711236980

Unavailable

28

Ecrou Hex.M20 *Nut-Hex.M20

420242656

$17.54

29

Loctite 243, 10 ml

293800060

$21.49

30

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

31

Grease, Super Lube

293550030

$28.99

32

Tab Washer

707000215

Unavailable
