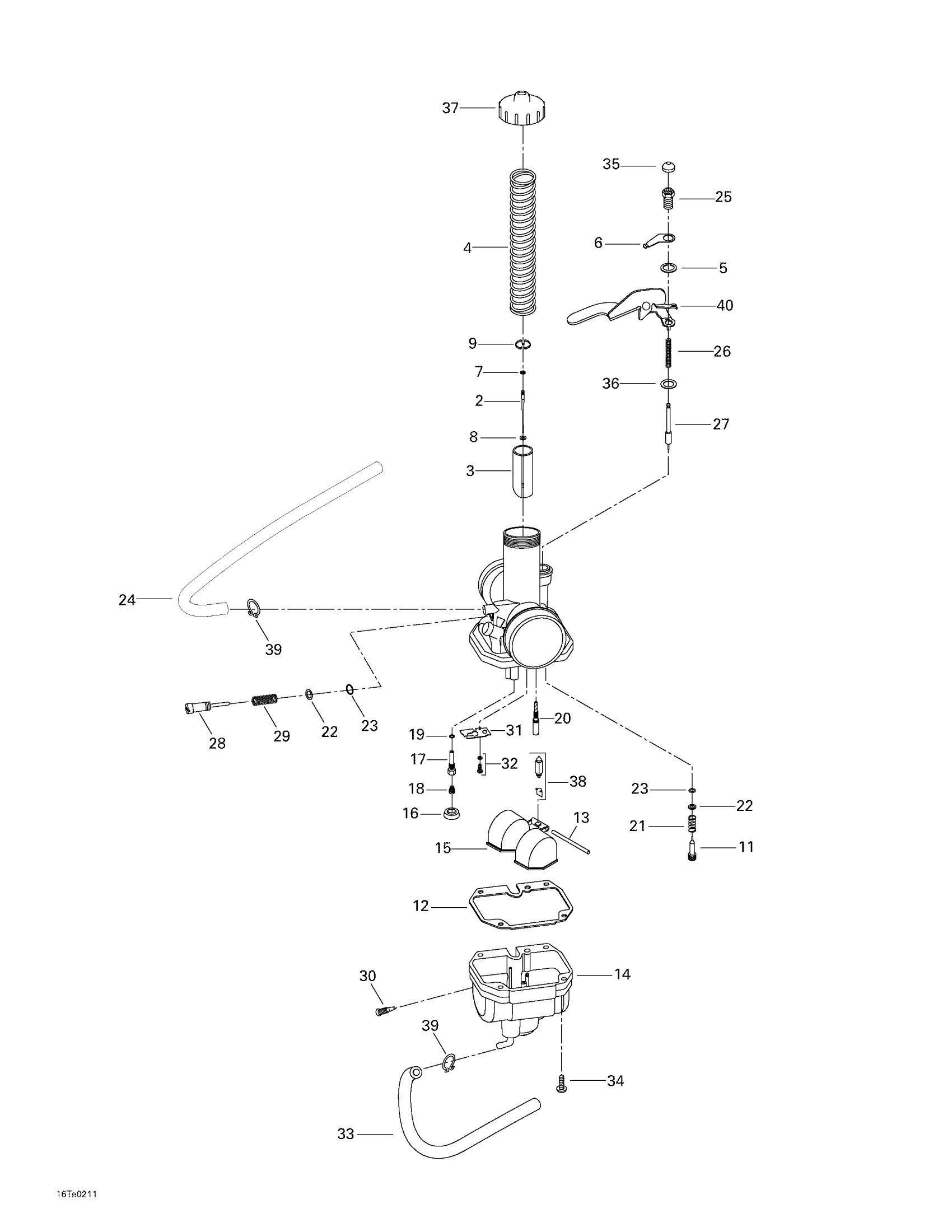

Can-Am Rally, 2003 02- Carburetor Diagram

#

Description
Price

1

Carburetor

707200169

Unavailable

2

JET NEEDLE - Call your local BRP dealership

707200228

Unavailable

3

VALVE PISTON - Call your local BRP dealership

707200201

Unavailable

4

SPRING - Call your local BRP dealership

707200202

Unavailable

5

Washer

707200203

Unavailable

6

Spring Plate

404108800

Unavailable

7

E-Ring

404152400

$7.27

8

Packing

404117000

$3.29

9

Clip

707200204

Unavailable

10

Jet Needle, Not shown

707200195

Unavailable

11

ADJUSTER - Call your local BRP dealership

707200205

Unavailable

12

Gasket

707200206

Unavailable

13

Pin

404123400

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Float Ass’y

707200207

Unavailable

16

Holder

707200208

Unavailable

17

Jet Holder

707200225

Unavailable

18

MAIN JET 105.0 - Call your local BRP dealership

707200229

Unavailable

19

O-RING - Call your local BRP dealership

270500119

Unavailable

20

PILOT JET 22.5 - Call your local BRP dealership

707200227

Unavailable

21

Spring

707200017

Unavailable

22

WASHER - Call your local BRP dealership

707200018

Unavailable

23

O-RING - Call your local BRP dealership

404139900

Unavailable

24

HOSE - Call your local BRP dealership

707200212

Unavailable

25

Retainer Guide

707200213

Unavailable

26

Spring

404103500

$8.47

27

PLUNGER ASS?Y - Call your local BRP dealership

707200214

Unavailable

28

Adjuster Screw

707200215

Unavailable

29

Spring

707200216

Unavailable

30

SCREW - Call your local BRP dealership

707200024

Unavailable

31

PLATE - Call your local BRP dealership

707200217

Unavailable

32

Screw With Washer

404121300

$4.14

33

HOSE - Call your local BRP dealership

707200218

Unavailable

34

SCREW - Call your local BRP dealership

404901400

Unavailable

35

Rubber Cap

404120100

Unavailable

36

Washer

707200219

Unavailable

37

MIXING CAP - Call your local BRP dealership

707200220

Unavailable

38

NEEDLE VALVE 1.8 - Call your local BRP dealership

404046103

Unavailable

39

Clip

707200222

Unavailable

40

Lever Ass’y

707200223

Unavailable
