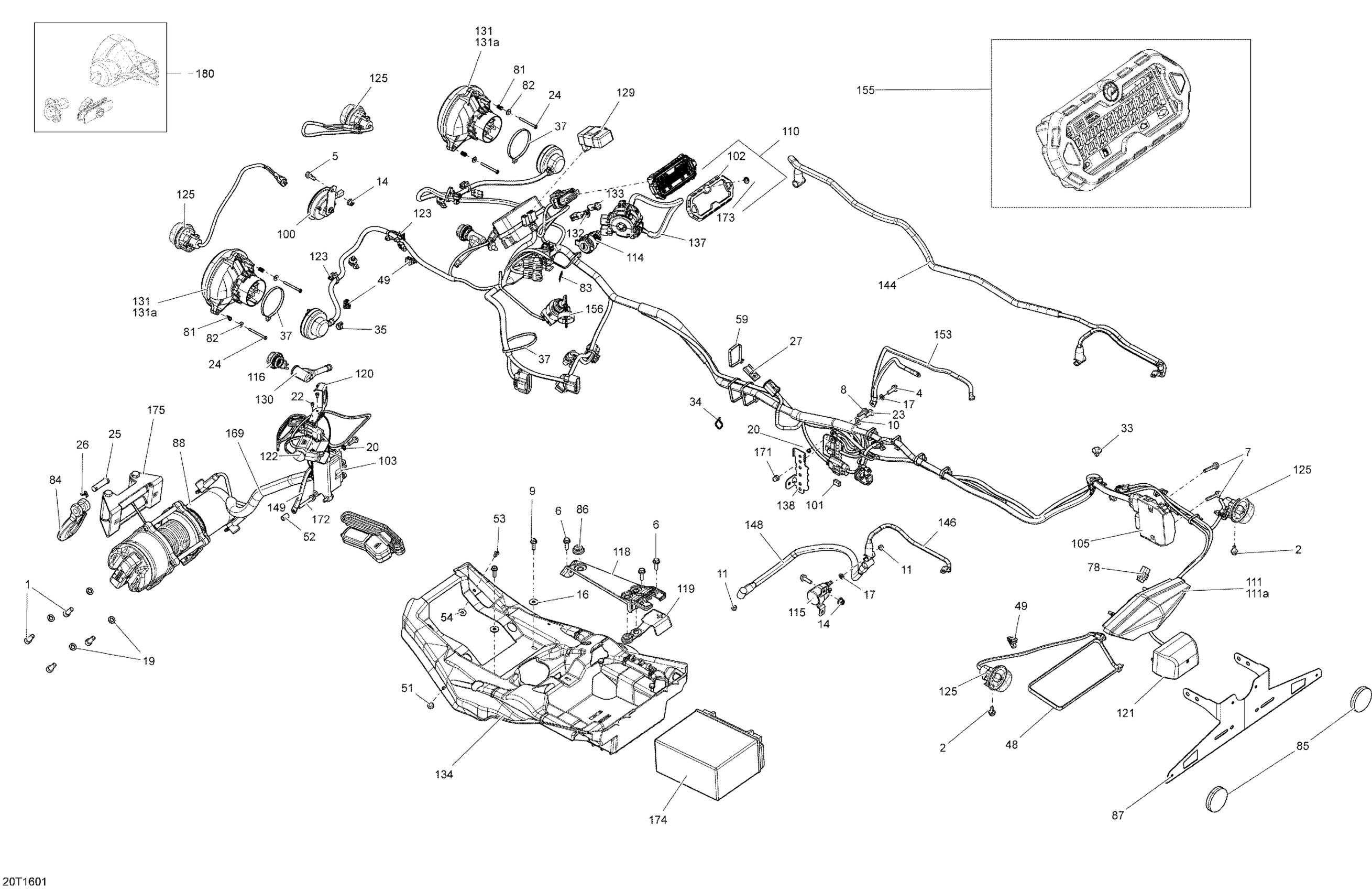

Can-Am 004 - Outlander L - 570 EFI - PRO Package 0003XGA00 0003XGB00 10- Electrical System - All Models Diagram

Socket Head Screw M8 X 20

205082044

$1.15

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Flange Screw M6 X 20

210262040

$2.11

Hexagonal Head Screw

210262050

$2.11

Flat Washer

224061121

$0.53

Elastic Stop Nut M6

232561434

$1.99

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flat Washer 6 mm

234062410

$0.77

Stainless Steel Flat Washer

234062670

$2.11

Lock Washer Helical M6

234161601

$1.15

Lock Washer 8 mm

234181401

$0.92

External Serrated Lock Washer 6 mm

234461608

$1.15

Panel Nut M6 X 1.0

250100198

$2.11

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

Torx Head Screw M6 X 16

250000717

$2.11

Hex. Screw K40 X 45

250000718

$2.11

Clevis Pin

250400021

$13.18

Cotter Pin

250400022

$9.69

Clip

270000141

$11.49

Mount Dart

293730040

$1.04

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 142 mm

293750002

$1.25

Tie Wrap 368 mm

293750008

$1.04

Tie-rap 627 mm

293750041

$0.93

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

Rubber Bumper

293830005

$8.09

Sleeve

293900078

$13.71

Pop Rivet 3/16"

390402300

$0.75

Washer | DS 650 X

391301600

$0.48

Tie-Rap 180 mm

414115200

$0.11

Male Housing, 3 Circuits

515175494

$16.18

Spring

517168600

$7.39

Flat Washer

517225900

$0.18

DPS LABEL - Call your local BRP dealership | Europe

704901835

Unavailable

Winch Hook Kit

705014949

$24.99

Red Reflector

705011221

$14.49

Stopper Rubber

705014429

$5.95

Plate Support | Model- Europe

705007449

$27.99

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

Cable Bracket

707001280

$13.49

Horn

710004791

$38.99

Clip

710000992

$4.29

Trim Ring Ass'y

710001183

$19.99

Winch Solenoid | XT Models

710001000

$121.99

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

Trim Ring Ass'y

710001183

$19.99

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$74.99

Bulb

520000758

$9.10

DC Outlet

710001248

$37.99

Starter Relay

710007777

$48.49

Day Light | Europe

710001726

$35.99

Fixation Plate

710002404

$9.39

Battery Cable Cap

710006729

$7.20

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$10.99

License Plate Light | Europe

710005563

$126.99

Winch Switch | XT, XTP, XMR, LTD,

710002724

$164.49

Tie-Rap Clip

710002896

$4.39

Flasher | Europe

710002964

$35.99

Flasher Unit

710003239

$78.49

Cap Protector | Model-Europe

710003269

$12.11

Low Beam

710003900

$114.99

Bulb, 12V 35/35W

710000871

$34.99

Pilot Lamp | Model-Europe

710003909

$21.99

Pilot Lamp Cap

710003910

$4.29

Battery Support

710006561

$50.99

Multi-Function Handle | Package STD Except Europe Model

710004618

$79.49

Multi-Function Handle | Except Model-Europe

710004617

$83.49

Multi-Function Handle

710004040

$179.99

Socket Head Screw M5 X 35

205053588

$1.90

Connector Bracket

710004118

$5.40

Wiring Harness Assembly | Includes 1 To RRF

710004331

$134.99

Connector Ass'y

710004375

$32.99

Positive Cable

710004376

$48.99

Positive Cable

710004377

$27.99

NEGATIVE HARNESS - Call your local BRP dealership | Package Hunter

710004379

Unavailable

Ground Cable

710004380

$19.99

Positive Cable | Engine 450

710004381

$19.99

Ground Cable

710004382

$19.99

Speedometer

710005087

$399.99

Button

715900265

$13.71

Ignition Switch With Key

710002323

$86.99

Switch_Ignition | Europe Model

710007866

$64.49

Wiring Harness Ass'y | Includes 1 to SS2

710004595

$989.99

WIRING HARNESS_WINCH - Call your local BRP dealership | Package Hunter

710004616

$39.99

Domed Nut M6

232361493

$2.11

Hex. Flange Screw M6 X 40 | Package-XT North America, International

210264040

$1.90

BRP Logo13 mm

704904615

$13.49

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Fairlead_Roller Kit

715007699

$83.99

PORTABLE HEADLAMP - Call your local BRP dealership | Package Hunter

715000007

Unavailable
