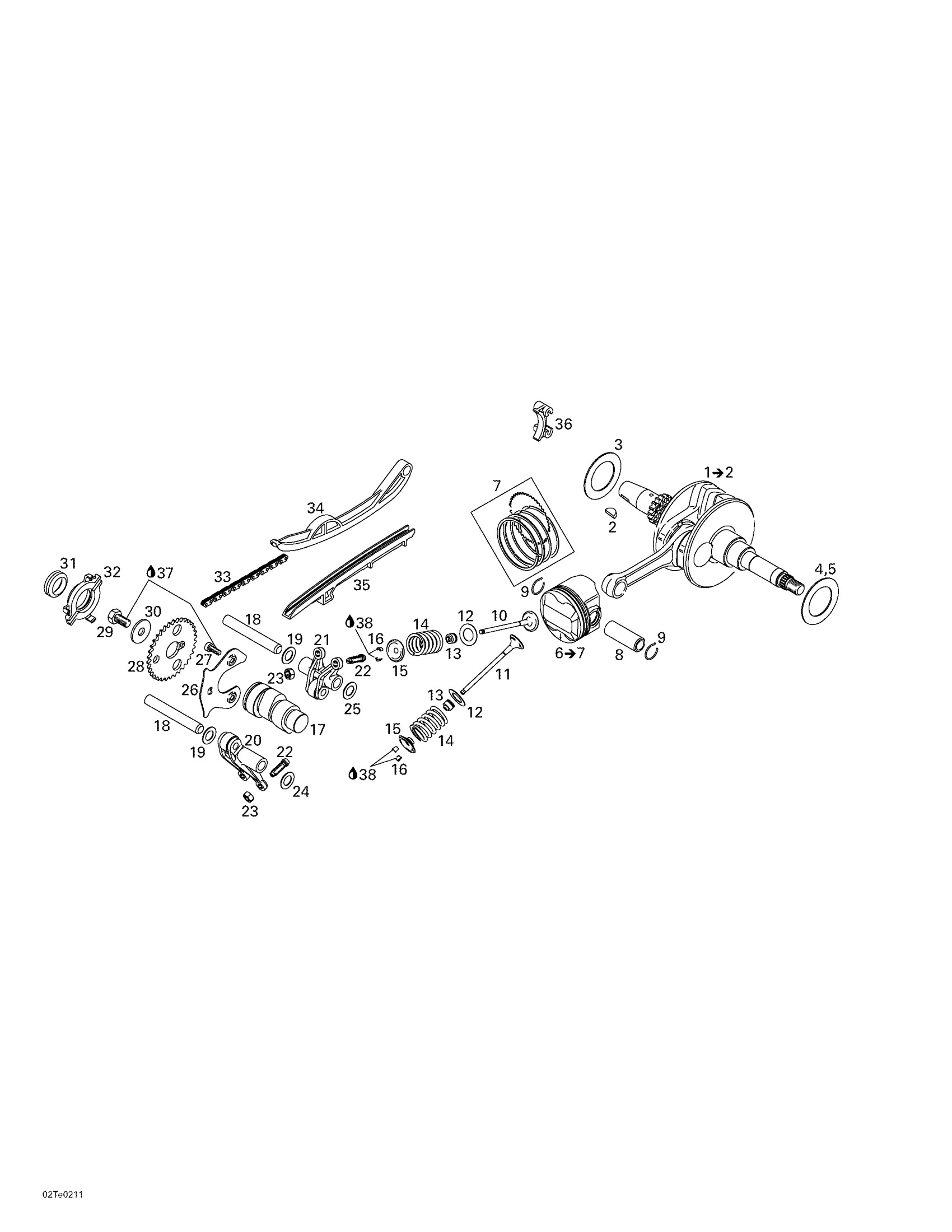

Can-Am Rally, 2003 01- Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 2.

711296420

Unavailable

2

Woodruff Key 4 X 5

420246570

$3.38

3

Thrust Washer

711627110

Unavailable

4

Thrust Washer

711627111

Unavailable

5

Thrust Washer

711627112

Unavailable

6

Piston Ass'y | Includes 6 - 7.

711296700

Unavailable

7

Piston Ring Set

711296704

Unavailable

8

Piston Pin

711216210

Unavailable

9

Circlip Piston

711245805

Unavailable

10

Inlet Valve 20 mm

711253880

Unavailable

11

Exhaust Valve 18 mm

711253892

Unavailable

12

Thrust Washer

711227451

Unavailable

13

Seal Valve

711650120

Unavailable

14

Valve Spring

711239360

Unavailable

15

Valve Spring Retainer

711253902

Unavailable

16

Valve Cotter

711253840

Unavailable

17

Camshaft

711220315

Unavailable

18

Pin

711229410

Unavailable

19

Thrust Washer

711627100

Unavailable

20

Rocket Arm Exhaust

711253878

Unavailable

21

Rocket Arm Inlet

711253868

Unavailable

22

Adjustment Screw M6 X 0.75

420241337

$5.07

23

Hex Nut M6

420242913

$0.53

24

Thrust Washer

711627100

Unavailable

25

Thrust Washer

420827590

$4.01

26

Retaining Plate

711251040

Unavailable

27

Socket Screw M5 x 12

420241841

Unavailable

28

Timing Gear 34T

711634380

Unavailable

29

Hex. Screw M8 x 16

207181644

$1.15

30

Plain Washer

420227937

$13.24

31

V-Ring 20S FPM Blow By Valve

420630125

$11.63

32

Cover

711660180

Unavailable

33

Camshaft Chain

711297932

Unavailable

34

Chain Tension Guide

711236270

Unavailable

35

Chain Guide

711236280

Unavailable

36

Chain Guide

420236351

$14.81

37

Loctite 243, 10 ml

293800060

$21.49

38

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
