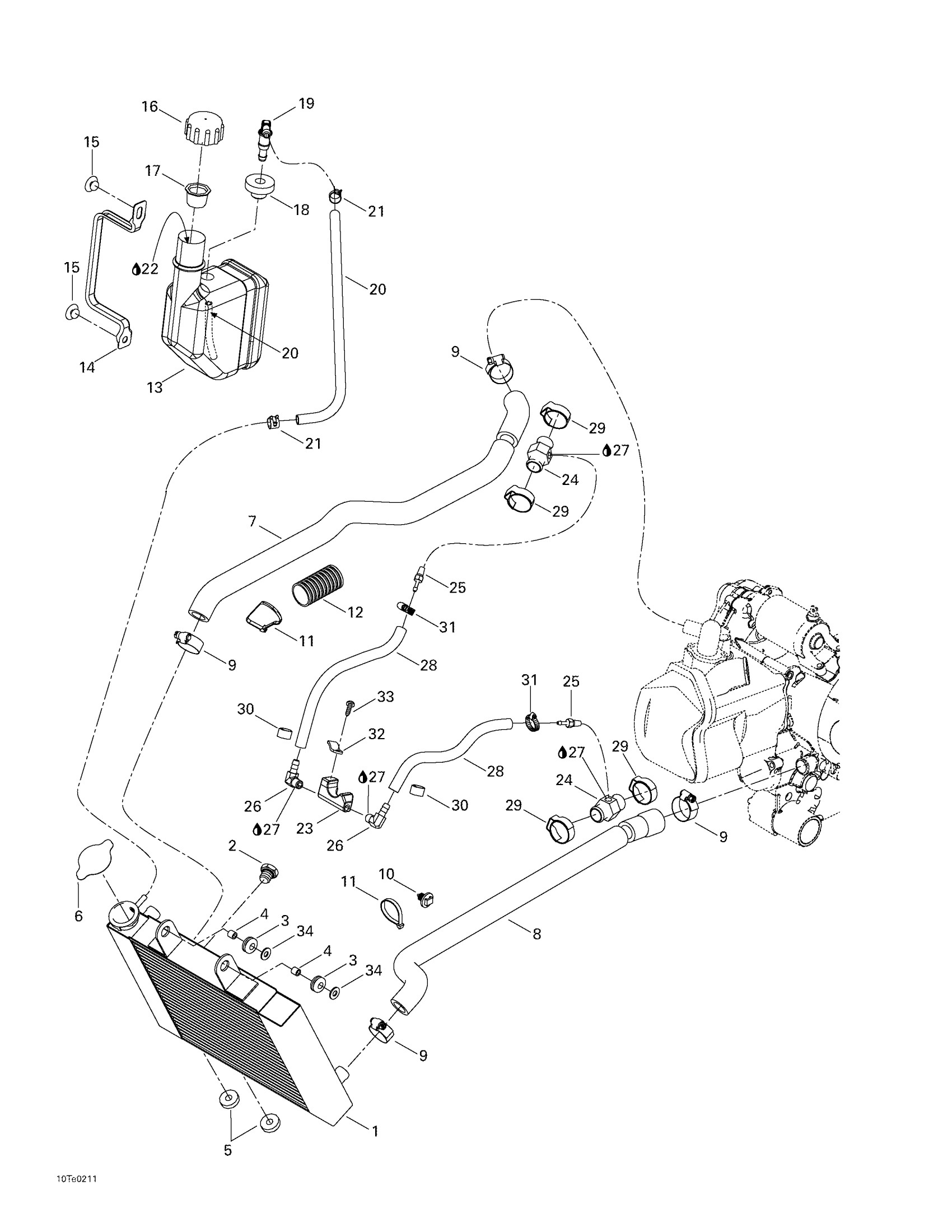

Can-Am Rally, 2003 01- Cooling System Diagram

#

Description
Price

1

Radiator

709200090

Unavailable

2

PLUG - Call your local BRP dealership

250500006

Unavailable

3

Grommet

709000582

$4.69

4

Bushing

293900105

$7.65

5

Grommet

709200285

$9.69

6

Radiator Pressure Cap

709200207

$25.49

7

INLET RADIATOR HOSE - Call your local BRP dealership

709200066

Unavailable

8

OUTLET RADIATOR HOSE - Call your local BRP dealership

709200067

Unavailable

9

Tridon Gear Clamp

293650051

$4.19

10

Mount Dart

293730040

$1.04

11

Tie-Rap 180 mm

414115200

$0.11

12

PROTECTION SHIELD - Call your local BRP dealership

709200031

Unavailable

13

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

14

TANK ANCHOR - Call your local BRP dealership

709200080

Unavailable

15

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

16

TANK CAP - Call your local BRP dealership

709200009

Unavailable

17

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

18

Grommet

709200285

$9.69

19

Elbow Male Connector

414580600

$4.23

20

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

21

Spring Clamp

414554800

$0.88

22

Antifreeze

293600052

Unavailable

23

Block Heater

709200096

Unavailable

24

ADAPTER - Call your local BRP dealership

709200097

Unavailable

25

Male Connector

293710037

$10.49

26

Elbow Fitting

293700016

Unavailable

27

Was 293800013 Loctite 56765

219704454

$65.99

28

Hose

219704549

$50.99

29

Oetiker Clamp

293650141

$4.29

30

Oetiker Clamp

293650125

$3.29

31

Tridon Gear Clamp

293650170

$1.99

32

Lock

709200098

Unavailable

33

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

34

Flat Washer

224060201

$1.26
