Description

Price

1

Pressure Screw M8 X 8 | 4X4

206580890

$1.69

2

Hex. Flange Screw M8 X 55

207685544

$5.39

3

Hex. Flange Screw M10 X 125

230602546

$7.41

4

Hex. Flange Castellated Nut M18

232291413

$7.98

5

Hex. Flange Elastic Nut M10

233201436

$2.11

6

Hex. Flange Elastic Nut M8

233281414

$1.47

7

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.70

8

Hex. Flange Screw M8 X 20, Scotch Grip | 4X4

250000137

$3.28

9

Hex Flange Screw M12 X 16

250001039

$2.11

10

Hex Flange Screw M12 X 20

250001042

$1.90

11

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.44

12

Steel Wheel Nut

250100042

$3.98

12

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

12

Black, Wheel Nut M10 X 1.25

250100184

$4.51

13

Boot Kit, Wheel Side

705401345

$42.49

13

CV Boot Kit, Wheel Side

715900298

$42.49

14

Flat Washer M10 | 4X4

250200014

$1.49

15

Conical Spring Washer M18

250200171

$7.65

16

Flat Washer M12

250200102

$2.11

17

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

18

Dowell Pin | 4X4

250400025

$7.73

19

Cotter Pin

250400071

$2.11

20

Valve Cap

293000110

$1.59

21

Oil Seal

293250348

$20.49

22

O-Ring

293300091

$7.51

23

O-Ring

293300179

$2.51

24

Ball Bearing

293350150

$52.99

25

Circlip

293370019

$4.68

26

Circlip | 4X4

293370029

$5.19

27

Circlip | 4X4

293370030

$2.89

30

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

32

Oetiker Gear Clamp

293650199

$9.69

33

Tie-Rap 180 mm

414115200

$0.11

35

Rim Valve With Cap

705400193

$8.69

36

Ball Bearing | 4X4

705400249

$25.99

37

Coupling Sleeve | 4X4

705400389

$31.99

38

Actuator Ass'Y | Includes 72 to 74

715900502

$499.99

39

Propeller Shaft | Includes 1 to 2

705400913

$211.99

40

Wheel Cap

705400928

$10.49

41

Slider | 4X4

705402139

$46.99

43

Rubber Boot

705401093

$5.00

45

LH Front - Premium CV Axle | Includes 43 to 51

705401115

$243.99

45

RH Front - Premium CV Axle

705401116

$243.99

45

RH Front - Premium CV Axle

705401428

$243.99

45

LH Front - Premium CV Axle

705401429

$243.99

46

Black,12" X 6 Rim | STD

705401199

$119.99

46

Silver Rim | Package-DPS

705401402

$190.49

46

Deep Black, Rim R12 X 6 | Package-DPS Camo

705401522

$179.99

46

Deep Black, 12 Inch Rim X 6 | XT CAMO

705401127

$169.49

46

Black, Rim | XT

705401420

$190.49

47

Front Bushing Shaft Kit | 4X4

703500678

$114.99

49

LH Knuckle

705403307

$179.99

49

RH Knuckle

705403308

$179.99

50

Tire 205 X 80 R12

705402890

$153.49

50

Front Tire | STD Europe

705401626

$224.99

50

Tire 26X8B12 | Package PRO International

705402972

$179.99

50

Front Tire | Package PRO Europe

705401737

$174.99

50

TIRE_28X8R12 F - Call your local BRP dealership

705401391

Unavailable

53

Front Drive Axle

705403293

$179.99

54

Idler Shaft Gear

705401509

$105.49

55

Shifter Lever Plate | 4X4

705401553

$20.99

56

Screw | 4X4

705401601

$10.49

57

Screw | After May 30, 2014

705401602

$6.19

58

Nut | 4X4

705401603

$35.99

59

Shim | 4X4

705401604

$57.99

60

Ball Bearing | After May 30, 2014

705401605

$31.99

61

Ball Bearing | 4X4

705401606

$51.99

62

Ball Bearing | After May 30, 2014

705402848

$49.99

63

Ball Bearing | After May 30, 2014

705401608

$51.99

64

Front Cover | After May 30, 2014

705401610

$149.99

65

Gear 36 Teeth | After May 30, 2014

705401612

$409.99

66

Vent Valve | After May 30, 2014

705401613

$16.49

67

Differential | Package-DPS, XT, XTP

705402182

$1,128.49

67

Differential | Package-STD

705402184

$977.49

67a

Shim

705401769

$7.69

67b

Shim

705401770

$7.09

68

Oil Seal | After May 30, 2014

705401615

$19.49

69

Seal | After May 30, 2014

705401616

$14.28

70

O'Ring | After May 30, 2014

705401617

$7.20

71

Gasket | 4X4

705401618

$18.49

72

Housing

705401632

$164.99

73

Wear Ring | 4X4

705400036

$26.49

73

Not Available As Spare Part - Friction Washer

Unavailable

74

Fill Level Plug | 4X4

705500504

$10.01

75

Copper Washer | 4X4

705500506

$0.45

76

1/2 Oz Weight

219704465

$3.89

77

Front Pinion Cover | After May 30, 2014

705401792

$149.99

78

Drain Plug | After May 30, 2014

705501885

$14.22

79

Wheel Hub

705501900

$132.49

80

Copper Washer

705601628

$4.44

81

SWITCH - Call your local BRP dealership | 4X4

710000324

$28.99

82

Rubber Boot

715900118

$14.30

83

Fixed Yoke Joint

715900116

$59.49

84

YOKE JOINT - Call your local BRP dealership

715900293

Unavailable

85

Oetiker Gear Clamp 36.1MM

509000045

$8.29

86

Grease Fitting | T3

715900295

$5.24

87

Universal Joint Kit

703500845

$78.49

88

Polyurethane Hose 10000Mm Long

219704410

$56.99

89

Front Differential | Includes 8 to 31

703500907

$1,579.99

89

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

90

Pinion 10 Teeth | After May 30, 2014

705402841

$219.99

91

CV Joint

705401344

$259.49

91

CV Joint

715900297

$259.49

92

RH Plunging Joint

705401348

$259.49

92

LH Plunging Joint

705401350

$259.49

92

RH Plunging CV Joint

715900300

$259.49

92

LH Plunging CV Joint

715900301

$259.49

93

Circlip Joint | Not shown

705401349

$6.50

94

Oetiker Clamp, Large

715900262

$10.33

94

Oetiker Clamp

715900282

$5.29

95

Oetiker Clamp, Small

715900283

$5.29

95

Oetiker Clamp, Small

715900317

$11.58

96

Boot Kit, Differential Side

705401346

$42.49

96

CV Boot Kit, Differential Side

715900299

$42.49

97

Oetiker Clamp, Large

715900284

$5.29

97

Oetiker Clamp, Large

715900318

$11.58

98

Oetiker Clamp, Small

715900261

$5.29

98

Oetiker Clamp, Small

715900317

$11.58

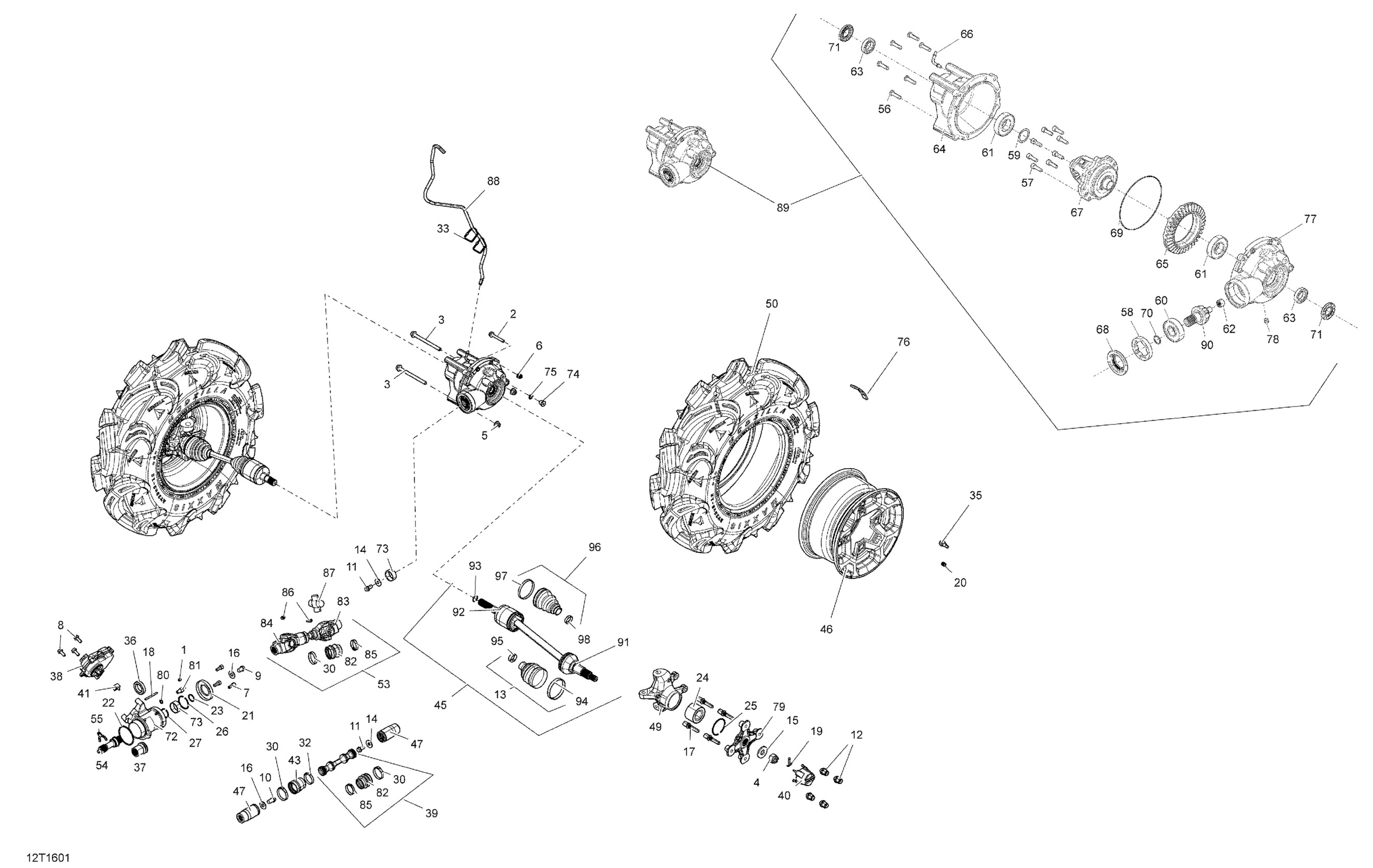

Can-Am 004 - Outlander L - 570 EFI - PRO Package 0003XGA00 0003XGB00 07- Front Drive System - All Models Diagram
