Description

Price

1

CVT Air Guide

420612304

$194.99

2

O-Ring

420430408

$5.29

3

O-Ring

420631089

$5.29

4

Hex.Screw M6 X 20

420441311

$5.18

5

Flat Washer

224061121

$0.53

6

Elastic Stop Nut M6

232561414

$0.55

7

Gasket

420430126

$41.49

8>11

Governor Cup Ass'y | Includes 6 to 9

420280522

$439.99

9

Slider Shoe Set

420281296

$65.49

10

Roller Axle

417223257

$6.99

11

Roller

417223767

$11.59

12

Outer Haft

420280467

$329.99

13>16

Centrifugal Lever Kit

420248680

$144.99

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Compression Spring, Drive Pulley

420238610

$26.49

18

Seat Spring

420627578

$35.99

19

Friction Washer

420460430

$13.99

20

Drive Pulley Clutch

420257195

$114.99

21

Ball Bearing

420632377

$49.99

22

Retaining Ring

420245951

$5.31

23

Inner Half

420280374

$339.99

24

Spring Sleeve

420229577

$18.49

25

Spring

420239134

$3.06

26

Thrust Washer

420627920

$7.51

27

Spring Washer

420627768

$21.99

28

Hex. Screw M12 X 140

420641859

$24.99

29

Cam

420280701

$153.49

30

Driven Pulley Shaft

420220913

$134.99

31

Compression Spring

420238176

$35.99

32

Inner Half Ass'y | Includes 33 to 35

420248233

$308.99

33>36

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

34

Ball Bearing

420932421

$28.49

35

Retaining Ring

420245911

$5.31

36

Torque Gear

420660124

$23.49

37

V-Belt

422280366

$179.99

38

Thrust Washer

420627590

$16.99

39

Hex. Screw M10 X 110

420441485

$12.18

40

Variator Cover

420611397

$219.99

41

Hex Screw M6 X 30

420440568

$8.58

42

Drain Plug Kit

707001179

$9.63

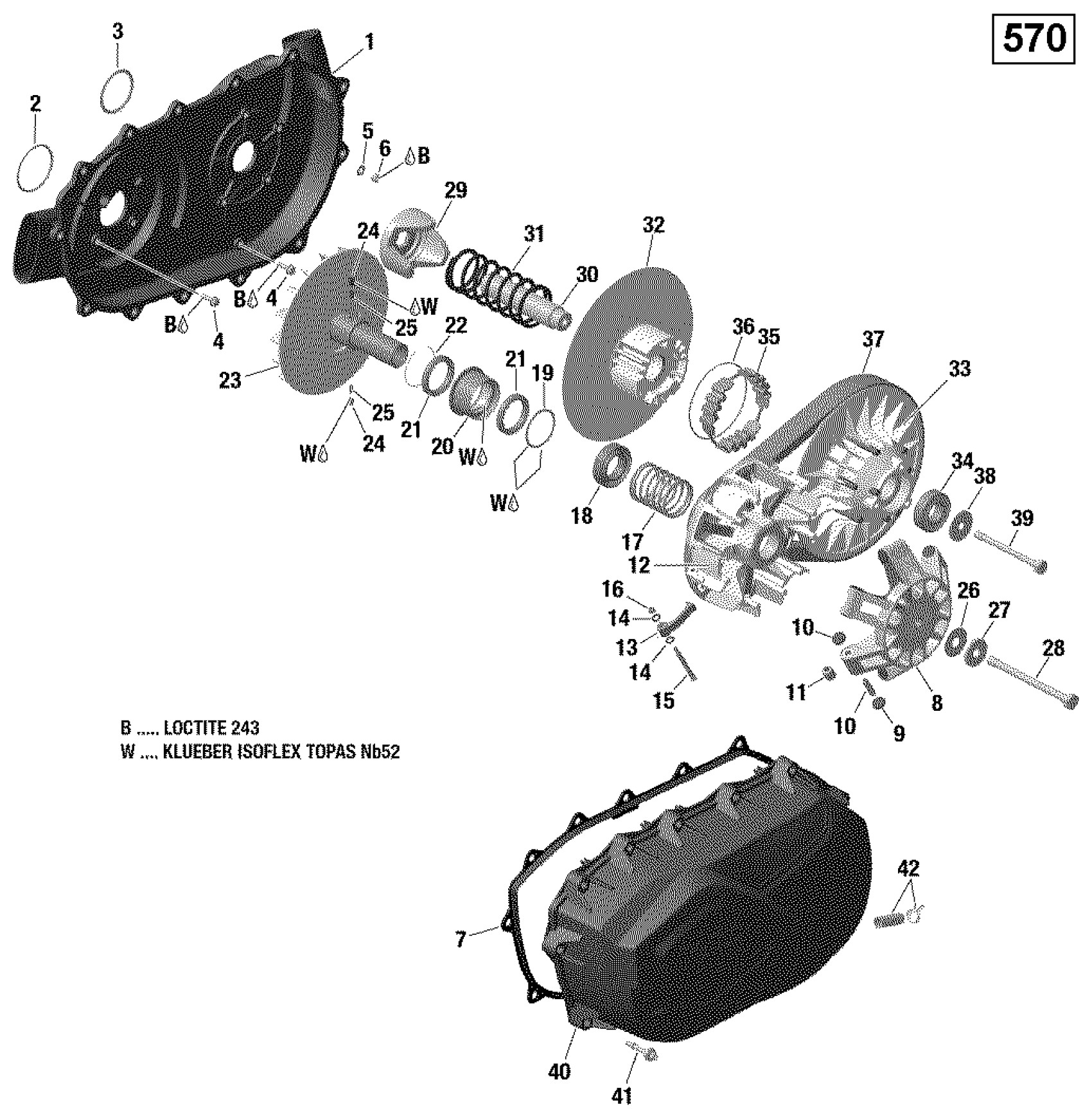

Can-Am 004 - Outlander L - 570 EFI - PRO Package 0003XGA00 0003XGB00 05- Transmission - 570 EFI (Package PRO) Diagram

CVT Air Guide

O-Ring

O-Ring

Hex.Screw M6 X 20

Flat Washer

Elastic Stop Nut M6

Gasket

Governor Cup Ass'y | Includes 6 to 9

Slider Shoe Set

Roller Axle

Roller

Outer Haft

Centrifugal Lever Kit

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Compression Spring, Drive Pulley

Seat Spring

Friction Washer

Drive Pulley Clutch

Ball Bearing

Retaining Ring

Inner Half

Spring Sleeve

Spring

Thrust Washer

Spring Washer

Hex. Screw M12 X 140

Cam

Driven Pulley Shaft

Compression Spring

Inner Half Ass'y | Includes 33 to 35

Outer Half Pulley Ass'y | Includes 27 to 32

Ball Bearing

Retaining Ring

Torque Gear

V-Belt

Thrust Washer

Hex. Screw M10 X 110

Variator Cover

Hex Screw M6 X 30

Drain Plug Kit
