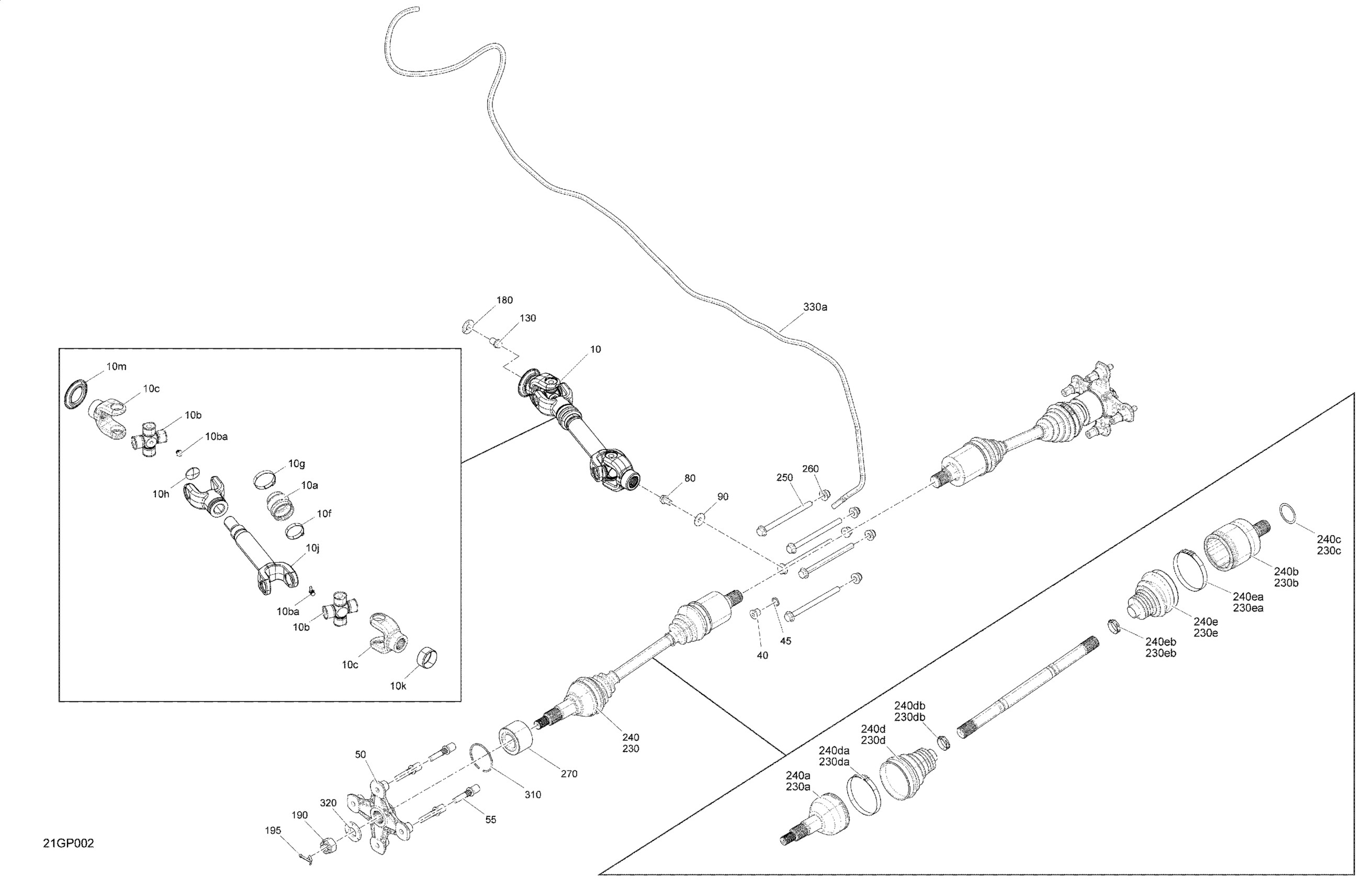

Can-Am 004 - Outlander L - 570 EFI - PRO Package 0003XGA00 0003XGB00 04- Drive - Rear - Common Parts - NO MAX Diagram

Description

Price

Shaft Ass'y Kit | Incldues 1 to 5

703500986

$307.49

10a

Rubber Boot

715900118

$14.30

10ba

Grease Fitting

715900184

$5.24

10c

Fixe Yoke

715900101

$29.49

10b

Universal Joint

715900326

$68.99

10f

Oetiker Gear Clamp 36.1MM

509000045

$8.29

10g

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

10h

COVER - Call your local BRP dealership

715900187

Unavailable

10j

Spline Yoke

715900106

$41.49

10k

Wear Ring | 4X4

705400036

$26.49

10m

Protector

705501123

$7.55

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

Wheel Hub

705501900

$132.49

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

Flat Washer M10 | 4X4

250200014

$1.49

130

Hex Flange Screw M12 X 16

250001039

$2.11

180

Flat Washer M12

250200102

$2.11

190

Hex. Flange Castellated Nut M18

232291413

$7.98

195

Cotter Pin

250400071

$2.11

230

RH Half Shaft Ass'y

705501897

$243.99

230a

CV Joint

705401344

$259.49

230b

Plunging Joint

715900304

$121.49

230c

Circlip

705501781

$6.50

230d

Boot Kit, Wheel Side

705401345

$42.49

230da

Oetiker Clamp

715900282

$5.29

230db

Oetiker Clamp, Small

715900283

$5.29

230e

Boot Kit, Differential Side

705401346

$42.49

230ea

Oetiker Clamp, Large

715900284

$5.29

230eb

Oetiker Clamp, Small

715900261

$5.29

240

LH Half Shaft Ass'y

705501898

$243.99

240a

CV Joint

705401344

$259.49

240b

Plunging Joint

715900304

$121.49

240c

Circlip

705501781

$6.50

240d

Boot Kit, Wheel Side

705401345

$42.49

240da

Oetiker Clamp

715900282

$5.29

240db

Oetiker Clamp, Small

715900283

$5.29

240e

Boot Kit, Differential Side

705401346

$42.49

240ea

Oetiker Clamp, Large

715900284

$5.29

240eb

Oetiker Clamp, Small

715900261

$5.29

250

Hex. Flange Screw M10 X 135

250001041

$5.59

260

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$7.65

330a

Polyurethane Hose 10000Mm Long

219704410

$56.99
