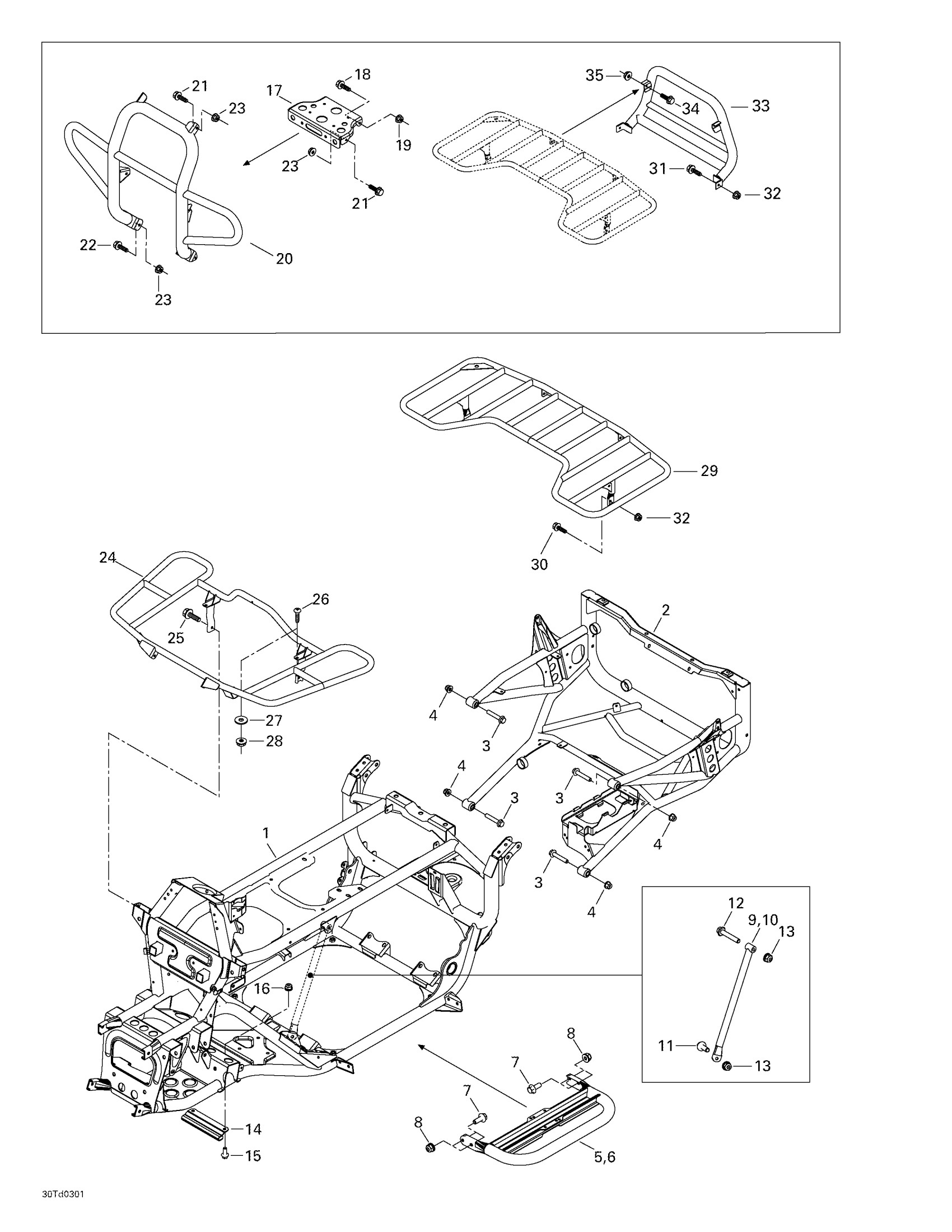

Can-Am Quest 650, 2003 09- Frame And Luggage Racks Diagram

#

Description
Price

1

Black frame

705200544

Unavailable

2

Frame Extension, Black

705200546

Unavailable

3

Hex. Flange Screw M10 X 60

207606044

$3.38

4

Hex. Flange Elastic Nut M10

233201414

$1.58

5

Footrest (silver)

705000008

Unavailable

6

Footrest, Black

705000610

Unavailable

7

Hex. Flange Screw M8 X 20

207682044

$1.15

8

Hex. Flange Elastic Nut M8

233281414

$1.47

9

RH Removable Brace

705200404

Unavailable

10

LH Removable Brace

705200405

Unavailable

11

Hex. Flange Screw M8 X 25

207682544

$1.35

12

Hex. Flange Screw M8 X 50

207685044

$1.69

13

Hex. Flange Elastic Nut M8

233281414

$1.47

14

Bracket, Black

705200575

Unavailable

15

Hex. Flange Screw M6 X 16

207661644

$0.74

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

WINCH LATCH, BLACK - Call your local BRP dealership

705200196

Unavailable

18

Hex. Flange Screw M8 X 20

207682044

$1.15

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Front bumper

705000001

Unavailable

FRONT BUMPER, BLACK - Call your local BRP dealership | Traxter 5 Speed XT

705000585

Unavailable

Front Bumper, Black | Traxter 5 Speed STD

705000591

Unavailable

Front bumper

705000001

Unavailable

21

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 20

207682044

$1.15

22

Hex. Flange Screw M8 X 25

207682544

$1.35

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Front Luggage Rack, Black

703500264

Unavailable

25

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

26

TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000035

Unavailable

27

Flat Washer

224060201

$1.26

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Rear Luggage Rack, Black

705000622

Unavailable

30

Hex. Flange Screw M8 X 20

207682044

$1.15

31

Hex. Flange Screw M8 X 50

207685044

$1.69

32

Hex. Flange Elastic Nut M8

233281414

$1.47

33

Rear bumper (silver)

705000210

Unavailable

Rear bumper | XT Quest XT 650.

705000586

Unavailable

Rear Bumper, Black | Traxter 5 Speed STD

705000602

Unavailable

Rear bumper (silver)

705000210

Unavailable

34

Hex. Flange Screw M8 X 20

207682046

$1.90

35

Hex. Elastic Flange Nut M8

233281416

$1.48
