Description

Price

1

Bevel Gear Ass'y

711296530

Unavailable

2

Washer Thrust Set

420281300

$95.49

3

Ball Bearing 6405

420632280

$98.49

4

O-Ring

420430373

$3.17

5

Ball Bearing

420932822

$30.49

6

Distance Ring

711247090

Unavailable

7

Oil Seal

420650682

$19.49

8

RETAINING RING - Call your local BRP dealership

711445070

Unavailable

9

Thrust Washer Set, MAG Side

420281306

$61.49

10

Axial Needle Bearing

420632300

$18.49

11

Gearwheel Set | Includes 11 - 16.

711281282

Unavailable

Gearwheel Set | Includes 11 - 17.

711281280

Unavailable

11

Needle Bearing

420632070

$25.99

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Retaining Ring

420245850

$5.31

14

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Thrust Washer Set, CVT Side

420281302

$86.99

18

Countershaft Ass'y (11 Teeth) | Includes 18 - 25.

711220978

Unavailable

Countershaft Ass'y (11 Teeth) | Includes 19 - 27.

711220976

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Needle Bearing

420632070

$25.99

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Circlip

420445302

$4.12

23

Not Available As Spare Part - Friction Washer

Unavailable

24

O-Ring

420630040

$4.44

25

Distance Ring

711247110

Unavailable

26

Idle Gear Shaft | Includes 26 - 30.

711229605

Unavailable

26

Needle Pin

420229600

$37.99

27

Thrust Washer

711944190

Unavailable

28

Needle Cage

420432034

$35.99

29

Internal Gear (23 teeth)

711635310

Unavailable

30

Distance Sleeve

711247120

Unavailable

31

Pin

420229540

$20.99

32

Shift Fork

711257180

Unavailable

33

Shift Fork

711257230

Unavailable

34

Shift Drum

711257175

Unavailable

35

Isolating Washer

711227567

Unavailable

36

Index Spring

420239561

$12.18

37

BUSHING - Call your local BRP dealership

420227710

Unavailable

38

INDEX LEVER KIT - Call your local BRP dealership

703500189

Unavailable

39

Torx Screw M6 X 16

420241529

$2.11

40

Shift Shaft

711220806

Unavailable

41

Lock Lever | Quest 500.

711257158

Unavailable

Lock Lever

711257156

Unavailable

42

Loctite 243, 10 ml

293800060

$21.49

43

Grease, Super Lube

293550030

$28.99

44

Not Available As Spare Part - Friction Washer

Unavailable

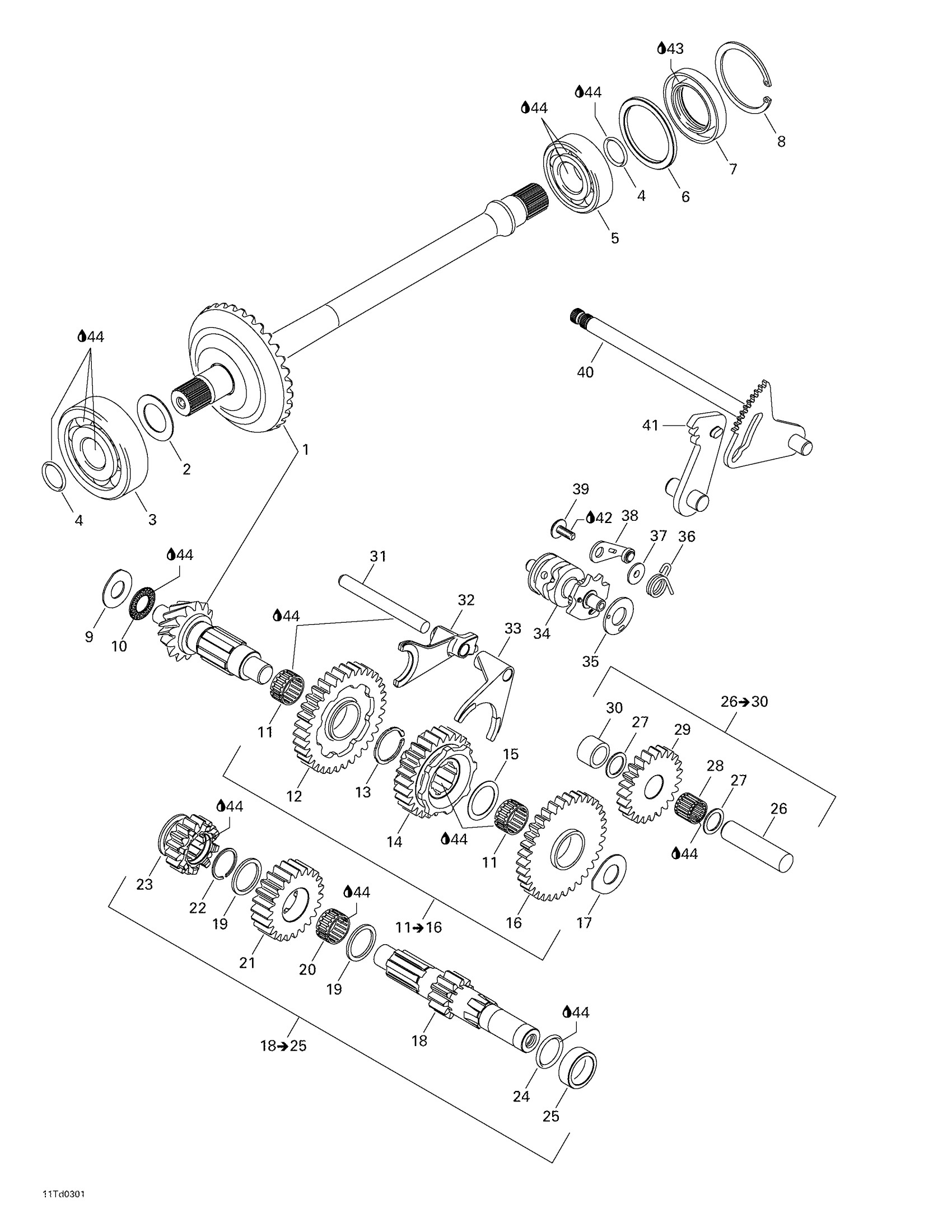

Can-Am Quest 650, 2003 05- Gear Shift Diagram

Bevel Gear Ass'y

Washer Thrust Set

Ball Bearing 6405

O-Ring

Ball Bearing

Distance Ring

Oil Seal

RETAINING RING - Call your local BRP dealership

Thrust Washer Set, MAG Side

Axial Needle Bearing

Gearwheel Set | Includes 11 - 16.

Gearwheel Set | Includes 11 - 17.

Needle Bearing

Not Available As Spare Part - Friction Washer

Retaining Ring

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Thrust Washer Set, CVT Side

Countershaft Ass'y (11 Teeth) | Includes 18 - 25.

Countershaft Ass'y (11 Teeth) | Includes 19 - 27.

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Needle Bearing

Not Available As Spare Part - Friction Washer

Circlip

Not Available As Spare Part - Friction Washer

O-Ring

Distance Ring

Idle Gear Shaft | Includes 26 - 30.

Needle Pin

Thrust Washer

Needle Cage

Internal Gear (23 teeth)

Distance Sleeve

Pin

Shift Fork

Shift Fork

Shift Drum

Isolating Washer

Index Spring

BUSHING - Call your local BRP dealership

INDEX LEVER KIT - Call your local BRP dealership

Torx Screw M6 X 16

Shift Shaft

Lock Lever | Quest 500.

Lock Lever

Loctite 243, 10 ml

Grease, Super Lube

Not Available As Spare Part - Friction Washer
