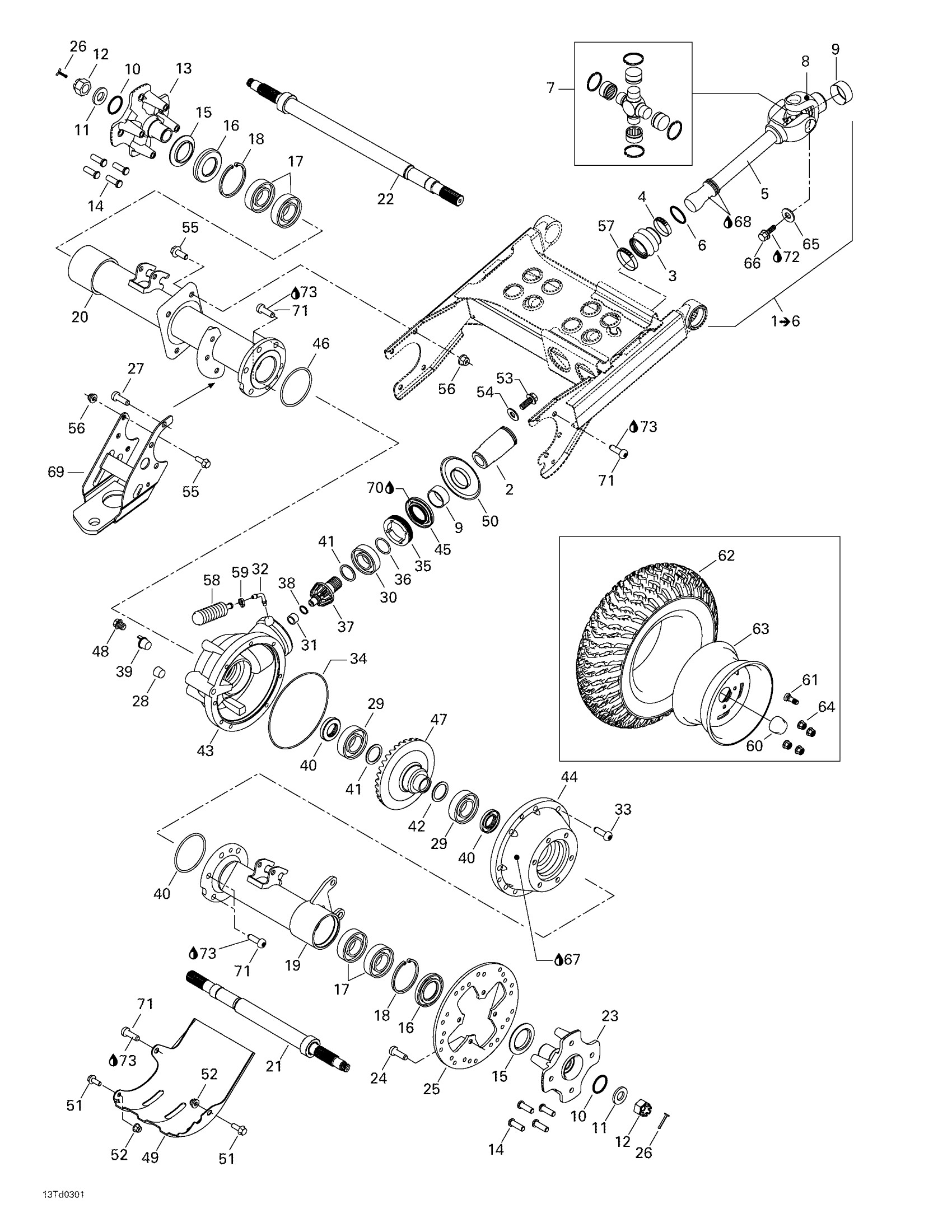

Can-Am Quest 650, 2003 05- Drive System, Rear Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

2

Front Bushing Shaft Kit | 4X4

703500678

$114.99

3

Protector

705400147

Unavailable

4

Collar | 4X4

705400148

Unavailable

5

REAR DRIVE AXLE ASS'Y - Call your local BRP dealership | Includes 3 to 9

705500405

Unavailable

6

SEALING RING - Call your local BRP dealership

705500315

Unavailable

7

Universal Joint

715900326

$68.99

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

8

Fixe Yoke

715900101

$29.49

Fixed Yoke Joint

715900116

$59.49

9

Wear Ring | 4X4

705400036

$26.49

10

O-RING - Call your local BRP dealership

705500271

Unavailable

11

WASHER - Call your local BRP dealership

250200019

Unavailable

12

Hex. Flange Castellated Nut M18

232291413

$7.98

13

Wheel Hub Ass'y | Includes 50 - 52.

705500254

Unavailable

14

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

15

WEAR RING - Call your local BRP dealership

705500100

Unavailable

16

OIL SEAL - Call your local BRP dealership

705500099

Unavailable

17

BALL BEARING - Call your local BRP dealership

705500251

Unavailable

18

RETAINING RING - Call your local BRP dealership

705500249

Unavailable

19

RH AXLE TUBE - Call your local BRP dealership

705500250

Unavailable

20

LH AXLE TUBE - Call your local BRP dealership

705500182

Unavailable

21

RH AXLE - Call your local BRP dealership

705500183

Unavailable

22

LH AXLE - Call your local BRP dealership

705500184

Unavailable

23

Rear wheel hub | Includes 35 - 39.

705500256

Unavailable

24

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

25

Brake disc

705600167

Unavailable

26

Cotter Pin

250400036

$2.11

27

Torx Screw M10 X 30

250000085

Unavailable

28

Drain Plug | 4X4

705500894

$11.49

29

Ball Bearing | 4X4

705401606

$51.99

30

Ball Bearing | 4X4

705500260

$31.99

31

Needle Bearing | 4X4

705500261

$19.99

32

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

33

Screw | 4X4

705401601

$10.49

34

Seal | 4X4

705500265

$18.76

35

Nut | 4X4

705401603

$35.99

36

O-Ring | 4X4

705500267

$7.65

37

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

38

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

39

Protector Plug

705500246

Unavailable

40

Gasket | 4X4

705401618

$18.49

41

Pinion Gear Shim .022"

705500075

Unavailable

42

Shim | 4X4

705401604

$57.99

43

Differential Carrier

705500177

Unavailable

44

Rear Cover

705500175

Unavailable

45

Oil Seal

705500248

Unavailable

46

O-RING - Call your local BRP dealership

705500263

Unavailable

47

Crown Gear

705500223

Unavailable

48

Fill level plug

705500228

Unavailable

49

Differential Protector, Black

705500185

Unavailable

50

JOINT PROTECTOR - Call your local BRP dealership

705500214

Unavailable

51

Hex. Flange Screw M8 X 16

207681644

$4.12

52

Hex. Flange Nut M8

233181414

$1.15

53

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

54

Flat Washer M10 | 4X4

250200014

$1.49

55

Hex. Flange Screw M10 X 25

207602544

$1.69

56

Hex. Flange Elastic Nut M10

233201414

$1.58

57

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

58

Rubber Bellow | 4X4

705400552

$6.14

59

Tie Wrap 94 mm | 4X4

293750001

$1.03

60

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

61

Rim Valve With Cap

705400193

$8.69

62

Tire 25X10R12 MST | Traxter CVT STD

705503225

$158.99

63

Rear Rim, Grey

705500239

Unavailable

Rear rim (black) | CAMO

705500424

Unavailable

Rear Rim, Chrome | Quest XT.

705500339

Unavailable

64

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

65

Washer

211200041

$3.17

66

HEX. FLANGED SCREW M8 X 16 - Call your local BRP dealership

207681686

Unavailable

67

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

68

Graisse *Grease

293550062

$15.99

69

Trailer Hook, Black

705500244

Unavailable

70

Synthetic Grease, 400 G

293550010

Unavailable

71

Torx Screw M10 X 30

250000085

Unavailable

72

Loctite 271, 10 ml

293800005

$26.99

73

Loctite 609, 10 ml

413703100

$26.99
