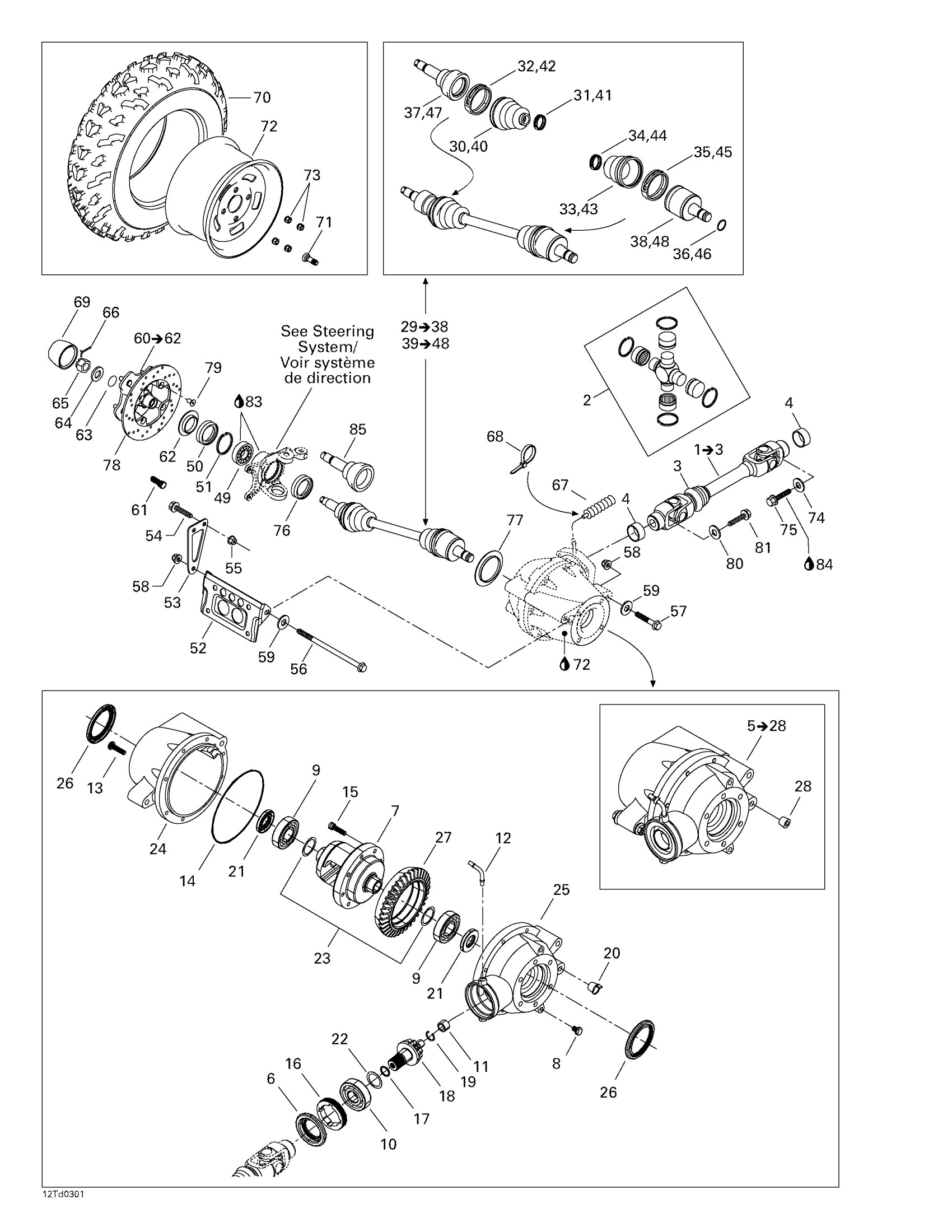

Can-Am Quest 650, 2003 05- Drive System, Front Diagram

#

Description
Price

1

Drive axle | Includes 1 - 2.

703500143

Unavailable

2

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

3

PROTECTOR - Call your local BRP dealership

705400051

Unavailable

4

Wear Ring | 4X4

705400036

$26.49

5

Front differencial ass'y | Includes 5 - 27.

705400086

Unavailable

6

Oil Seal | 4X4

705401481

$19.49

7

DIFFERENTIAL - Call your local BRP dealership

705400404

Unavailable

8

Drain Plug | 4X4

705500894

$11.49

9

Ball Bearing | 4X4

705401606

$51.99

10

Ball Bearing | 4X4

705500260

$31.99

11

Needle Bearing | 4X4

705500261

$19.99

12

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

13

Screw | 4X4

705401601

$10.49

14

Seal | 4X4

705500265

$18.76

15

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

Unavailable

16

Nut | 4X4

705401603

$35.99

17

O-Ring | 4X4

705500267

$7.65

18

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

19

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

20

Protector Plug

705500246

Unavailable

21

Gasket | 4X4

705401618

$18.49

22

Pinion Gear Shim 1.67 mm

705502061

$18.99

23

Shim | 4X4

705401604

$57.99

24

Front Cover

705400099

Unavailable

25

Differential Carrier

705500177

Unavailable

26

OIL SEAL - Call your local BRP dealership

705400019

Unavailable

27

Crown Gear

705400103

Unavailable

28

Fill level plug

705500228

Unavailable

29

RH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400125

Unavailable

30

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$42.49

31

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

32

Clamp | 4X4

705400180

Unavailable

33

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$42.49

34

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

35

Clamp | 4X4

705400181

Unavailable

36

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

37

CV JOINT - Call your local BRP dealership

705400093

Unavailable

38

RH Plunging Joint

705400128

Unavailable

39

LH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400124

Unavailable

40

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$42.49

41

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

42

Clamp | 4X4

705400180

Unavailable

43

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$42.49

44

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

45

Clamp | 4X4

705400181

Unavailable

46

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

47

CV JOINT - Call your local BRP dealership

705400093

Unavailable

48

LH Plunging Joint

705400129

Unavailable

49

Ball Bearing

293350150

$52.99

50

OIL SEAL - Call your local BRP dealership

705500099

Unavailable

51

Circlip

293370019

$4.68

52

Bracket (Differential)

705400068

Unavailable

53

RH Diffential Front Bracket

705400069

Unavailable

54

Hex. Flange Screw M8 X 20

207682044

$1.15

55

Hex. Flange Elastic Nut M8

233281414

$1.47

56

Flange Screw M10 X 200, Scotch Grip

250000024

Unavailable

57

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership | 7413/7414. 7415/7416. 7417/7418.

207506044

Unavailable

58

Hex. Flange Nut M10

233101414

$4.97

59

Flat Washer

250200003

Unavailable

60

Wheel Hub Ass'y | Includes 50 - 52.

705500254

Unavailable

61

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

62

WEAR RING - Call your local BRP dealership

705500100

Unavailable

63

O-RING - Call your local BRP dealership

705500271

Unavailable

64

WASHER - Call your local BRP dealership

250200019

Unavailable

65

Hex. Flange Castellated Nut M18

232291413

$7.98

66

Cotter Pin

250400036

$2.11

67

Rubber Bellow | 4X4

705400552

$6.14

68

Tie Wrap 94 mm | 4X4

293750001

$1.03

69

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

70

Tire 205 X 80 R12

705402890

$153.49

71

Rim Valve With Cap

705400193

$8.69

72

Front Rim

705400010

Unavailable

Front Rim | 7423/7424 (XT-Yellow/Jaune).

705400072

Unavailable

Front Rim black (camo) | CAMO

705400202

Unavailable

Front Rim

705400010

Unavailable

73

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

74

Washer

211200041

$3.17

75

HEX. FLANGED SCREW M8 X 16 - Call your local BRP dealership

207681686

Unavailable

76

Oil Seal | 4X4

293250090

$24.49

77

Wear Ring

705400016

Unavailable

78

Brake disc 205 mm

705600168

Unavailable

79

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

80

Flat washer | 4 X 4

235200014

Unavailable

81

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

82

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

83

Synthetic Grease, 400 G

293550010

Unavailable

84

Loctite 271, 10 ml

293800005

$26.99

85

Shaft stud | 2 X 4 Quest STD 500.

705400164

Unavailable
