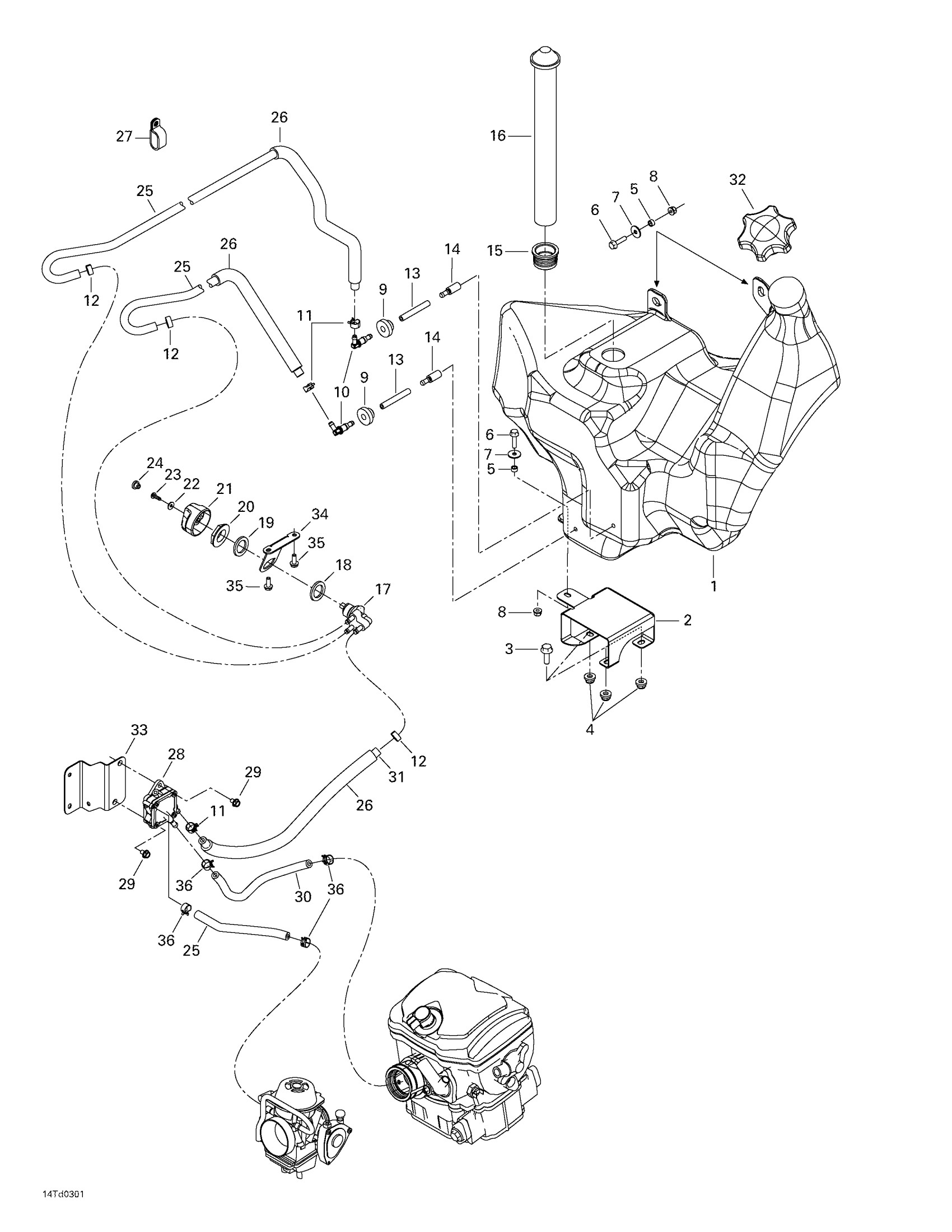

Can-Am Quest 650, 2003 02- Fuel Tank Diagram

#

Description
Price

1

Fuel Tank

709000035

Unavailable

2

Fuel Tank Support, Black

709000039

Unavailable

3

Hex. Flange Screw M8 X 20

207682044

$1.15

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Bushing | DS 650 X

293900104

$5.50

6

Hex. Flange Screw M6 X 25

207662544

$0.64

7

Flat Washer

224061201

$1.37

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Grommet

570045500

$6.69

10

Elbow Male Connector

414580600

$4.23

11

Spring Clamp

414415200

$0.88

12

Oetiker Clamp

293650042

$3.09

13

Polyurethane Hose 10000Mm Long

219704410

$56.99

14

Fuel Filter

414865700

$10.99

15

Grommet

293720058

$11.99

16

Fuel gauge

709000033

Unavailable

17

Fuel Valve

275500098

$43.99

18

GASKET - Call your local BRP dealership

293250004

Unavailable

19

Washer

250200015

Unavailable

20

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

21

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

22

Flat Washer 4 mm

234040600

$0.55

23

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

24

Black, Cap

275500241

$3.49

25

Hose

219704549

$50.99

26

Was 409901800 Tubing (13 mm)

219704400

$14.49

27

Open Clamp

709000057

$5.39

28

FUEL PUMP - Call your local BRP dealership

707200000

Unavailable

29

Hex. Flange Screw M6 X 10

210261040

$1.48

30

FORMED HOSE - Call your local BRP dealership

709000047

Unavailable

31

Formed Hose

709000068

Unavailable

32

FUEL CAP - Call your local BRP dealership

709000059

Unavailable

33

Pump Support

709000040

Unavailable

34

Valve Support, Black

709000070

Unavailable

35

Hex. Flange Screw M6 X 16

210261650

$1.67

36

Oetiker Clamp

293650042

$3.09
