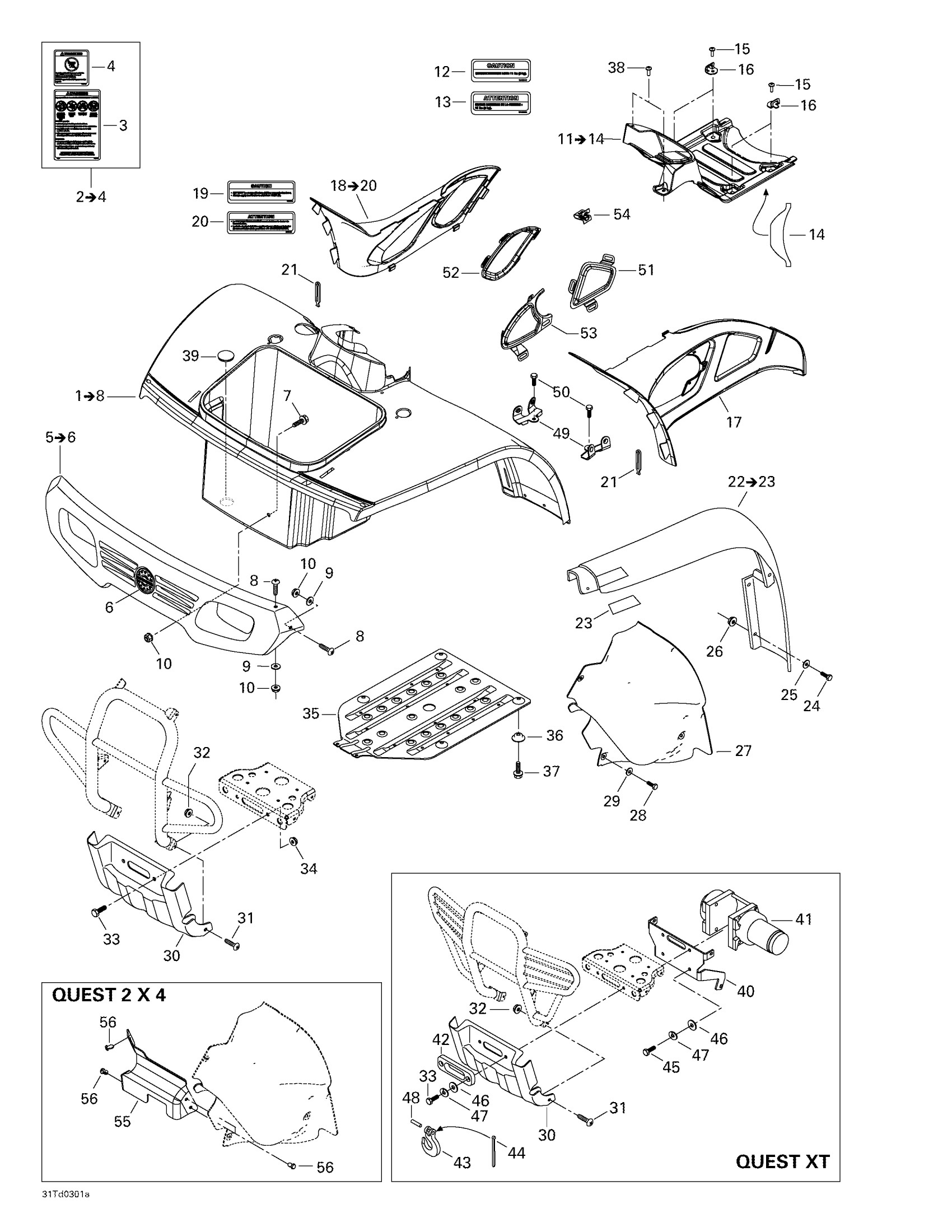

Can-Am Quest 500, 2003 09- Body And Accessories, Front View Diagram

#

Description
Price

1

Front fender kit | Includes 1 - 8. XT YELLOW Quest XT 650.

703500235

Unavailable

Front fender kit | STD GREEN Quest STD 500. Quest STD 650.

703500239

Unavailable

Front fender kit | BLUE Quest STD 500. Quest STD 650.

703500247

Unavailable

Front fender kit | RED Quest STD 500. Quest STD 650.

703500229

Unavailable

Front fender kit | STD CAMO Quest STD 500. Quest STD 650.

703500233

Unavailable

Front fender kit | XT CAMO Quest XT 650.

703500231

Unavailable

Front fender kit | STD YELLOW Quest STD 500. Quest STD 650.

703500237

Unavailable

Front fender kit | XT GREEN Quest XT 650.

703500245

Unavailable

2

Warning Label | Includes 9 - 10.

704900034

Unavailable

3

Warning Decal, Death And Injuries

704900002

Unavailable

4

Warning Decal, Under 16 Years Old | French Version

704900012

Unavailable

5

Front fascia | Includes 9 - 10.

703500152

Unavailable

Front fascia | CAMO

705000594

Unavailable

6

BRP Logo 68mm

516008739

$16.99

7

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

8

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

8

Flat Washer

224060201

$1.26

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Dash-board ass'y | Includes 11 - 14. BLUE Quest STD 500. Quest STD 650.

703500182

Unavailable

Dash-board ass'y | GREEN

703500183

Unavailable

Dash-board ass'y | RED Quest STD 500. Quest STD 650.

703500184

Unavailable

Dash-board ass'y | YELLOW

703500185

Unavailable

Dash-board ass'y | CAMO

703500209

Unavailable

12

CAUTION DECAL, CONSOLE LOAD - Call your local BRP dealership | English Version

704900247

Unavailable

13

Caution Decal, Console Load | French Version

704900250

Unavailable

14

Reflective Sheet

705000541

Unavailable

15

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

16

HOOK, BLACK - Call your local BRP dealership

705000369

Unavailable

17

LH cover | Quest (Blue/Bleu).

705000203

Unavailable

LH cover | Quest (Green/Vert).

705000334

Unavailable

LH Panel, yellow | Yellow

705000405

Unavailable

LH Panel, red | Viper Red

705000570

Unavailable

LH cover | CAMO

705000625

Unavailable

18

RH cover | Quest (Green/Vert).

703500155

Unavailable

RH Panel, Red | RED Quest STD 500. Quest STD 650.

703500223

Unavailable

RH panel | (English Warn Labels Installed) Quest XT.

703500156

Unavailable

RH cover | CAMO

703500225

Unavailable

RH cover | Includes 22 - 24. Quest (Blue/Bleu).

703500154

Unavailable

19

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

20

Caution Decal, Transmission Selector | French version

704900008

Unavailable

21

Windshield Latch

570023800

$4.49

22

LH front mudguard | Includes 26 - 27.

703500148

Unavailable

LH front mudguard | CAMO

703500211

Unavailable

RH front mudguard

703500149

Unavailable

RH front mudguard | CAMO

703500212

Unavailable

23

LH FRONT REFLECTOR - Call your local BRP dealership

705000083

Unavailable

RH FRONT REFLECTOR - Call your local BRP dealership

705000026

Unavailable

24

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

25

Flat Washer

224060201

$1.26

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

LH TANK PROTECTOR - Call your local BRP dealership

705000133

Unavailable

LH protector | 2 X 4 Quest STD 500. Quest STD 650.

705000533

Unavailable

RH TANK PROTECTOR - Call your local BRP dealership

705000134

Unavailable

RH protector | 2 X 4 Quest STD 500. Quest STD 650.

705000534

Unavailable

28

Hex. Flange Screw M6 X 16

210261650

$1.67

29

Flat Washer

224061201

$1.37

30

Protector plate

705000340

Unavailable

Protector plate | CAMO

705000601

Unavailable

31

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Hex. Flange Screw M10 X 25

207602544

$1.69

Socket Screw 5/16-18 X 1 1/2" | Traxter 5 Speed XT

250000042

Unavailable

34

Hex. Flange Elastic Nut M10

233201414

$1.58

35

SKID PLATE - Call your local BRP dealership

705200536

Unavailable

36

CUP - Call your local BRP dealership

705200533

Unavailable

37

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

38

Tuflock Phillips Plastic Screw

414745900

$1.69

39

Rubber Cover

570041600

Unavailable

40

Mouting plate | 7423/7424 (XT-Yellow/Jaune).

705000184

Unavailable

41

WINCH - Call your local BRP dealership | 7423/7424 (XT-Yellow/Jaune).

705000185

Unavailable

42

CABLE GUIDE - Call your local BRP dealership

705000194

Unavailable

43

Winch Hook Kit

705014949

$24.99

44

Cotter Pin

250400022

$9.69

45

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

Unavailable

46

Flat Washer 8 mm

234081410

$0.83

47

Lock Washer 8 mm

234181401

$0.92

48

Clevis Pin

250400021

$13.18

49

Bracket, Black

705000311

Unavailable

50

Hex. Forming Screw M6 X 10

210261050

$1.69

51

LH Rear Grill, Black

705000367

Unavailable

52

RH Rear Grill, Black

705000366

Unavailable

53

LH Front Grill

705000368

Unavailable

54

Edge Clip

517302785

$0.88

55

Protector | 2 X 4 Quest STD 500. Quest STD 650.

705000408

Unavailable

56

Tuflok Plastic Rivet

293150230

$1.47
