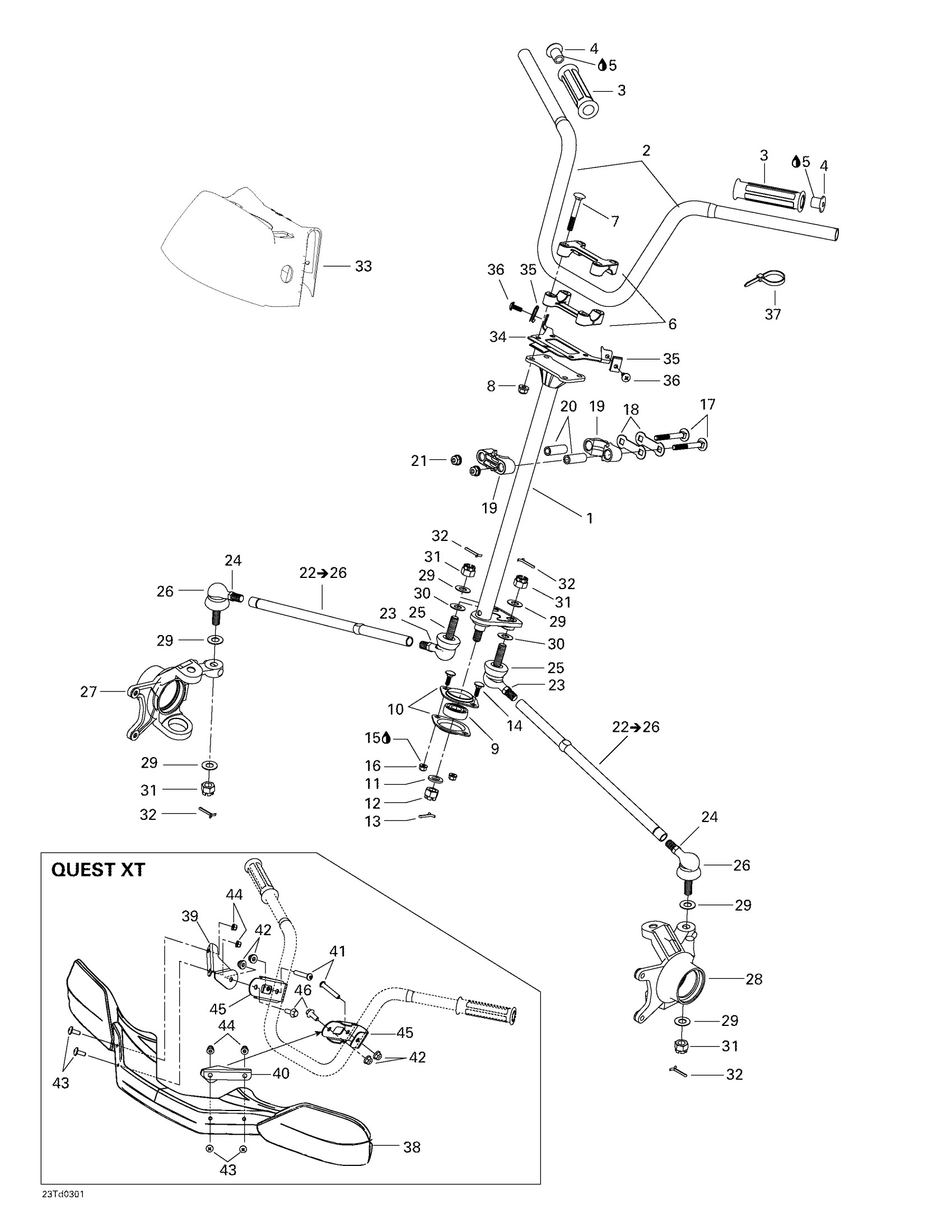

Can-Am Quest 500, 2003 07- Steering System Diagram

#

Description
Price

1

Main Tube, Black

709400089

Unavailable

2

HANDLE BAR - Call your local BRP dealership

709400199

Unavailable

3

Handle Grip

709400493

$14.83

4

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

5

Loctite 406, 7 Oz

293800100

$36.99

6

Steering Clamp

709400028

Unavailable

7

CARRIAGE BOLT M8 X 65 - Call your local BRP dealership

207786544

Unavailable

8

Hex. Flange Elastic Nut M8

233281414

$1.47

9

Ball Bearing

709400439

$19.49

10

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

11

Flat Washer 12 mm

234021410

$0.72

12

Hex. Castellated Nut M12

232221414

$3.17

13

Cotter Pin

211400017

$0.33

14

Carriage Bolt M6 X 25

207762544

$1.69

15

Loctite 243, 10 ml

293800060

$21.49

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Carriage Bolt M8 X 70

207787044

$1.37

18

Stopper Plate

506150600

$4.39

19

HALF-HOUSING - Call your local BRP dealership

709400034

Unavailable

20

Housing Bushing

506150500

$7.99

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

ROD-TIE ASS'Y - Call your local BRP dealership

709400489

$174.99

23

Nut Hexagonal RH.

232026414

$1.48

24

LH HEX. JAM NUT M12 - Call your local BRP dealership

732610020

Unavailable

25

RH Ball Joint

709402302

$36.99

26

LH Ball Joint

709402303

$36.99

27

RH Knuckle

709400095

Unavailable

28

LH KNUCKLE - Call your local BRP dealership

709400097

Unavailable

29

Hardened Washer

706200281

$2.85

30

Washer

503189276

$3.28

31

Hex. Castellated Nut M12

232221414

$3.17

32

Cotter Pin

211400013

$0.37

33

Steering cover (black) | Includes 28 - 9.

703500019

Unavailable

Steering cover (grey) | CAMO

703500205

Unavailable

34

Cover Support, Black | 7415/7416. 7417/7418.

709400077

Unavailable

35

Speednut M6

211100050

Unavailable

36

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

37

Tie-Rap 180 mm

414115200

$0.11

38

Hand Protector | 7423/7424 (XT-Yellow/Jaune).

705000183

Unavailable

39

RH Support | Traxter XT.

709400116

Unavailable

40

LH Support | Traxter XT.

709400117

Unavailable

41

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

42

Hex. Flange Elastic Nut M8

233281414

$1.47

43

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

45

U Shaped Bracket

709400118

Unavailable

46

Hex. Flange Screw M8 X 20

207682044

$1.15
