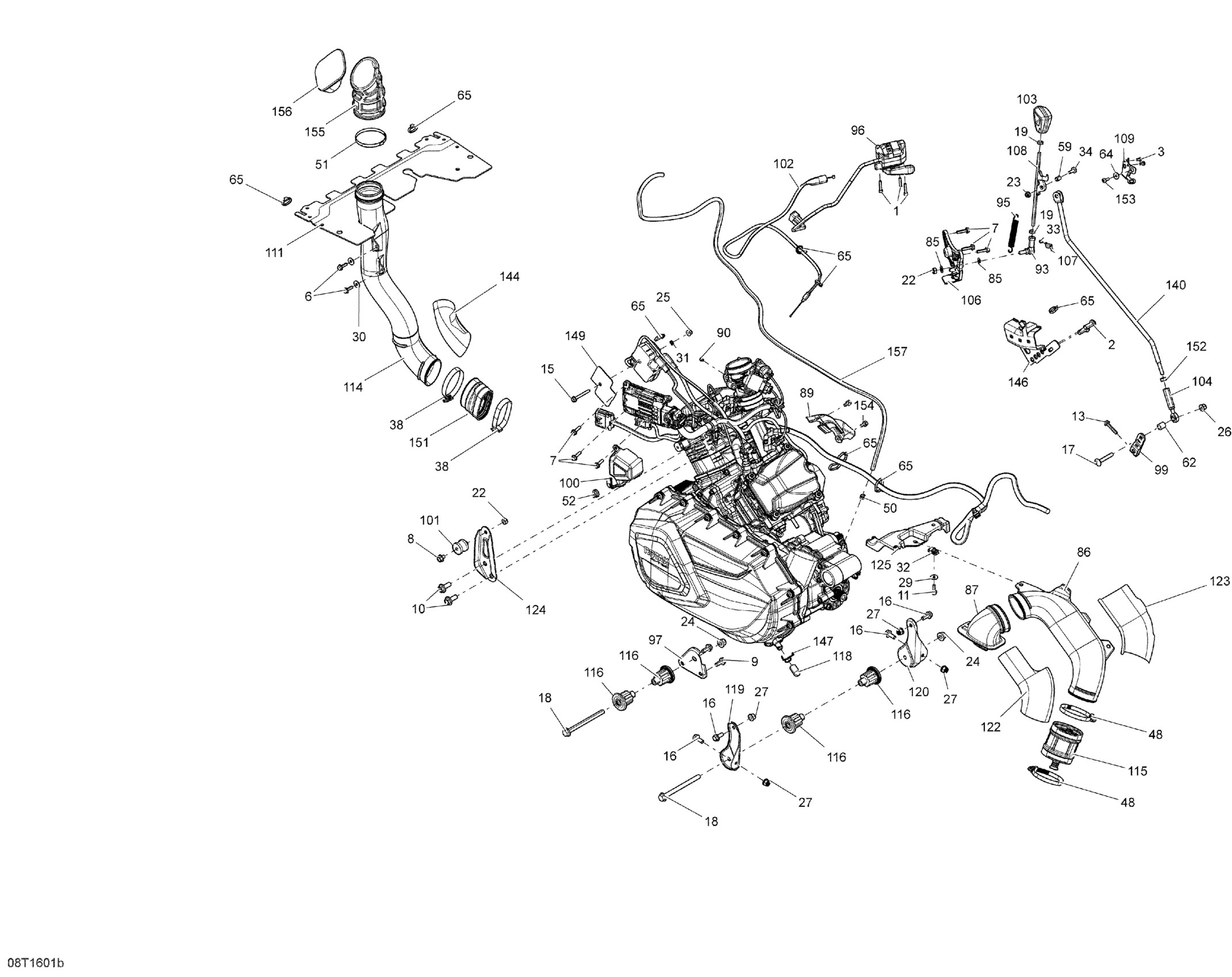

Can-Am 003 - Outlander L - 570 EFI 0002CGA00 0002CGB00 0002CGC00 0002CGD00 0002CGE00 0002CGF00 0002CGG00 0002EGA00 0002FGA00 0002FGB00 0002FGC00 0002FGD00 0002FGE00 0002FGF00 0002TGA00 0002TGB00 0002TGC00 0003ZGA00 0004AGA00 01- Engine and Engine Support - 570 EFI Diagram

#

Description
Price

1

Socket Head Screw M5 X 25

205052588

$1.90

2

Screw Socket M10 X 25 | Europe

205402556

$3.91

3

Socket Head Screw M5 X 10

205951046

$2.43

6

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

7

Hex. Flange Screw M6 X 25

207562544

$1.69

8

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

9

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

10

Hex. Flange Screw M10 X 25

207602544

$1.69

11

Hex. Flange Screw M6 X 20

207662044

$2.00

13

Hex. Flange Screw M6 X 35

207663544

$0.90

15

Hex. Flange Screw M6 X 50

207665044

$4.12

16

Hex. Flange Screw M8 X 20

207682046

$1.90

17

Carriage Bolt M8 X 50 | DS 650 X

207785044

$7.41

18

Hex. Flange Screw M10 X 125

230602546

$7.41

19

Hex. Jam Nut M8

232180600

$0.67

23

Hex. Flange Nut M6

233161414

$2.11

24

Hex. Flange Elastic Nut M10

233201436

$2.11

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

26

Hex. Flange Elastic Nut M8

233281414

$1.47

27

Hex. Elastic Flange Nut M8

233281416

$1.48

29

Flat Washer 6 mm

234062410

$0.77

30

Flat Washer M6, Stainless

234062600

$0.77

31

External Serrated Lock Washer 6 mm

234461608

$1.15

32

Panel Nut M6 X 1.0

250100198

$2.11

33

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

34

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

38

Norma Clamp

293650091

$11.12

48

Norma Gear Clamp

293650118

$13.16

50

Clamp, Oetiker

293650195

$1.09

52

Tie Wrap 142 mm

293750002

$1.25

59

Bushing

293900019

$7.73

62

Bushing

293900106

$4.55

64

Washer | DS 650 X

391301600

$0.48

65

Tie-Rap 180 mm

414115200

$0.11

85

Washer

506151252

$3.17

86

Air Outlet

706600019

$37.99

87

CVT Cooling Duct Out

706600400

$54.99

89

Cover OPS

707000410

$13.24

90

Cable Guide

707000434

$11.60

93

RH Ball Joint

707001959

$36.99

95

Spring

707000577

$10.99

96

Throttle Handle | 4X4

707000595

$214.99

97

Engine Support

707003319

$10.99

99

Lever

707000911

$20.49

100

Cover

707000945

$6.67

101

Rubber Isolator

707000949

$11.49

102

Throttle Cable

707000955

$13.24

103

Lever Trim

707003211

$8.49

104

Ball Joint Ass'y | Includes 55 to 56

707000966

$36.99

106

Lever Support

707003054

$6.67

107

SPEED LIMITER - Call your local BRP dealership | Europe

707000994

Unavailable

108

Shift Arm | Except Europe

707000840

$16.87

108

Shift Arm | Europe

707001003

$18.55

109

Fixing Plate | Europe

707001042

$39.99

111

Upper Water Deflector

707001124

$22.49

114

CVT Air Inlet

707002067

$53.99

115

CVT Air Outlet Adaptor

707001168

$15.99

116

Vibration Damper

707001169

$42.99

118

Plug

707001185

$1.15

119

LH Rear Engine Bracket

707001193

$16.99

120

RH Rear Engine Bracket

707001194

$16.99

122

Heat Shield

707001205

$10.49

123

Heat Shield

707001206

$10.49

124

Upper Engine Bracket

707001256

$13.49

125

Air Outlet Support

707001262

$9.89

140

Shifter Rod

707002085

$33.99

144

Heat Shield

707001654

$2.59

146

Upper Cable Support

707001955

$10.49

147

Retainer Clip

707800506

$12.63

149

Insulator Pad

710000073

$11.12

151

Flexibale Adaptor

707002585

$10.99

152

Hex. Nut M8, LH Threads

250100144

$2.00

153

Torx Screw K50 X 16

250000720

$1.69

154

Hex. Flange Screw M6 X 12

210261250

$1.90

157

Polyurethane Hose 10000Mm Long

219704410

$56.99
