Description

Price

1a

Drive Gear Ass'y | Includes 1a to 28

420684224

$1,515.99

1b

Bevel Gear Ass’y

420635558

$659.99

2

Washer Thrust Set

420281300

$95.49

3

Ball Bearing 6405

420632280

$98.49

4

O-Ring

420430373

$3.17

5

Oil Seal

420650683

$19.49

6

Ball Bearing

420932822

$30.49

7

Thrust Washer Set, MAG Side

420281306

$61.49

8

Axial Needle Bearing

420632300

$18.49

9a

Gear Wheel Set | 400HO, Includes 2a to 7

420281285

$499.99

9b

Needle Bearing

420632070

$25.99

10

Retaining Ring

420245850

$5.31

11

Sliding Gear 44T

420635582

$148.49

12

Pinion Gear 36T

420635572

$104.99

13

Thrust Washer

420427010

$3.98

14

Pinion Gear 36T

420635572

$104.99

15

Thrust Washer Set, CVT Side

420281302

$86.99

16a

Countershaft Ass'y, 11 Teeth | Includes 10 to 18

420620441

Unavailable

16b

Countershaft 11T

420220972

$137.99

17

Thrust Washer

420227862

$3.98

18

Needle Bearing

420632070

$25.99

19

Pinion Gear 25T

420635602

$79.99

20

Circlip

420445302

$4.12

21

Pinion Gear 16T

420635214

$74.99

22

O-Ring

420631612

$4.33

23

Distance Ring

420247125

$20.99

24a

INTERMEDIATE GEAR SHAFT ASS'Y - Call your local BRP dealership | Includes 16a to 20

420635673

Unavailable

24b

Needle Pin

420229600

$37.99

25

Intermediate Gear 25T

420635674

$87.99

26

Needle Cage

420432034

$35.99

27

Thrust Washer

420944192

$2.61

28

Distance Ring

420247122

$8.09

29

Pin

420229540

$20.99

30

Shift Fork

420257332

$124.99

31

Shift Fork

420257342

$104.99

32

Shift Drum

420257329

$179.99

33

Isolating Washer

420627782

$5.50

34

Index Spring

420238290

$11.12

35

Step Ring

420227717

$12.12

36

Index Lever Kit

703500254

$52.99

37

Torx Screw M6 X 16

420241529

$2.11

38

Shift Shaft Ass'y

420620136

$98.99

39

Parking Lock Lever

420257316

$58.99

40

Torx Flange Screw M8 X 25

420440372

$4.12

41

Bearing Cover

420610243

$58.99

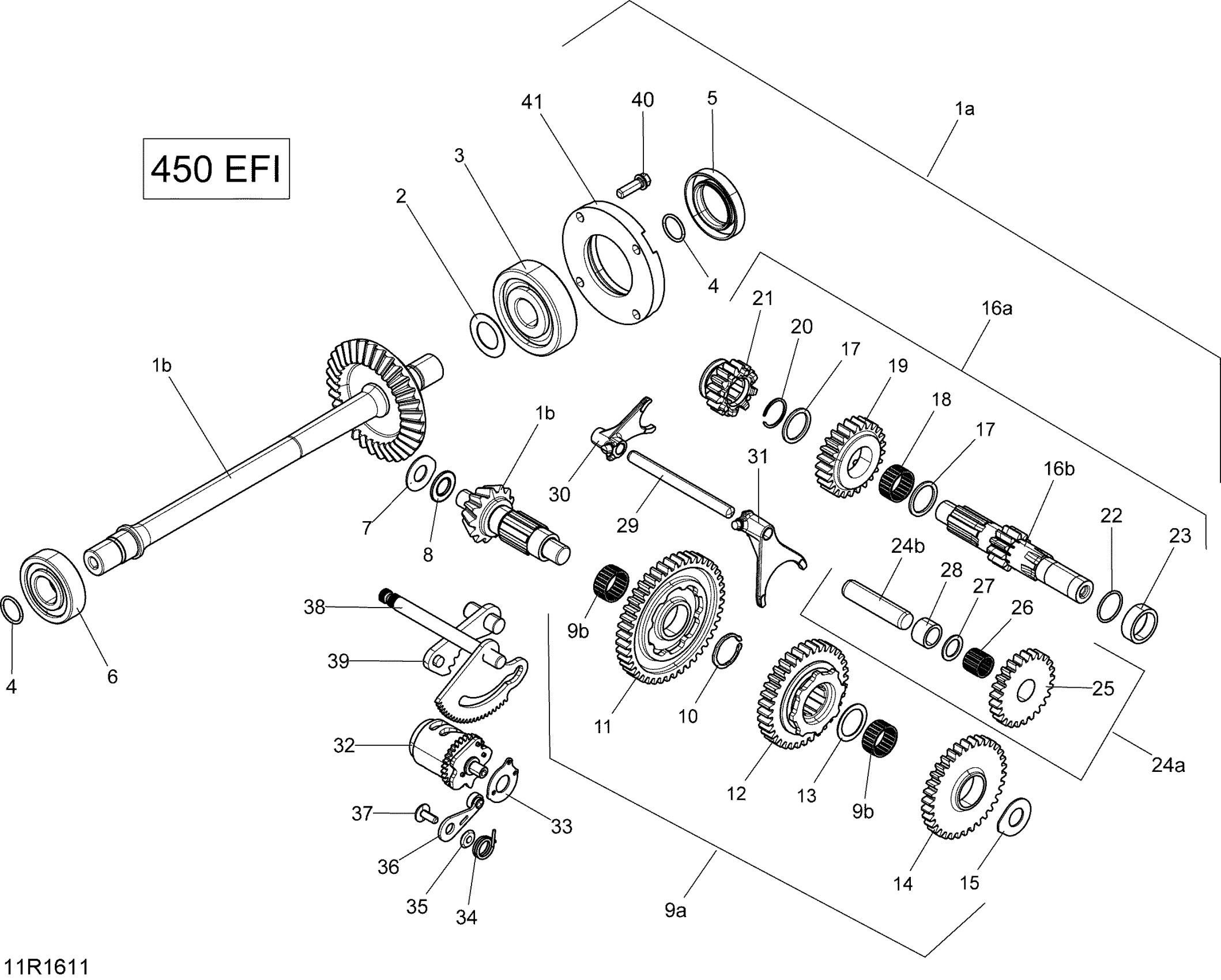

Can-Am 002 - Outlander L - 450 EFI - PRO Package 0003NGA00 0003NGB00 0003NGC00 0003NGD00 0003NGE00 05- Gear Shift - 450 EFI Diagram

Drive Gear Ass'y | Includes 1a to 28

Bevel Gear Ass’y

Washer Thrust Set

Ball Bearing 6405

O-Ring

Oil Seal

Ball Bearing

Thrust Washer Set, MAG Side

Axial Needle Bearing

Gear Wheel Set | 400HO, Includes 2a to 7

Needle Bearing

Retaining Ring

Sliding Gear 44T

Pinion Gear 36T

Thrust Washer

Pinion Gear 36T

Thrust Washer Set, CVT Side

Countershaft Ass'y, 11 Teeth | Includes 10 to 18

Countershaft 11T

Thrust Washer

Needle Bearing

Pinion Gear 25T

Circlip

Pinion Gear 16T

O-Ring

Distance Ring

INTERMEDIATE GEAR SHAFT ASS'Y - Call your local BRP dealership | Includes 16a to 20

Needle Pin

Intermediate Gear 25T

Needle Cage

Thrust Washer

Distance Ring

Pin

Shift Fork

Shift Fork

Shift Drum

Isolating Washer

Index Spring

Step Ring

Index Lever Kit

Torx Screw M6 X 16

Shift Shaft Ass'y

Parking Lock Lever

Torx Flange Screw M8 X 25

Bearing Cover
