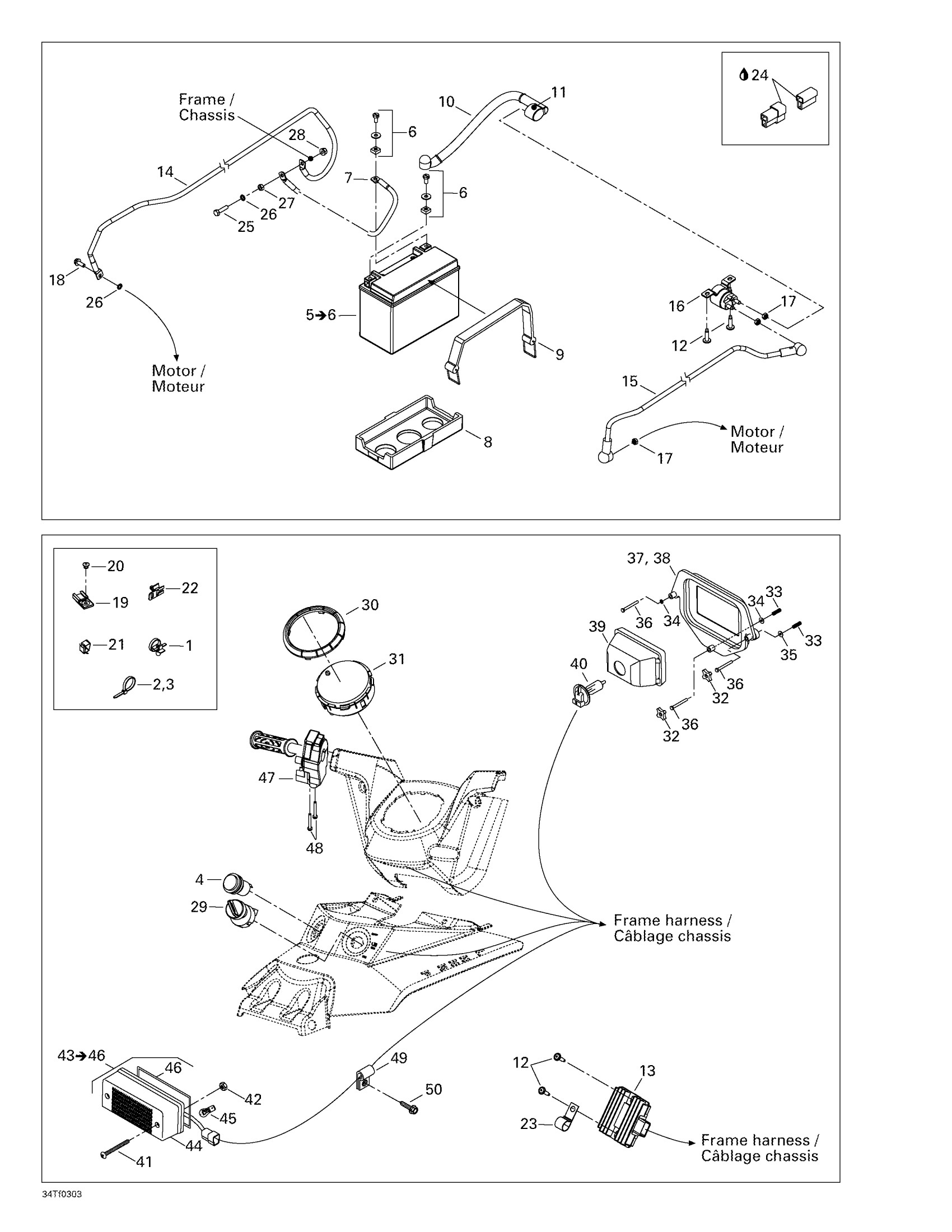

Can-Am Outlander 400, 2003 10- Battery And Electrical Accessories Diagram

#

Description
Price

1

Tie-Rap 173 mm

293750009

$1.04

2

Tie Wrap 94 mm | 4X4

293750001

$1.03

3

Tie-Rap 180 mm

414115200

$0.11

4

Outlet Power Kit, 12 Volts

861507200

$36.99

5

Battery, 13 Amperes | Includes 7 to 8

710000283

$154.99

6

Battery Bolt Kit

250000282

$7.29

7

Battery Ground Cable | Includes 1 To 2

710000259

Unavailable

8

INSULATOR PAD - Call your local BRP dealership

710000279

Unavailable

9

Retainer Strap

293850097

$11.64

10

Positive Cable | Includes 10 - 11.

710000260

Unavailable

11

Protector Cap

710000393

$9.59

12

Torx Screw M6 X 25 | XT Models

250000728

$4.44

13

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Starter Relay

515176011

$62.49

17

Hex. Elastic Stop Nut M6

232561600

$1.15

18

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

19

Clip

270000141

$11.49

20

Pop Rivet 3/16"

390402400

$0.35

21

Clip

414227300

$1.67

22

Housing Support

515175283

$9.19

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

25

Hex. Screw M6 X 25

207162544

$1.15

26

External Serrated Lock Washer 6 mm

234461608

$1.15

27

Hex. Nut M6

232061414

$0.53

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Switch_Ignition

710007867

$87.99

29

Key, Groove on Left Side

715900019

$26.49

30

TRIM RING - Call your local BRP dealership

710000353

Unavailable

31

Speedometer

710000286

Unavailable

32

Handle

572106600

$10.33

33

SPRING - Call your local BRP dealership

710000285

Unavailable

34

Flat Washer 4 mm, Stainless

234042600

$1.15

35

Flat Washer 4 mm

234040600

$0.55

36

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

37

RH Headlight Support

710000236

Unavailable

38

LH HEADLIGHT SUPPORT - Call your local BRP dealership

710000277

Unavailable

39

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

40

BULB - Call your local BRP dealership

710000176

Unavailable

41

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

42

Hex. Flange Elastic Nut M5

233251414

$1.04

43

Tail Light Housing

710000102

Unavailable

44

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

45

Bulb

520000758

$9.10

46

GASKET - Call your local BRP dealership

710000129

Unavailable

47

Multi-Fonction Handle | Includes 9 To 11

710000311

Unavailable

48

SOCKET SCREW M5 X 35 - Call your local BRP dealership

205453546

Unavailable

49

Open Clamp

414176000

$1.99

50

Hex. Flange Screw M6 X 16

210261650

$1.67
