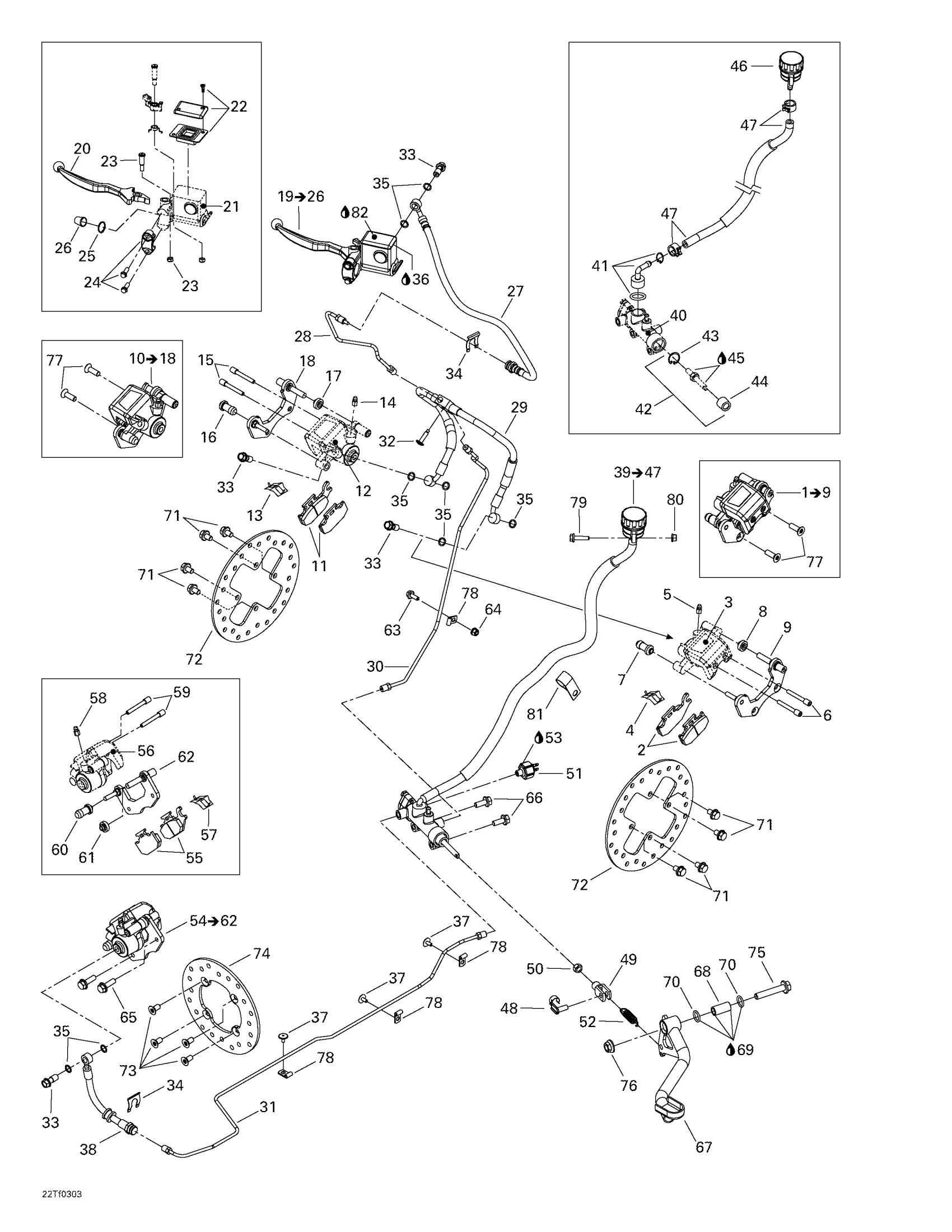

Can-Am Outlander 400, 2003 06- Hydraulic Brake Diagram

#

Description
Price

1

RH Caliper | Includes 1 to 9

705600575

$280.99

2

Brake Pad Kit

705600349

$51.99

3

Piston Set

705600294

Unavailable

4

Spring

705600079

$15.81

5

Bleeding Screw

705600080

$16.87

6

Pin Set (2)

705600081

$20.49

7

Compression Boot

705600082

$10.06

8

Compression Boot

705600083

$10.06

9

LH Caliper Support

705600297

Unavailable

10

LH Caliper | Includes 10 to 18

705600576

$280.99

11

Brake Pad Kit

705600350

$51.99

12

Piston Set

705600294

Unavailable

13

Spring

705600079

$15.81

14

Bleeding Screw

705600080

$16.87

15

Pin Set (2)

705600081

$20.49

16

Compression Boot

705600082

$10.06

17

Compression Boot

705600083

$10.06

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Front Master Cylinder | Includes 19 to 26

705600844

$229.99

20

Lever Arm

705600243

$54.99

21

PISTON KIT - Call your local BRP dealership

705600244

Unavailable

22

Cap Set

705600084

$24.99

23

Brake Lever Bolt Kit

705600246

$14.81

24

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

25

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

26

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

27

Front brake handle hose

705600209

Unavailable

28

Vertical tube

705600206

Unavailable

29

Brake hose

705600211

Unavailable

30

Union tube

705600252

Unavailable

31

Rear rigid tube

705600210

Unavailable

32

Torx Screw M6 X 25 | XT Models

250000728

$4.44

33

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

34

Hose retainer

705600253

Unavailable

35

Washer

414920600

$1.90

36

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

37

Pop Rivet 3/16"

390406500

$0.88

38

Flexible hose

705600208

Unavailable

39

Rear Master Cylinder | Includes 33 to 40

705600254

$224.99

40

Piston Set

705600255

$64.49

41

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

42

REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership

705600154

Unavailable

43

Circlip

705600068

Unavailable

44

Compression Boot

705600090

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Oil Tank, Brake Fluid Reservoir

705600182

$38.99

47

OIL HOUSING HOSE - Call your local BRP dealership

705600262

Unavailable

48

Pin Kit

219702305

$34.99

49

Yoke

705600100

Unavailable

50

Hex. Nut M8

232081414

$0.72

51

Interrupteur *Brake Switch

710001345

$36.99

52

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

53

Was 293800013 Loctite 56765

219704454

$65.99

54

REAR CALIPER - Call your local BRP dealership | Includes 54 - 62.

705600263

Unavailable

55

Brake Pad Kit

705600014

$51.99

56

Piston Set

705600295

Unavailable

57

Spring

705600079

$15.81

58

Bleeding Screw

705600080

$16.87

59

Pin Set (2)

705600081

$20.49

60

Compression Boot

705600082

$10.06

61

Compression Boot

705600083

$10.06

62

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

63

Hex. Flange Screw M6 X 16

207661644

$0.74

64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

65

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

66

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

67

BRAKE PEDAL - Call your local BRP dealership

705600265

Unavailable

68

SPACER - Call your local BRP dealership

705600283

Unavailable

69

Synthetic Grease, 400 G

293550010

Unavailable

70

O-RING - Call your local BRP dealership

293300053

Unavailable

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

72

Disk Brake

705600603

$50.99

73

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

74

Disk Brake

705600604

$50.99

75

Hex. Flange Screw M10 X 55

207605544

$3.38

76

Hex. Flange Elastic Nut M10

233201414

$1.58

77

Torx Screw Scotch Grip M8 X 25

235382546

Unavailable

78

Open clamp

705600308

Unavailable

79

Hex. Flange Screw M6 X 25

207662544

$0.64

80

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

81

Not Available As Spare Part - Friction Washer

Unavailable

80

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99
