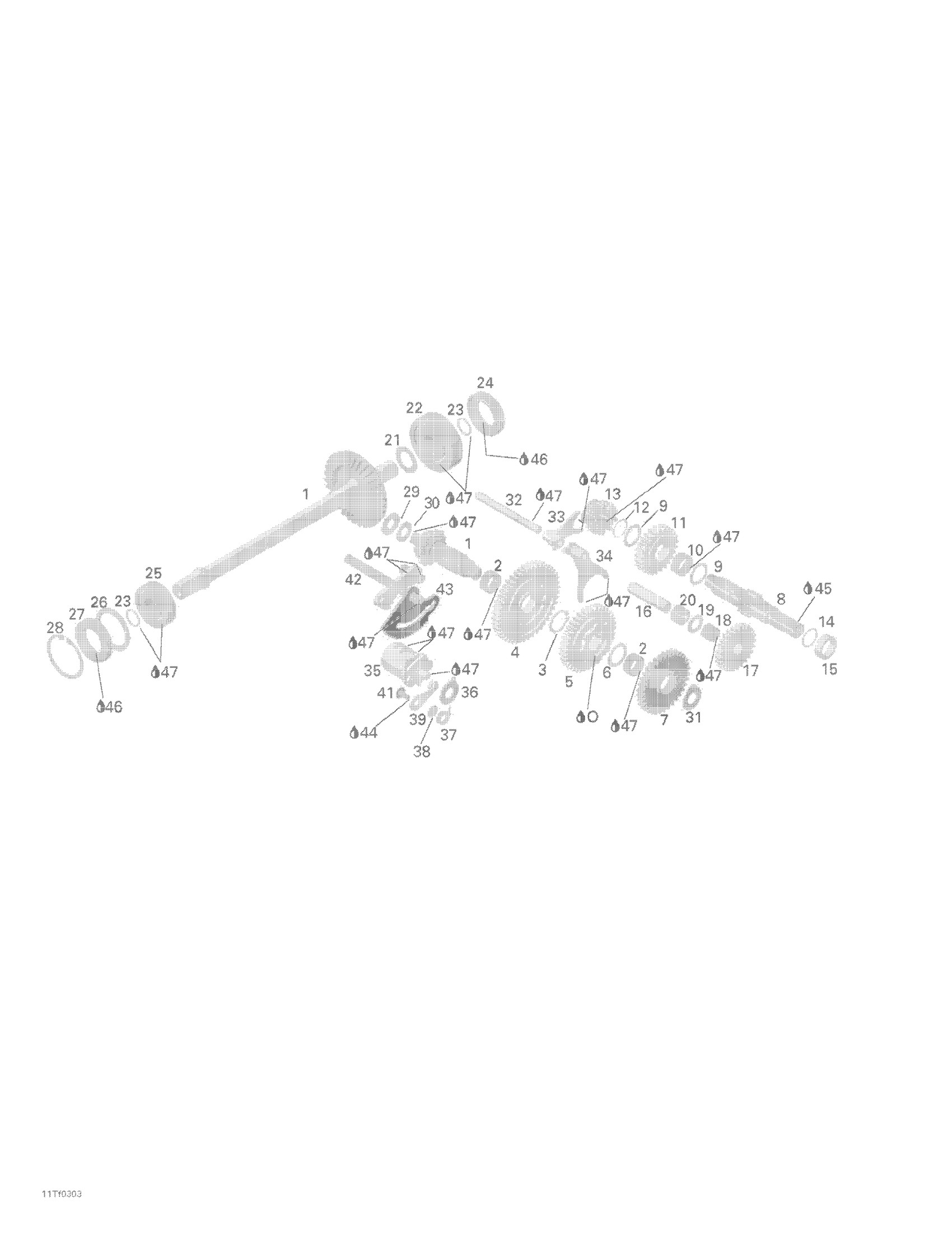

Can-Am Outlander 400, 2003 05- Gear Shift Diagram

#

Description
Price

1

Drive Ass'y | 400HO, Includes 1a to 20

420684220

Unavailable

1

BEVEL GEAR ASS?Y - Call your local BRP dealership

420296535

Unavailable

2

Gear Wheel Set | 400HO, Includes 2a to 7

420281285

$499.99

2

Needle Bearing

420632070

$25.99

3

Retaining Ring

420245850

$5.31

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

COUNTERSHAFT ASS'Y, 11 TEETH - Call your local BRP dealership | 400HO, Includes 8a to 15

420620440

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Circlip

420445302

$4.12

13

Not Available As Spare Part - Friction Washer

Unavailable

14

O-Ring

420630040

$4.44

15

Distance Ring

420247110

Unavailable

16

INTERMEDIATE GEAR SHAFT ASS'Y - Call your local BRP dealership | Includes 16a to 20

420635673

Unavailable

16

Needle Pin

420229600

$37.99

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Washer Thrust Set

420281300

$95.49

22

Ball Bearing 6405

420632280

$98.49

23

O-Ring

420430373

$3.17

24

Oil Seal

420650682

$19.49

25

Ball Bearing

420932822

$30.49

26

DISTANCE RING - Call your local BRP dealership

420247250

Unavailable

27

Oil Seal

420650682

$19.49

28

RETAINING RING - Call your local BRP dealership

420445070

Unavailable

29

Thrust Washer Set, MAG Side

420281306

$61.49

30

Axial Needle Bearing

420632300

$18.49

31

Thrust Washer Set, CVT Side

420281302

$86.99

32

Pin

420229540

$20.99

33

Shift Fork

420257332

$124.99

34

Shift Fork

420257342

$104.99

35

Shift Drum Ass'y

420257325

$124.99

36

ISOLATING WASHER - Call your local BRP dealership

420627780

Unavailable

37

Index Spring

420238290

$11.12

38

BUSHING - Call your local BRP dealership

420227710

Unavailable

39

Index Lever Kit

703500254

$52.99

39

Index Lever Ass'y

420248328

Unavailable

40

Index Spring

420238290

$11.12

41

Torx Screw M6 X 16

420241529

$2.11

42

Shift Shaft Ass'y

420620136

$98.99

43

Parking Lock Lever

420257316

$58.99

44

Loctite 243, 10 ml

293800060

$21.49

45

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

46

Grease, Super Lube

293550030

$28.99

47

Not Available As Spare Part - Friction Washer

Unavailable
