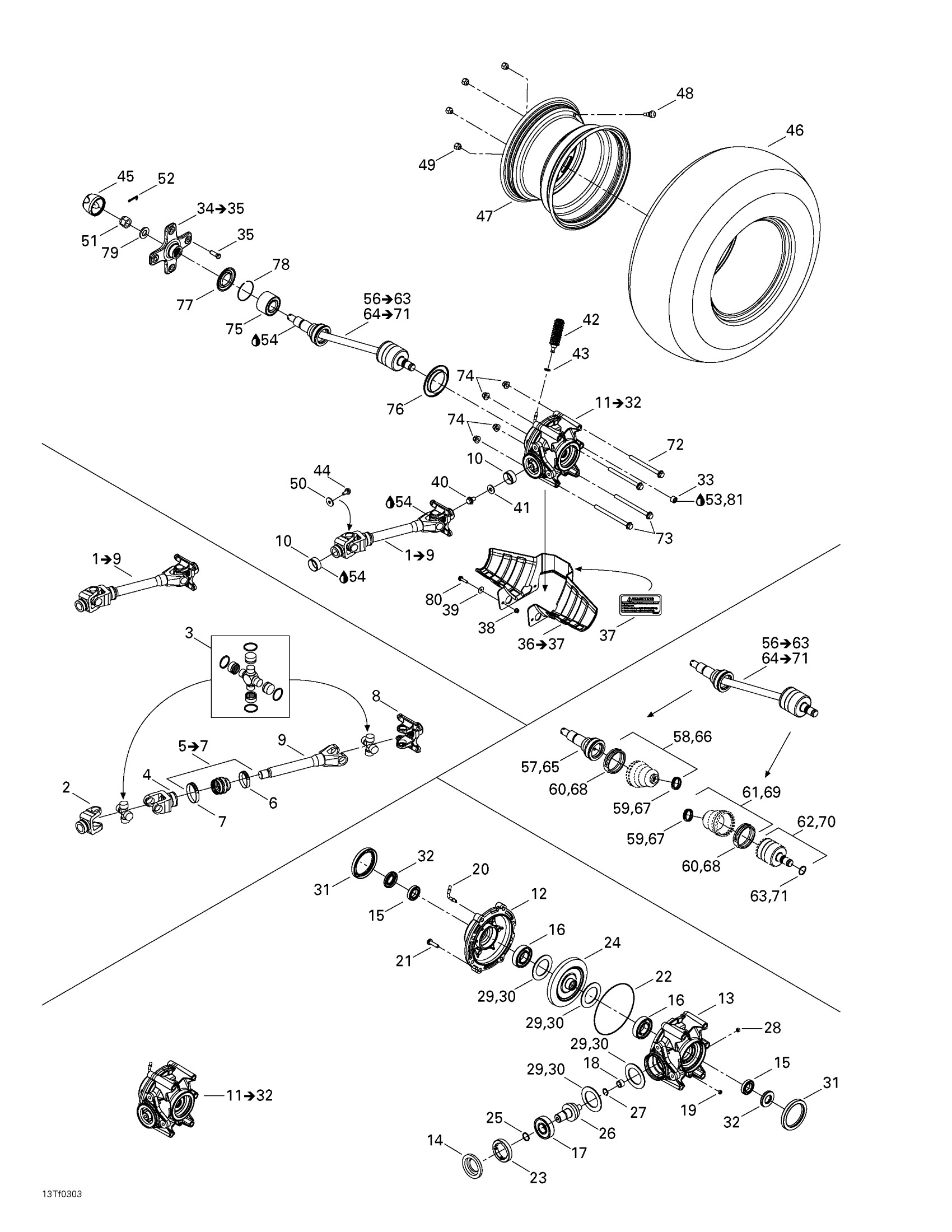

Can-Am Outlander 400, 2003 05- Drive System, Rear Diagram

#

Description
Price

1

Rear Propeller Shaft | Includes 1 to 9

703500825

$259.49

2

Fixed Yoke Joint

715900116

$59.49

3

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

6

Collar | 4X4

705400148

Unavailable

7

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

8

DISC JOINT - Call your local BRP dealership

705500351

Unavailable

9

Axle

705500352

Unavailable

10

Wear Ring | 4X4

705400036

$26.49

11

Differential | Includes 11 - 32.

705500325

Unavailable

12

REAR COVER - Call your local BRP dealership

705500326

Unavailable

13

Differential Carrier

705500324

Unavailable

14

Oil Seal | 4X4

705401481

$19.49

15

Ball Bearing | 4X4

293350044

$31.99

16

Ball Bearing | 4X4

705401606

$51.99

17

Ball Bearing | 4X4

705500260

$31.99

18

Needle Bearing | 4X4

705500261

$19.99

19

Drain Plug | 4X4

705500894

$11.49

20

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

21

Screw | 4X4

705401601

$10.49

22

Seal | 4X4

705500265

$18.76

23

Nut | 4X4

705401603

$35.99

24

GEAR, 36 TEETH - Call your local BRP dealership

705500416

Unavailable

25

O-Ring | 4X4

705500267

$7.65

26

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

27

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

28

Protector Plug

705500246

Unavailable

29

Pinion Gear Shim .022"

705500075

Unavailable

30

Shim | 4X4

705401604

$57.99

31

OIL SEAL - Call your local BRP dealership

715500368

Unavailable

32

Gasket | 4X4

705401618

$18.49

33

Fill level plug

705500228

Unavailable

34

Wheel Hub Ass'y | Includes 57 - 58.

705500361

Unavailable

35

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

36

Protector Kit | Includes 38 to 39

703500722

$67.99

37

WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership

704900766

Unavailable

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

39

Flat Washer

224060201

$1.26

40

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

41

Flat Washer M10 | 4X4

250200014

$1.49

42

Rubber Bellow | 4X4

705400552

$6.14

43

Tie Wrap 94 mm | 4X4

293750001

$1.03

44

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

45

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

46

Rear Tire | STD

705500441

Unavailable

47

REAR RIM - Call your local BRP dealership

705500366

Unavailable

48

Rim Valve With Cap

705400193

$8.69

49

Steel Wheel Nut

250100042

$3.98

50

Washer

211200041

$3.17

51

Hex. Flange Castellated Nut M18

232291413

$7.98

52

Cotter Pin

250400036

$2.11

53

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

54

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

55

Synthetic grease, 400 g

293500010

Unavailable

56

LH Drive Axle | Includes 56 - 63.

705500446

Unavailable

57

CV JOINT - Call your local BRP dealership

705500468

Unavailable

58

BOOT WHEEL KIT - Call your local BRP dealership | Includes 60 to 62

705500469

Unavailable

59

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

60

Clamp | 4X4

705400180

Unavailable

61

Boot Kit | Includes 63 to 65

705500428

$56.99

62

PLUNGING JOINT - Call your local BRP dealership

705500427

Unavailable

63

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

64

RH Drive Axle | Includes 64 - 71.

705500447

Unavailable

65

CV JOINT - Call your local BRP dealership

705500468

Unavailable

66

BOOT WHEEL KIT - Call your local BRP dealership | Includes 60 to 62

705500469

Unavailable

67

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

68

Clamp | 4X4

705400180

Unavailable

69

Boot Kit | Includes 63 to 65

705500428

$56.99

70

PLUNGING JOINT - Call your local BRP dealership

705500427

Unavailable

71

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

72

Hex. Flange Screw M10 X 125

230602546

$7.41

73

HEX. FLANGED SCREW M10 X 140 - Call your local BRP dealership

230604046

Unavailable

74

Hex. Flange Elastic Nut M10

233201436

$2.11

75

CONE BEARING - Call your local BRP dealership

293350112

Unavailable

76

WEAR SLEEVE - Call your local BRP dealership

705500901

$11.49

77

EXTERNAL WEAR SLEEVE - Call your local BRP dealership | 2X4

705501122

Unavailable

78

CIRCLIP - Call your local BRP dealership

293370034

Unavailable

79

WASHER - Call your local BRP dealership

250200019

Unavailable

80

Hex. Flange Screw M6 X 25

207662544

$0.64

81

Was 293800013 Loctite 56765

219704454

$65.99
