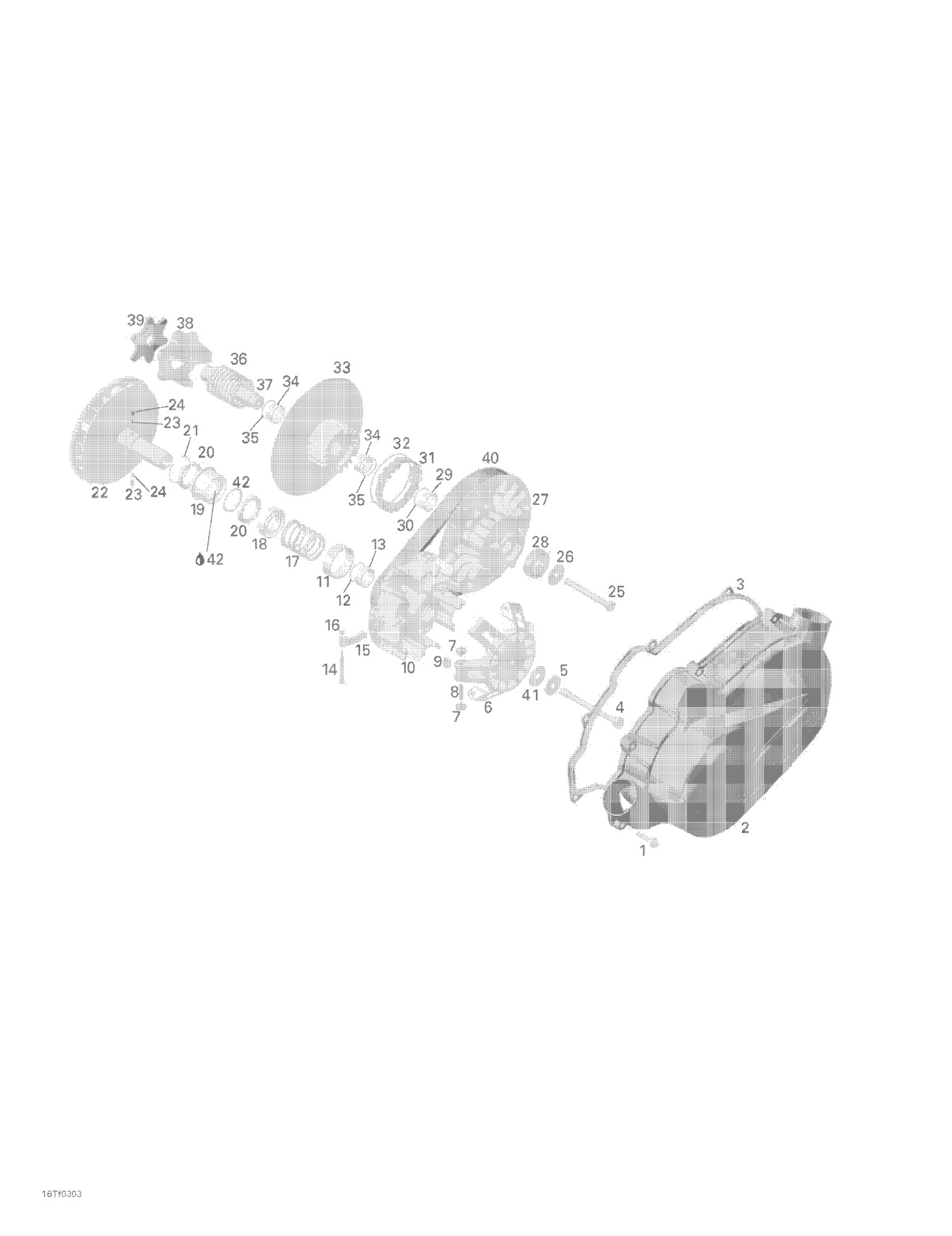

Can-Am Outlander 400, 2003 05- CVT / Transmission Diagram

#

Description
Price

1

Allen Screw M6 x 30,5

420440561

$4.44

2

CVT COVER - Call your local BRP dealership

420610420

Unavailable

3

CVT Cover Gasket

420630290

$31.99

4

Hex. Screw M12 X 140

420641812

$29.49

5

Spring Washer

420627760

$11.65

6

CVT Drive Ass'y | 400HO / Includes 6 to 24

420684400

Unavailable

6

Governor Cup Ass'y | Includes 6 to 9

420280522

$439.99

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Slider Shoe Set

420281296

$65.49

8

Roller Axle

417223257

$6.99

9

Roller

417223767

$11.59

10

Outer Half Ass'y | 400HO / Includes 10 to 16

420280310

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Centrifugal Lever Set | 400HO / Includes 14 to 16

420248424

$75.49

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Compression Spring

420238166

$35.99

18

Seat Spring

420627578

$35.99

19

Clutch

420257439

$169.99

20

Ball Bearing

420632377

$49.99

21

Retaining Ring

420245951

$5.31

22

Inner half ass'y

420280245

Unavailable

23

Spring Sleeve

420229577

$18.49

24

COMPRESSION SPRING - Call your local BRP dealership

420239131

$12.99

25

Hex. Screw M10 X 110

420441485

$12.18

26

Thrust Washer

420627590

$16.99

27

CVT Driven Pulley Ass'y | Includes 27 to 40

420684450

Unavailable

27

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Ball Bearing

420932421

$28.49

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

TORQUE GEAR - Call your local BRP dealership

420660120

Unavailable

32

Retaining Ring

420245911

$5.31

33

Inner Half Ass'y | Includes 33 to 35

420248233

$308.99

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Compression Spring

420238340

$24.49

37

Driven Pulley Shaft

420220913

$134.99

38

Cam

420280250

$43.49

39

Cam Plate

420627586

$48.99

40

Drive Belt

422280283

$104.99

41

Thrust Washer

420627920

$7.51

42

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
