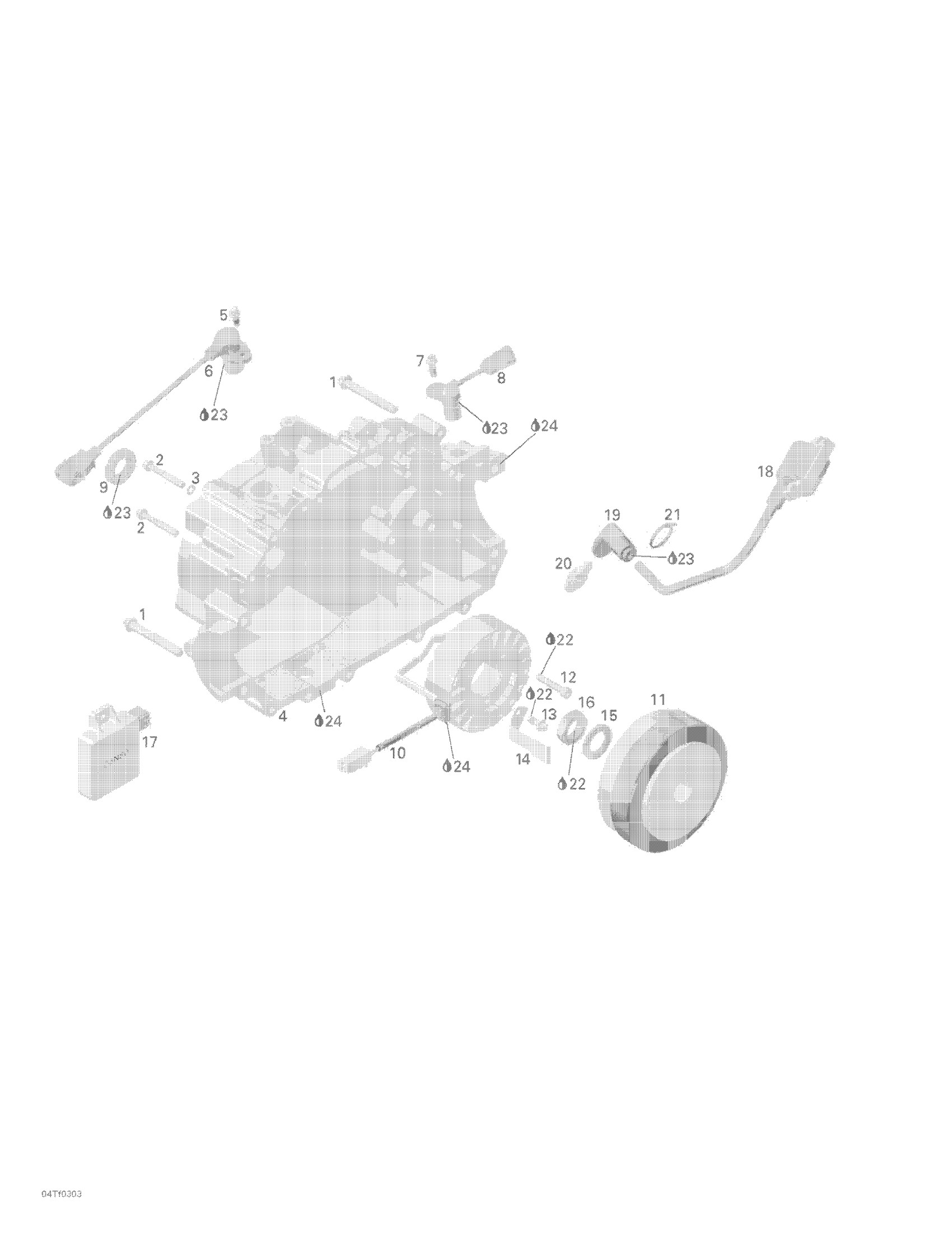

Can-Am Outlander 400, 2003 03- Magneto Diagram

#

Description
Price

1

Torx Flange Screw M8 x 65

420640333

$6.50

2

SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership

420241822

Unavailable

3

Seal Washer

420230415

$1.79

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Torx Flange Screw M6 x 16

420641043

Unavailable

6

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

7

Torx Flange Screw M6 x 16

420641043

Unavailable

8

Speed Sensor

420265723

$109.99

9

Oil Seal

420930392

$15.81

10

STATOR ASS'Y - Call your local BRP dealership

420684850

Unavailable

11

MAGNETO FLYWHEEL - Call your local BRP dealership

420684045

Unavailable

12

Socket Head Screw M6 X 35

420241811

$1.79

13

Torx Flange Screw M6 x 16

420641043

Unavailable

14

Inner Cable Cover

420251270

$12.12

15

Lock Washer, 22 mm

420945759

$1.90

16

Hex. Nut, M22 X 1.5

420842239

$17.53

17

Amplifier box

420664280

Unavailable

18

IGNITION COIL ASS'Y - Call your local BRP dealership | Includes 57 to 58

420265358

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Spark Plug Connector

420265248

$31.99

20

Spark Plug, NGK DCP-R8E

715900637

$6.35

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Loctite 243, 10 ml

293800060

$21.49

23

Grease, Super Lube

293550030

$28.99

24

Loctite 5910, 300 ml

293800081

$57.99
