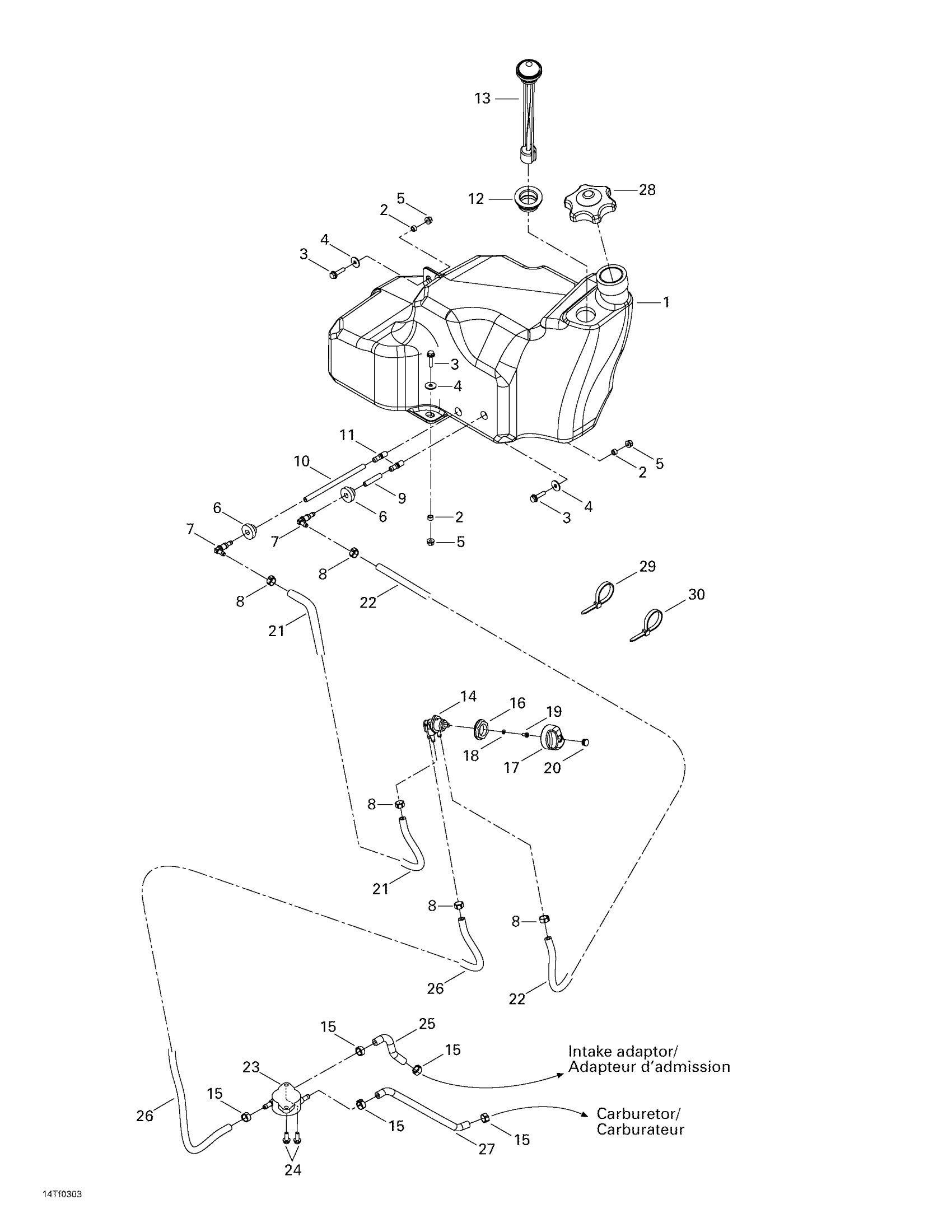

Can-Am Outlander 400, 2003 02- Fuel Tank Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

709000062

Unavailable

2

Bushing | DS 650 X

293900104

$5.50

3

Hex. Flange Screw M6 X 25

207662544

$0.64

4

Flat Washer

224061201

$1.37

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Grommet

570045500

$6.69

7

Elbow Male Connector

414580600

$4.23

8

Oetiker Clamp

293650042

$3.09

9

Polyurethane Hose 10000Mm Long

219704410

$56.99

10

Polyurethane Hose 10000Mm Long

219704410

$56.99

11

Fuel Filter

414865700

$10.99

12

Grommet

293720058

$11.99

13

FUEL GAUGE - Call your local BRP dealership

709000083

Unavailable

14

Fuel Valve

275500098

$43.99

15

Spring Clamp

414415200

$0.88

16

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

17

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

18

Flat Washer 4 mm

234040600

$0.55

19

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

20

Black, Cap

275500241

$3.49

21

Hose

219704549

$50.99

22

Hose

219704549

$50.99

23

Fuel Pump

707200183

$84.99

24

Hex. Flange Screw M6 X 16

210261650

$1.67

25

PULSATION HOSE - Call your local BRP dealership

709000063

Unavailable

26

Hose

219704549

$50.99

27

Hose

219704549

$50.99

28

FUEL CAP - Call your local BRP dealership

709000059

Unavailable

29

Tie-Rap 180 mm

414115200

$0.11

30

Tie Wrap 142 mm

293750002

$1.25
