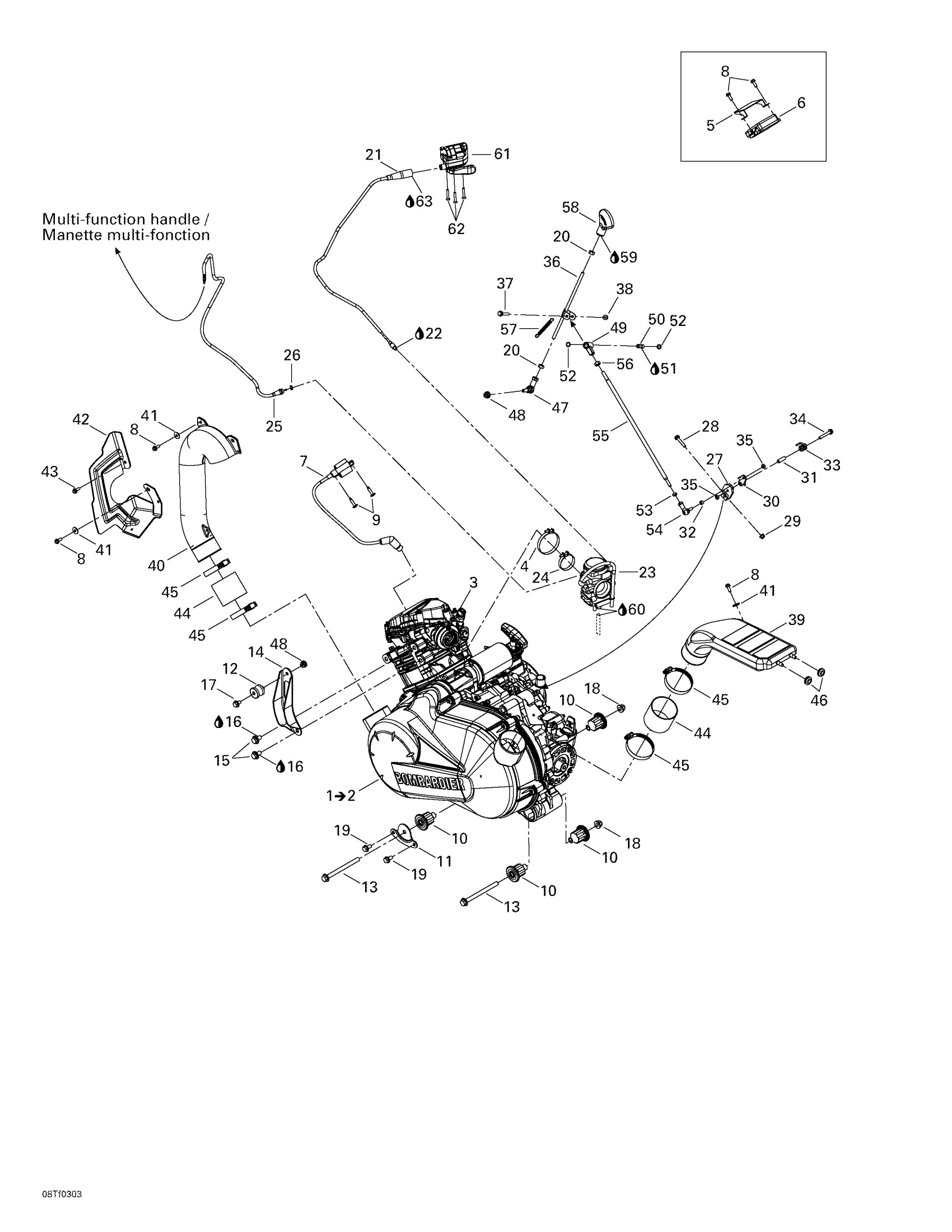

Can-Am Outlander 400, 2003 01- Engine And Engine Support Diagram

#

Description
Price

1

Rotax 4 Strokes Engine “400” | Includes 1 - 2.

707000235

Unavailable

2

Spark Plug, NGK DCP-R8E

715900637

$6.35

3

Intake Neck

420267340

$17.05

4

Clamp

420251480

$14.28

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Amplifier box

420664280

Unavailable

7

IGNITION COIL ASS'Y - Call your local BRP dealership | Includes 57 to 58

420265358

Unavailable

8

Hex. Flange Screw M6 X 16

210261650

$1.67

9

Torx Screw M6 X 25 | XT Models

250000728

$4.44

10

Anti-Vibration Mount

707000218

Unavailable

11

LH FRONT ENGINE BRACKET - Call your local BRP dealership

707000220

Unavailable

12

Rubber Isolator

707000949

$11.49

13

Hex. Flange Screw M10 X 125

230602546

$7.41

14

UPPER ENGINE BRACKET - Call your local BRP dealership

707000224

Unavailable

15

Hex. Flange Screw M10 X 25

207602544

$1.69

16

Loctite 243, 10 ml

293800060

$21.49

17

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

18

Hex. Flange Elastic Nut M10

233201436

$2.11

19

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

20

Hex. Nut M8

232081414

$0.72

21

THROTTLE CABLE - Call your local BRP dealership

707000226

Unavailable

22

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

23

Carburator, Mikuni BSR33-49 | 400HO

707200190

Unavailable

24

Gemi clamp

293650143

Unavailable

25

CHOKE CABLE - Call your local BRP dealership

707000228

$38.99

26

O-RING - Call your local BRP dealership

293300075

Unavailable

27

Lever

707000503

$38.49

28

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

Pivot Plate

707000507

$9.23

31

Bushing

293900079

$8.89

32

Bushing | DS 650 X

293900104

$5.50

33

Spring

707000310

$10.43

34

Hex. Flange Screw M6 X 40

207664044

$2.22

35

Elastic Stop Nut M6

232561414

$0.55

36

Lever Arm

707000786

$38.99

37

Hex. Flange Screw M6 X 40

207664044

$2.22

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

39

Air Outlet

707000227

Unavailable

40

Air Intake

707000261

Unavailable

41

Flat Washer

250200082

$0.42

42

CVT WATER DEFLECTOR - Call your local BRP dealership

707000697

Unavailable

43

Tuflock Phillips Plastic Screw

414745900

$1.69

44

FLEXIBLE ADAPTOR - Call your local BRP dealership

707000154

Unavailable

45

Tridon Clamp

293650064

$8.29

46

Grommet

709000582

$4.69

47

RH Ball Joint

707001959

$36.99

48

Hex. Elastic Stop Nut M8

232581414

$0.56

49

PIVOT - Call your local BRP dealership

707000568

Unavailable

50

Bushing

293900075

$11.99

51

Synthetic Grease, 400 G

293550010

Unavailable

52

O-RING - Call your local BRP dealership

414583300

Unavailable

53

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

54

LH BALL JOINT - Call your local BRP dealership

707000545

$45.99

55

Threaded Rod

707000567

$30.99

56

Hex. Nut M8

232081414

$0.72

57

Spring

707000569

$9.69

58

Lever Handle

707000284

$19.99

59

Loctite 243, 10 ml

293800060

$21.49

60

Glue Tube, Loctite 454, 20 G

413708300

$60.99

61

Throttle Handle | 4X4

707000595

$214.99

62

Socket head screw M5 x 25

205452546

Unavailable

63

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
