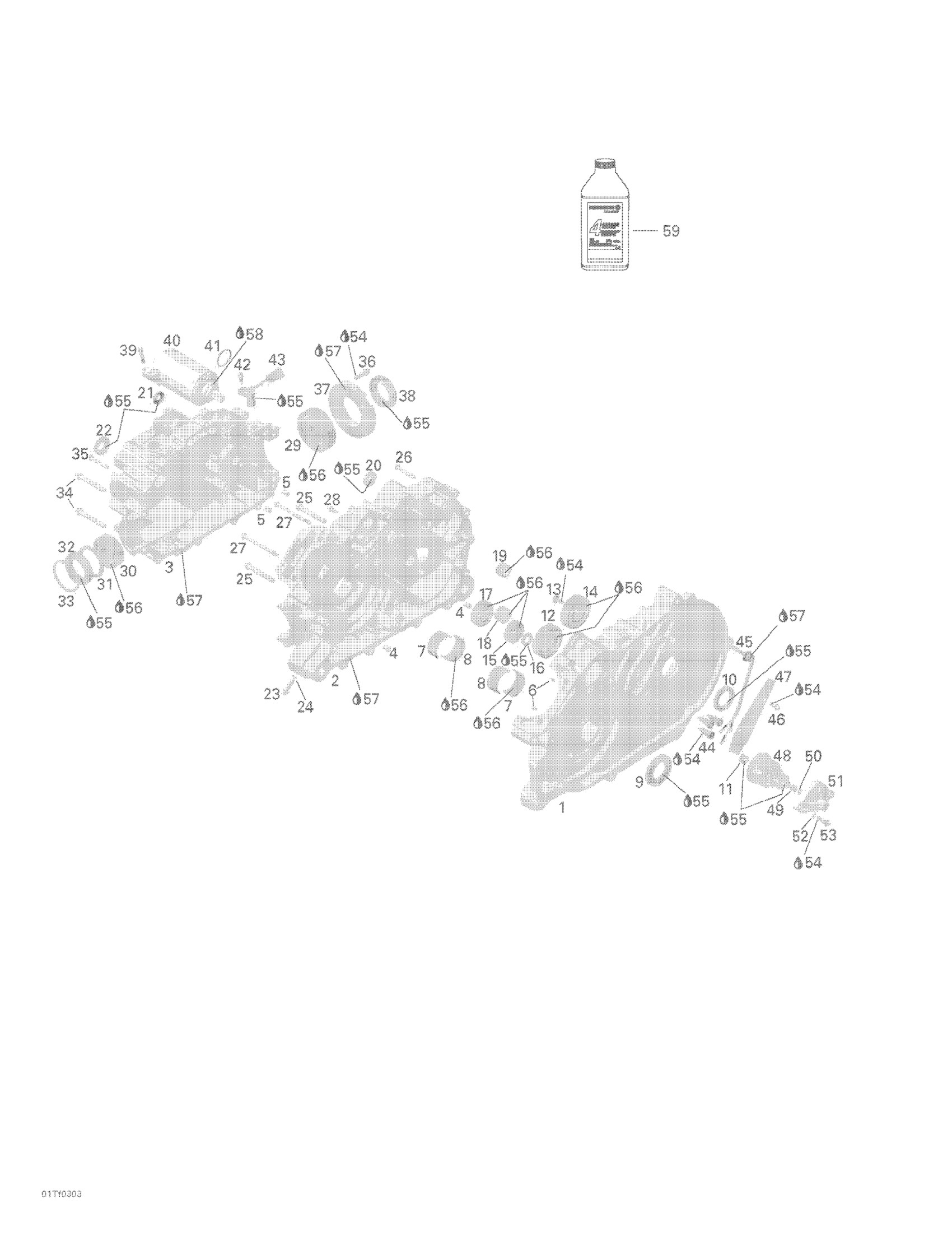

Can-Am Outlander 400, 2003 01- Crankcase Diagram

#

Description
Price

1

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 22

420296761

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Center Pin 8 X 12

420632010

$4.01

5

Center Pin 8 X 12

420632010

$4.01

6

Drive Pin 5 X 10

420929650

$1.68

7

Plain Bearing

420233960

$23.99

8

Plain Bearing

420233965

$23.99

9

Oil Seal

420630152

$18.54

10

Oil Seal

420950089

$19.49

11

Needle Bushing

420232482

$20.99

12

Ball Bearing

420632295

$47.49

13

Torx Screw M6 X 16

420241529

$2.11

14

Ball Bearing

420932822

$30.49

15

Ball Bearing 6302

420232291

$30.49

16

Oil Seal

420250130

$17.59

17

Ball Bearing 6204

420932433

$23.49

18

Needle Bushing

420232085

$37.99

19

Needle Bushing

420832240

$20.99

20

Oil Seal

420250450

$17.04

21

Oil Seal

420650315

$11.65

22

Oil Seal

420930392

$15.81

23

FLANGED TORX SCREW M8 X 25 - Call your local BRP dealership

420641243

Unavailable

24

Sealing Ring

420950141

$2.00

25

Torx Flange Screw M8 x 65

420640333

$6.50

26

SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership

420241822

Unavailable

27

Torx Flange Screw M6 X 85

420641228

$7.41

28

Torx Flange Screw M6 x 16

420641043

Unavailable

29

Ball Bearing 6405

420632280

$98.49

30

Ball Bearing

420932822

$30.49

31

DISTANCE RING - Call your local BRP dealership

420247250

Unavailable

32

Oil Seal

420650682

$19.49

33

RETAINING RING - Call your local BRP dealership

420445070

Unavailable

34

Torx Flange Screw M8 x 65

420640333

$6.50

35

SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership

420241822

Unavailable

36

FLANGED TORX SCREW M8 X 25 - Call your local BRP dealership

420641243

Unavailable

37

Bearing Cover

420610243

$58.99

38

Oil Seal

420650682

$19.49

39

Socket Head Screw M6 X 35

420241811

$1.79

40

Electric Starter | Includes 37 to 38

420684283

$265.99

40

Not Available As Spare Part - Friction Washer

Unavailable

40

BRUSH KIT - Call your local BRP dealership

420266305

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Torx Flange Screw M6 x 16

420641043

Unavailable

43

Speed Sensor

420265723

$109.99

44

Position Switch

420241856

$35.99

45

Wiring Harness

420265831

$53.99

46

Torx Flange Screw M6 x 16

420641043

Unavailable

47

Cover Sheet

420251290

$12.12

48

Starter Drive Assembly

420684052

$279.99

49

Spring

420938204

$7.65

50

Washer 5.3

420927574

$1.90

51

Reduction Cover Gear

420610891

$20.99

52

SPRING WASHER - Call your local BRP dealership

420845020

Unavailable

53

Hex. Screw M6 X 25

420240034

$1.90

54

Loctite 243, 10 ml

293800060

$21.49

55

Grease, Super Lube

293550030

$28.99

56

Not Available As Spare Part - Friction Washer

Unavailable

57

Loctite 5910, 300 ml

293800081

$57.99

58

Was 420297616 Klueber Grease, 60g

219704464

$23.99

59

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
