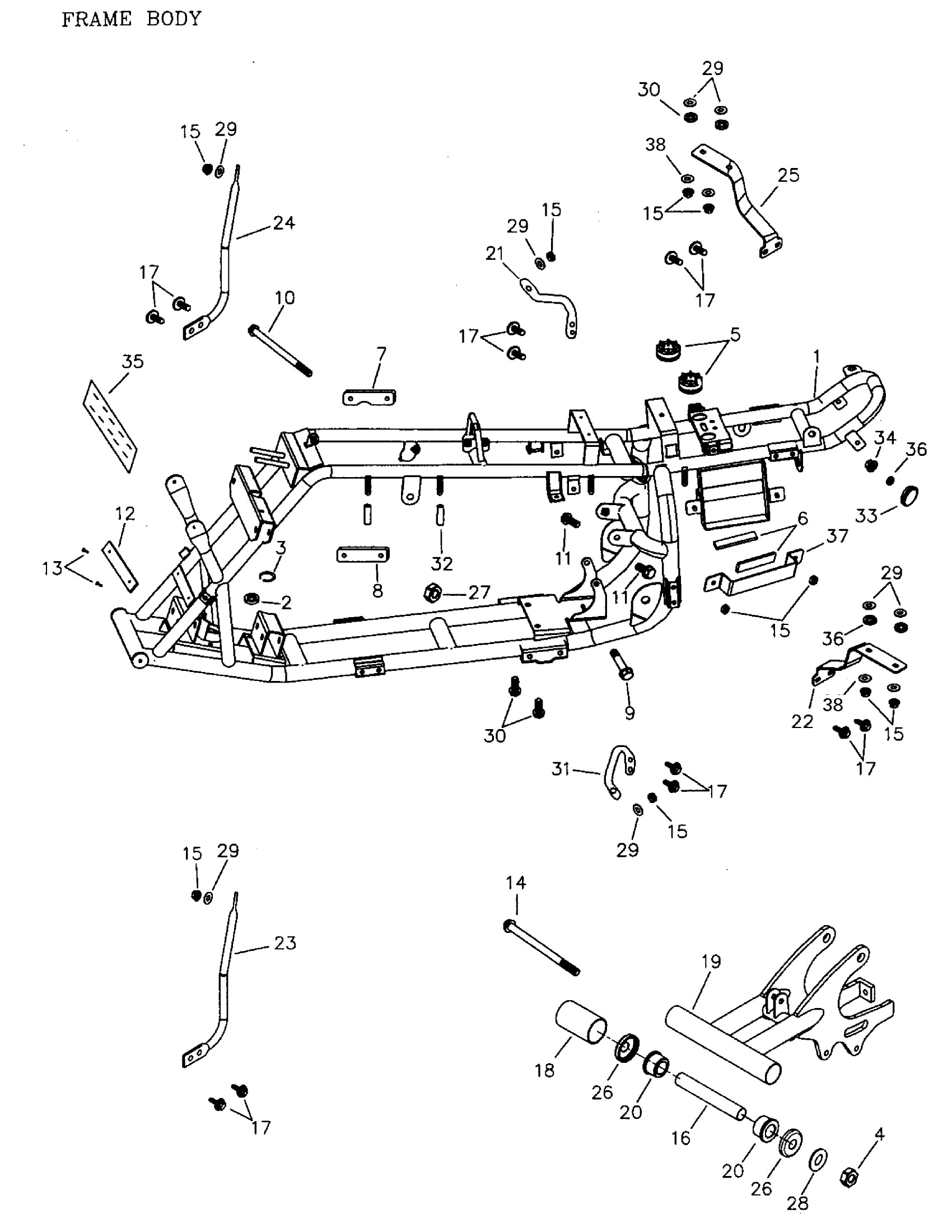

Can-Am Mini DS 90 4-strokes, 2003 09- Frame And Body 172a-16 Diagram

#

Description
Price

1

Frame Comp.

A50100172000

Unavailable

2

Radial Ball Bearing, 6002ZZ

A961006002ZZ

$23.49

3

INTERNAL CIRCLIP - Call your local BRP dealership

A945123200R

Unavailable

4

NYLON NUT M14 - Call your local BRP dealership

A9035014000

Unavailable

5

Rubber

A77211145000

Unavailable

6

SPONGE PAD - Call your local BRP dealership

A17505145000

Unavailable

7

RH Engine Fixed Plate

A50353152000

Unavailable

8

LH Engine Fixed Plate

A50354152000

Unavailable

9

Hex. Washer Face Bolt M8 X 110

A960000811014

Unavailable

10

Hex. Washer Face Bolt M8 X 120

A960000812014

Unavailable

11

Hex. Washer Face Bolt M8 X 36

A960000803612G

Unavailable

12

Frame No. Plate

A50110145000

Unavailable

13

Rivet

A90662105000

Unavailable

14

Hex. Washer Face Bolt M14 X 280

A960001428019

Unavailable

15

NYLON NUT M6 - Call your local BRP dealership

A9035006000

Unavailable

16

Swing Arm Spacer

A52104152000

Unavailable

17

HEXAGONAL BOLT M6 X 14 - Call your local BRP dealership

A920000601410

Unavailable

18

Rubber Sleeve

A52101145001

Unavailable

19

SWING ARM ASSY. - Call your local BRP dealership

A52100152002

Unavailable

20

BUSH - Call your local BRP dealership

A52103145000

Unavailable

21

REAR COVER LOWER RIGHT FIXED POLE - Call your local BRP dealership

A83401155000

Unavailable

22

Rear Cover Up Fixed Plate

A83402155000

Unavailable

23

FRONT COVER LEFT FIXED POLE - Call your local BRP dealership

A64307155000

Unavailable

24

FRONT COVER RIGHT FIXED POLE - Call your local BRP dealership

A64308155000

Unavailable

25

REAR COVER UP RIGHT FIXED PLATE - Call your local BRP dealership

A83403166000

Unavailable

26

SWING ARM SEAL COVER - Call your local BRP dealership

A52144145000

Unavailable

27

NYLON INSERT LOCK NUT M8 - Call your local BRP dealership

A9035008000

Unavailable

28

Plain Washer, 14 X 26 X 3

A941011426030

Unavailable

29

PLAIN WASHER, 6 X 18 X 2 - Call your local BRP dealership

A941010618020

Unavailable

30

HEXAGONAL WASHER FACE BOLT M8X15 - Call your local BRP dealership

A960000801512G

Unavailable

31

Rear Cover Lower Left Fixed Pole

A83404155000

Unavailable

32

Cable Clamp Rubber

A11357145000

Unavailable

33

Reflector

A33741145000

Unavailable

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

35

Frame Decal

AB0907559

Unavailable

36

Rubber Washer

A94102145000

Unavailable

37

BATTERY BRACKET - Call your local BRP dealership

A31504145000

Unavailable

38

PLAIN WASHER, 6 X 14 X 2 - Call your local BRP dealership

A941010614020

Unavailable
