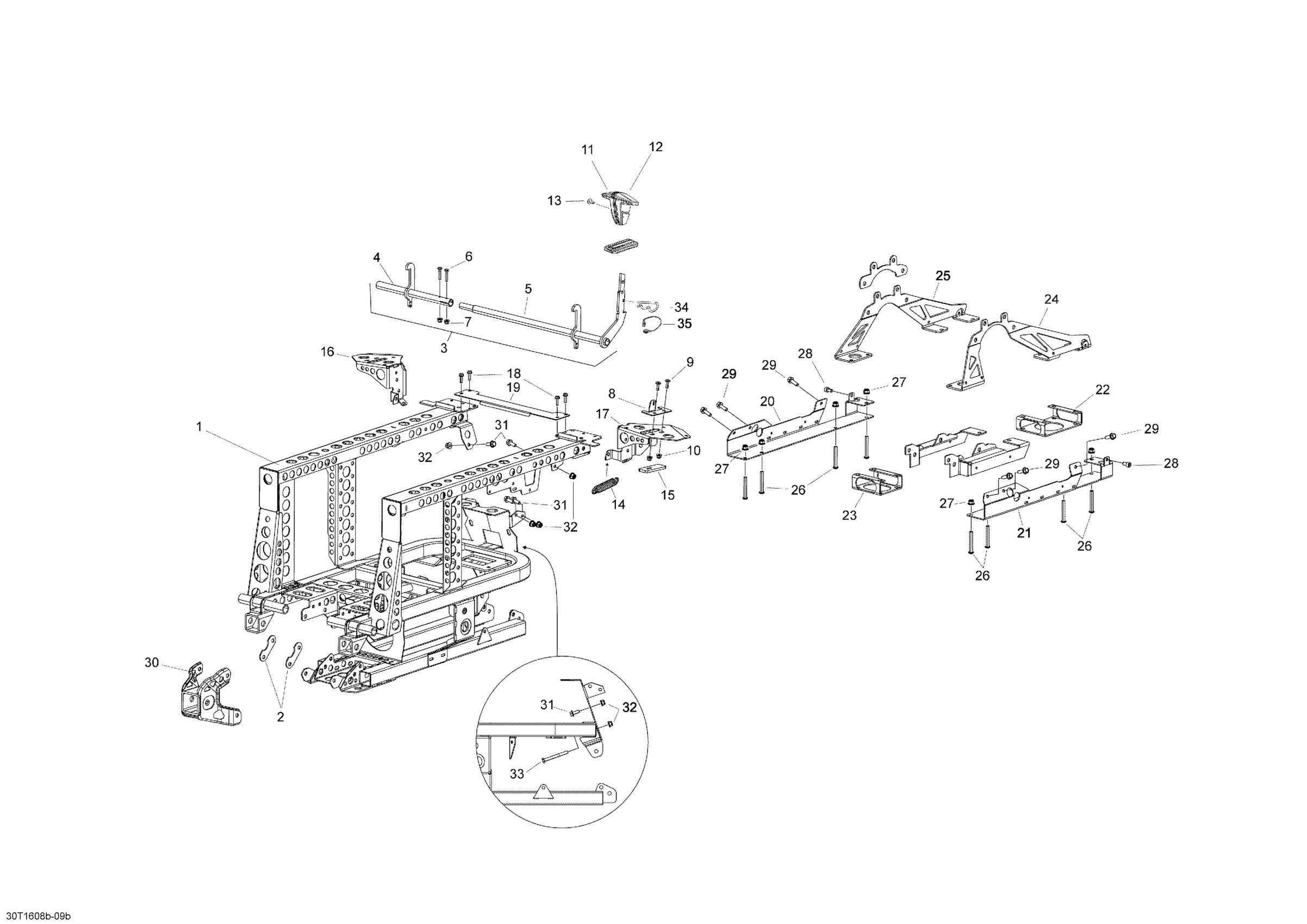

Can-Am Outlander 6X6 - 650 EFI, 2016 09- Rear Frame Diagram

Rear Frame Painted

705204221

$1,039.99

Support Plate

705203564

$24.49

Not Available As Spare Part - Friction Washer

Unavailable

LH Tube

705203669

$104.99

RH Tube

705203670

$119.99

Hex. Screw M6 X 30

207063044

$1.26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Lever Support

705203834

$18.49

Torx Screw M6 X 20

250000722

$1.68

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Left Half Knob

705008420

$20.99

Right Half Knob

705008048

$19.49

Not Available As Spare Part - Friction Washer

Unavailable

Spring

415107100

$6.35

Rubber Collar

708301280

$20.99

LH Rear Fender Support

705203611

$76.99

RH Rear Fender Support

705203612

$76.99

Hex. Flange Screw M6 X 20, Scotch Grip

250000331

$2.11

FILLER PLATE - Call your local BRP dealership

705203954

Unavailable

LH Lower Beam Reinforcement

705203724

$41.99

RH Lower Beam Reinforcement

705203725

$41.99

Front Support Plate

705203726

$96.99

Rear Support Plate

705203727

$96.99

LH Differential Support Reinforcement

705203728

$214.99

RH Differential Support Reinforcement

705203729

$214.99

Torx Screw M8 X 60, Scotch Grip

250000383

$7.29

Hex. Elastic Flange Nut M8

233281416

$1.48

Forming Screw HD.DIN.7500E

250000678

$3.91

Hex Forming Screw DIN.7500D

250000376

$7.51

Trailer Hitch

715006155

$88.99

Hex. Flange Screw M8 X 20

207682046

$1.90

Hex. Elastic Flange Nut M8

233281416

$1.48

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

Cotter Spring

505073670

$2.19

Retainer Cable

293750069

$15.99
