Description

Price

5

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

8

Hex. Flange Screw M6 X 16

207661654

$2.11

10

Hex. Flange Screw M6 X 20

207662084

$1.69

11

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

12

Hex. Flange Screw M8 X 20

207682044

$1.15

13

Hex. Flange Screw M8 X 35

207683534

$2.11

15

Carriage Bolt M6 X 35

207763554

$2.11

16

Carriage Bolt, M8 X 20

207782044

$1.90

18

Flat Washer

224061201

$1.37

19

Hex. Elastic Stop Nut M6

232561600

$1.15

24

Flange Elastic Nut M6

233261434

$4.44

25

Hex. Flange Elastic Nut M8

233281434

$2.11

27

Flat Washer 6 mm

234062410

$0.77

29

Hex. Screw M8 X 20

236282084

$1.48

30

Screw K40 X 10

241140060

$1.48

31

Panel Nut M6 X 1.0

250100198

$2.11

32

Torx Screw M6 X 20

250000722

$1.68

33

Torx Screw K50 X 16

250000720

$1.69

36

Torx Screw M8 X 30

250000886

$2.11

38

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

39

Tuflok Plastic Rivet

293150230

$1.47

40

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

41

Rubber Cover

293250242

$6.99

42

Threaded Insert M6 X 1.0

250100242

Unavailable

43

Rubber Bumper

293830005

$8.09

45

Edge Clip

517302785

$0.88

47

Grommet

705003264

$4.09

48

Engine Cover

705003444

$22.99

49

Dash Support Kit

715001552

$53.99

49

Console Support Ass'y | Model-Europe/International

715006101

$63.99

50

Yellow, LH Lateral Panel | Yellow

705003446

$57.99

50

Camo, LH Lateral Pannel | Camo Model

705009903

$309.99

50

Quarry Gray LH Lateral Panel | Model-Gray

705007530

$61.99

51

Yellow, RH Lateral Panel | Yellow

705009019

$57.99

51

PANEL_BODY RH B-365 - Call your local BRP dealership | Model-Gray

705009116

$59.99

51

Camo, RH Lateral Pannel | Camo Model

705009912

$309.99

60

Deflector_Body Panel Kit

715007008

$28.99

61

Front Bumper | XT

705005018

Unavailable

62

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$19.99

63

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$21.99

68

Cap (Front LH) (Rear RH) | XT

705004409

$7.90

69

Cap (Front RH) (Rear LH) | XT

705004410

$7.90

70

Ring

705004497

$5.19

71

Lugage Rack Moulding

705004523

$24.49

72

RH Front Inner Fender

705011463

$18.49

72

LH Front Inner Fender

705011465

$18.49

74

Lower Fender Support

705004565

$6.89

76

RH Rear Inner Fender

705011462

$23.99

76

LH Rear Inner Fender

705013111

$23.99

77

Bracket Cover | XT

705004987

$4.39

82

LH Structural Footboard

705011540

$119.99

82

RH Structural Footboard

705011542

$109.99

84

Shifter Gate | 1000 North America, 1000 International

705011544

$26.99

85

Front Bumper Support

705016893

$349.99

88

Sectional Bent Tube

705016640

$38.99

89

Bent Sectional Tube

705016092

$42.99

93

LH Air Deflector

705006134

$26.99

94

RH Air Deflector

705006135

$24.99

96

Front Guard Plate | North America, International

705006299

$51.99

107

Dash Kit

715006098

$30.99

110

Cargo Rack Center Support

705006812

$61.99

118

LH Step

705007040

$97.99

118

RH Step

705007039

$129.99

119

Fascia

705012822

$119.99

120

Gauge Support

705007095

$44.99

125

Protective Plate Kit

715002374

$64.49

129

YELLOW HOOD KIT - Call your local BRP dealership | Model-North America

715002777

Unavailable

129

Yellow Hood Kit | Model-International

715002779

Unavailable

129

BREAKUP COUNTRY CAMO HOOD KIT - Call your local BRP dealership | Model-North America

715003364

Unavailable

129

CAMO Hood Kit | Model-International

715003367

$819.99

129

GREY HOOD KIT - Call your local BRP dealership | Model-North America

715002780

Unavailable

129

Quarry Gray Hood Kit | Model-International

715002782

$114.99

132

YELLOW LH FRONT FENDER KIT - Call your local BRP dealership | Model-North America

715002743

Unavailable

132

YELLOW LH FRONT FENDER KIT - Call your local BRP dealership | Model-International

715002745

Unavailable

132

CAMO LH Front Fender Kit | Model-North America

715003315

$459.99

132

CAMO LH Front Fender Kit | Model-International

715003317

$459.99

132

QUARRY GRAY LH FRONT FENDER KIT - Call your local BRP dealership | Model-North America

715002746

Unavailable

132

Quarry Gray LH Front Fender Kit | Model-International

715002749

$204.99

132

Yellow RH Front Fender Kit | Includes 3 to 3a, Yellow

715001510

$204.99

132

Yellow RH Front Fender Kit | Model-Yellow Europe

715002208

$204.99

132

Camo, RH Front Fender Kit | Camo Model North America

715003208

$459.99

132

Camo RH Front Fender Kit | Model-International

715003339

$459.99

132

Grey RH Front Fender Kit | Model-Grey Nord America

715002209

$204.99

132

Grey RH Front Fender Kit | Model-Grey Europe

715002211

$204.99

134

Black, Torx Screw M6 X 35

250000646

$0.98

135

Hex. Flange Screw M6x70, Scotch Grip

207567044

$2.11

136

GREY LH REAR FENDER - Call your local BRP dealership | Model-North America

715002760

Unavailable

136

Grey LH Rear Fender

715002762

$139.99

136

YELLOW LH REAR FENDER - Call your local BRP dealership | Model-North America

715002757

Unavailable

136

YELLOW LH REAR FENDER - Call your local BRP dealership

715002759

Unavailable

136

BREAKUP COUNTRY CAMO LH REAR FENDER KIT - Call your local BRP dealership | Model-North America

715003354

Unavailable

136

Camo, LH Rear Fender | Model-International

715003358

$409.99

136

Grey RH Rear Fender | Model-North America

715002770

$139.99

136

Grey RH Rear Fender

715002771

$139.99

136

Yellow RH Rear Fender | Model-North America

715002772

$139.99

136

YELLOW RH REAR FENDER - Call your local BRP dealership

715002773

Unavailable

136

CAMO-RH Rear Fender | Model-North America

715003360

$409.99

136

CAMO-RH Rear Fender | Model-International

715003361

$409.99

143

Luggage Rack Kit

715001852

$224.99

143

Rack Kit | Model-International

715002240

$169.99

144

Box Ass'y

708200408

$82.99

145

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$38.99

146

Tool Kit

704700162

$44.99

147

Remote Control

710002270

$56.99

148

Adjustment Wrench

529000035

$2.09

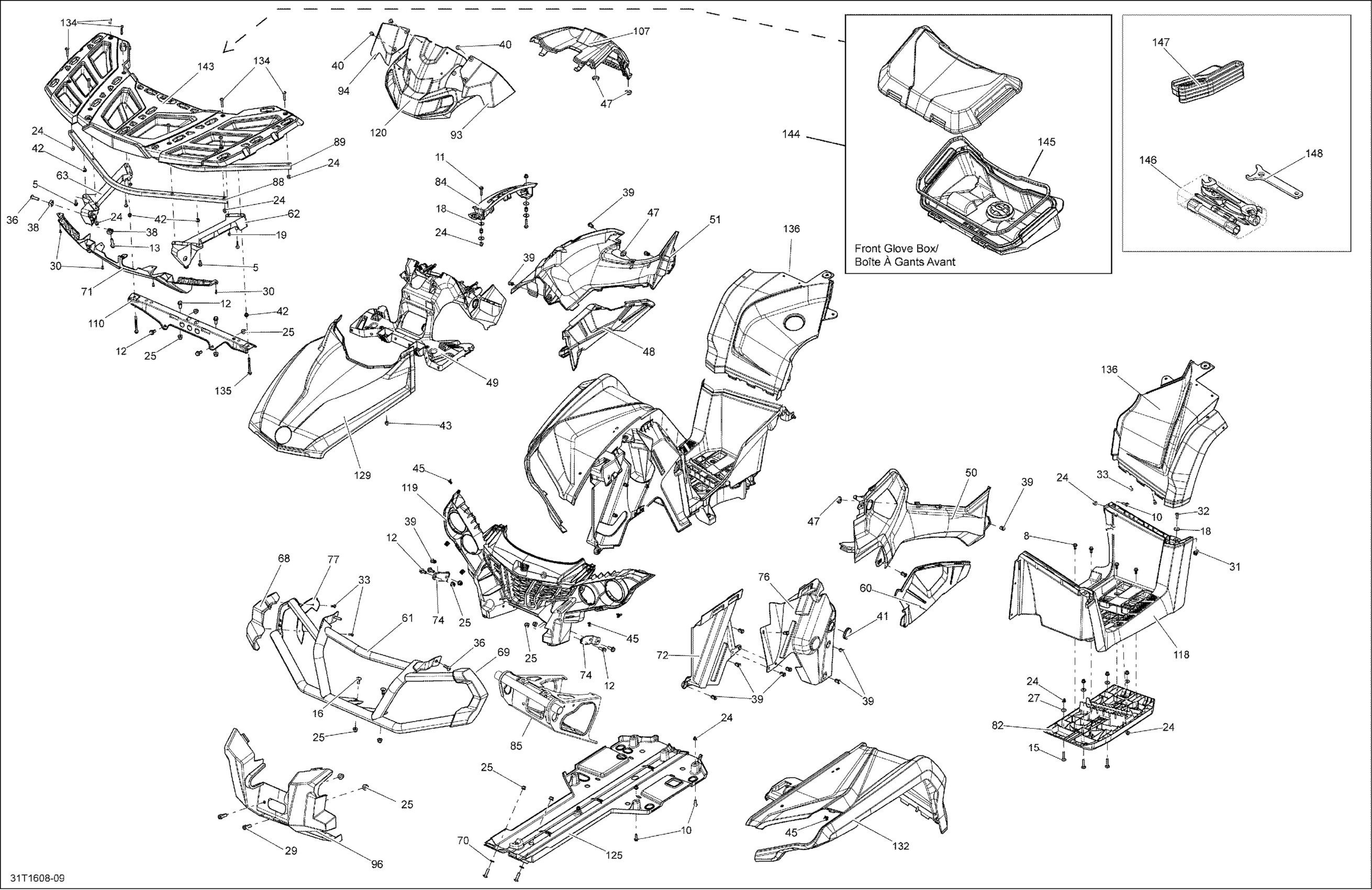

Can-Am Outlander 6X6 - 650 EFI, 2016 09- Body And Accessories, Front View_1 Diagram
