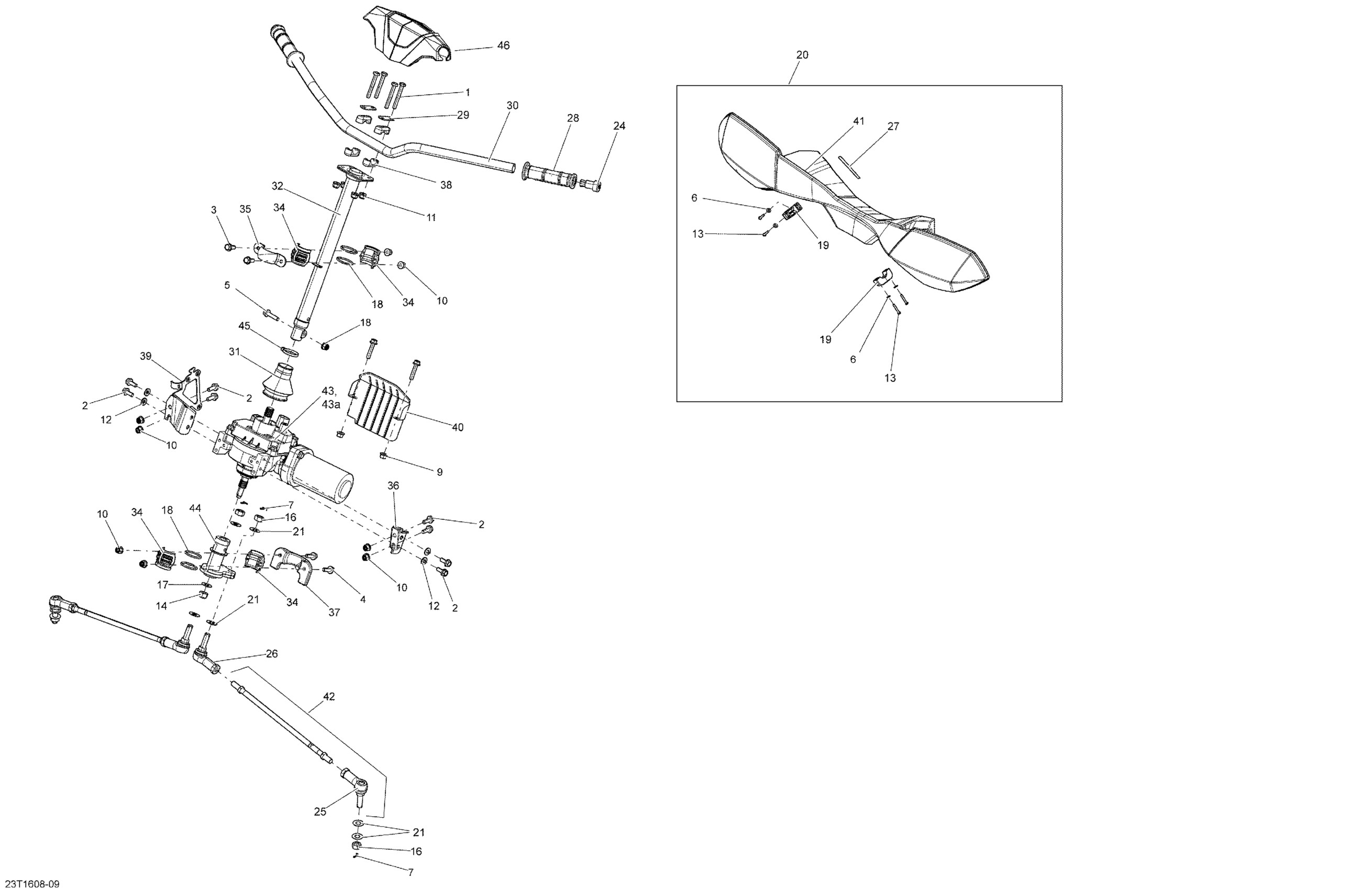

Can-Am Outlander 6X6 - 650 EFI, 2016 07- Steering Diagram

#

Description
Price

1

Hex. Screw M8 X 60

207086046

$2.85

2

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

3

Hex. Flange Screw M8 X 20

207682044

$1.15

4

Hex. Flange Screw M8 X 25

207682544

$1.35

5

Hex. Flange Screw M8 X 35

207683544

$1.69

6

Flat Washer | XT

211200035

$0.55

7

Cotter Pin

211400013

$0.37

9

Hex. Flange Nut M8

233081416

$1.15

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Hex. Elastic Flange Nut M8

233281416

$1.48

12

Conical Spring Washer M8

234281474

$1.48

13

Hex. Flange Screw K40 X 25

241142560

$2.64

14

Hex. Flange Elastic Nut M12

250000047

$1.90

16

Nut M12

250100099

$2.09

17

Hardened Washer

706200281

$2.85

18

O-Ring

293300068

$7.65

19

U-Clamp | XT

517303264

$11.99

20

Handle Guard Ass'y, XT

703100352

$98.49

21

Hardened Washer

706200281

$2.85

24

End Piece

709400449

$8.49

25

LH Ball Joint

709402303

$36.99

26

RH Ball Joint

709402302

$36.99

27

DPS Decal

704902966

$14.49

28

Handle Grip

709400493

$14.83

29

Stiffner

709400509

$4.69

30

Black, Handle Bar

709401240

$69.99

31

Bellows

709400674

$18.99

32

Kit Tube-Main.

703501137

$184.99

34

Spherical Half Bushing

709400783

$7.65

35

Upper Column Attachment

709400827

$1.09

36

Power Steering Module Bracket

709400848

$16.49

37

Column Attachment

709401428

$38.99

38

Steering Support

709400919

$22.49

39

RH STEERING BRACKET - Call your local BRP dealership

709400994

Unavailable

40

HEAT DEFLECTOR - Call your local BRP dealership

709401005

Unavailable

41

Handle Bar Protector | XT

709400822

$90.99

42

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

43

Power Steering

709401608

$1,010.49

43a

Calibration Electronic Module DPS

709401573

Unavailable

44

Lower Steering Tube, Black

709401320

Unavailable

45

Tie-Rap 173 mm

293750009

$1.04

46

Cover

709400939

$24.99
