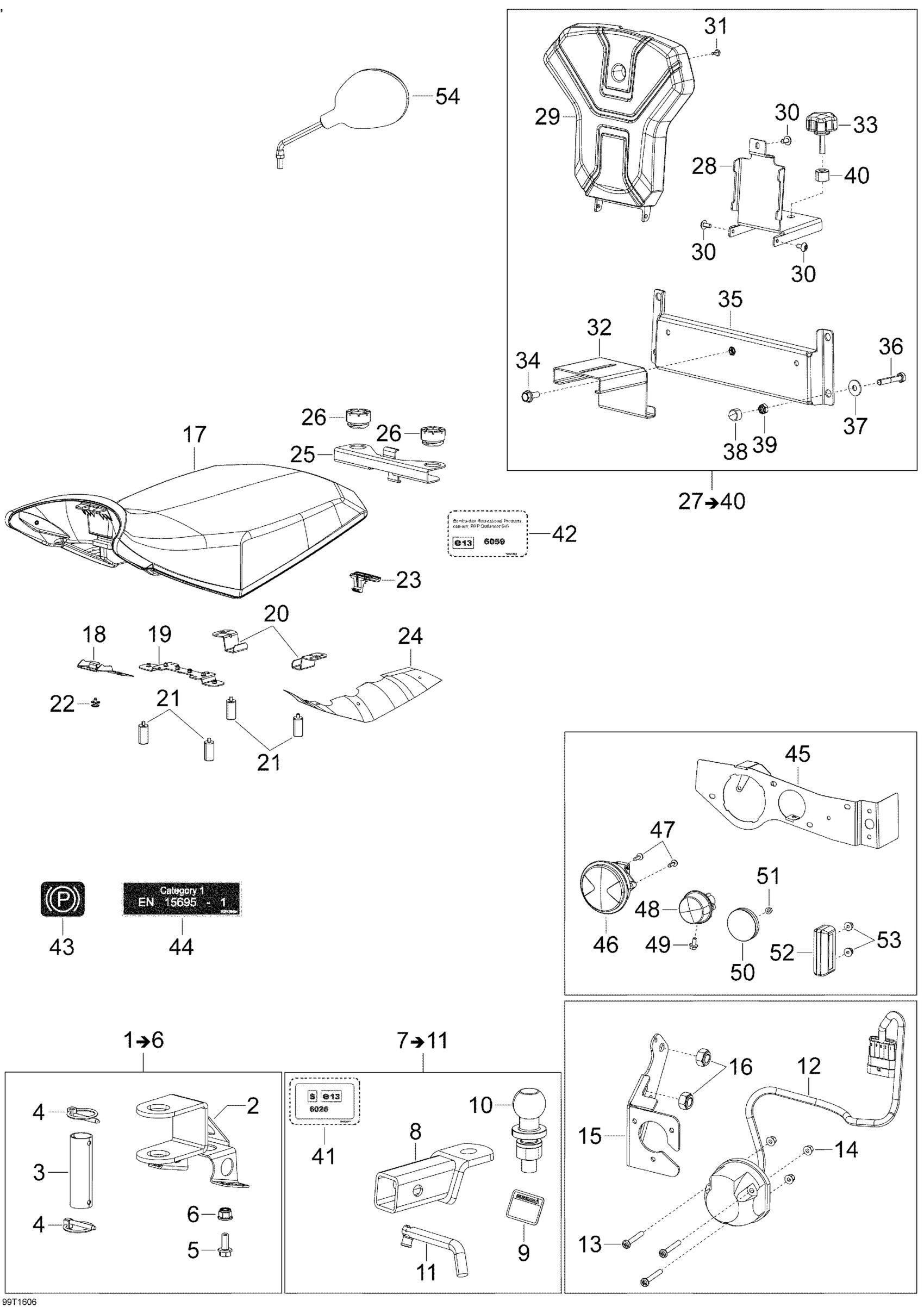

Can-Am Outlander 6X6 - 1000 EFI, 2016 11- T3 Parts Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Front Coupling Device

705205025

Unavailable

3

Pin

605456511

Unavailable

4

Pin

605456518

Unavailable

5

Hex. Flange Screw M8 X 20

207682044

$1.15

6

Hex. Flange Elastic Nut M8

233281414

$1.47

7

Trailer Hitch Kit | Package PRO International

705210328

$243.49

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Hitch Pin

705204490

$52.99

12

Trailer Harness

515177667

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Flange Elastic Nut M5

233251434

$2.00

15

Plug Fastening Plate

705204572

Unavailable

16

Elastic Stop Nut M10

232500416

$1.90

17

Seat Ass'y | Model-T3

708002208

Unavailable

18

Front Bottom Support | Model-T3

605456520

Unavailable

19

Support Central Cushion

510005986

Unavailable

20

Support Rear Cushion

510005988

Unavailable

21

RUBBER DAMPER - Call your local BRP dealership | Model-T3

605456546

Unavailable

22

Rivet | Model-T3

293150067

$2.89

23

Latch

708000909

$6.29

24

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

25

RAISER, SEAT (REAR) - Call your local BRP dealership | Model-T3

705204016

Unavailable

26

Bumper Rubber

708000760

$10.49

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Angle Support

705205085

Unavailable

29

Backrest | Model-T3

708001794

Unavailable

30

Torx Truss Screw M6 x 12 | Model-T3

250000675

$0.98

31

Rubber

605454799

Unavailable

32

Backrest Fixing Body Painted | Model-T3

708001607

Unavailable

33

Handle M8 X 35 | Model-T3

510003533

$44.49

34

Hex. Flange Screw M8 X 20

207682046

$1.90

35

Back Rest Support

708001611

Unavailable

36

Hex. Screw M8 X 45

207084544

$1.48

37

Stainless Steel Flat Washer

234082670

$2.11

38

Cover | Model-T3

28056

$5.89

39

Hex. Elastic Stop Nut M8

232581414

$0.56

40

Sleeve

708002168

$17.49

41

Instruction Decal | Package-XTT3

704904417

Unavailable

42

Instruction Decal | Package-XTT3

704904599

Unavailable

43

P-Decal, T3 | Package-XTT3

605356244

Unavailable

44

Cabin Decal, T3 | Package-XTT3

605456594

Unavailable

45

LH Tail Light Plate | Model-T3

605356527

Unavailable

45

RH Tail Light Plate | Model-T3

605356528

Unavailable

46

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

47

Torx Screw K50 X 16

250000720

$1.69

48

Flasher | Europe

710002964

$35.99

49

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

50

Red Reflector

705011221

$14.49

51

Flange Elastic Nut M5

233251434

$2.00

52

License Light

710002055

$58.49

53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

54

LH Mirror | Europe

709400406

$32.99

54

RH Mirror | Europe

709400407

$47.49
