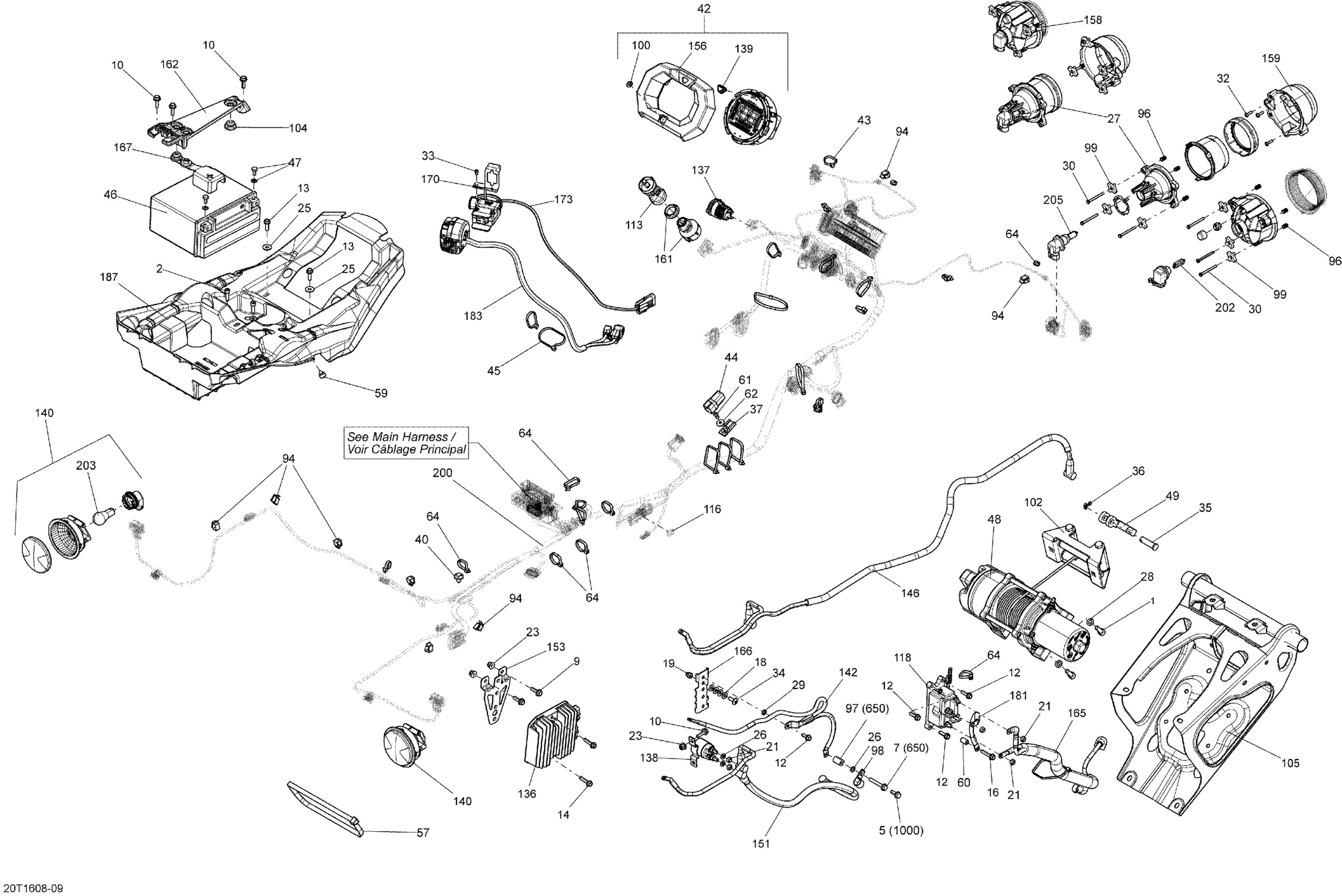

Can-Am Outlander 6X6 - 1000 EFI, 2016 10- Electrical System Diagram

#

Description
Price

1

Socket Head Screw M8 X 20

205082044

$1.15

2

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

5

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

7

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

9

Hex. Flange Screw M6 X 20

207662044

$2.00

10

Hex. Flange Screw M6 X 20

207662054

$1.01

12

Hex. Flange Screw M6 X 20

210262040

$2.11

13

Hexagonal Head Screw

210262050

$2.11

14

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

16

Hex. Flange Screw M6 X 40 | Package-XT North America, International

210264040

$1.90

18

Flat Washer

224061121

$0.53

19

Domed Nut M6

232361493

$2.11

21

Elastic Stop Nut M6

232561434

$1.99

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

25

Stainless Steel Flat Washer

234062670

$2.11

26

Lock Washer Helical M6

234161601

$1.15

27

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

28

Lock Washer 8 mm

234181401

$0.92

29

External Serrated Lock Washer 6 mm

234461608

$1.15

30

Hex. Screw K40 X 45

250000718

$2.11

32

Phillips Screw K40 X 16

250000723

$0.98

33

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

34

Torx Head Screw M6 X 16

250000717

$2.11

35

Clevis Pin

250400021

$13.18

36

Cotter Pin

250400022

$9.69

37

Clip

270000141

$11.49

40

Mount Dart

293730040

$1.04

42

Speedometer Ass'y | DPS, XT

710003923

$499.99

42a

Lens

415129320

$24.49

43

Tie Wrap 142 mm

293750002

$1.25

44

Housing

710003006

$8.79

45

Tie Wrap 368 mm

293750008

$1.04

46

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

47

Battery Bolt Kit

250000282

$7.29

48

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

49

Winch Hook Kit

705014949

$24.99

57

Tie-rap 627 mm

293750041

$0.93

59

Rubber Bumper

293830005

$8.09

60

Sleeve

293900078

$13.71

61

Pop Rivet 3/16"

390402300

$0.75

62

Washer | DS 650 X

391301600

$0.48

64

Tie-Rap 180 mm

414115200

$0.11

94

Clip

414227300

$1.67

96

Spring

517168600

$7.39

97

Spacer

517203200

$16.18

98

Open Clamp

518321570

$7.69

99

Handle

572106600

$10.33

100

BRP Logo13 mm

704904615

$13.49

102

Fairlead_Roller Kit

715007699

$83.99

104

Stopper Rubber

705014429

$5.95

105

Front Bumper Support

705016893

$349.99

113

Black, Electronic Key

710000817

$63.49

113

Grey, Electronic Key

710002183

$63.49

116

Clip

710000992

$4.29

118

Winch Solenoid | XT Models

710001000

$121.99

136

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

137

DC Outlet

710001248

$37.99

138

Starter Relay

710007777

$48.49

139

Button

710001473

$13.71

140

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

142

Ground Cable

710004382

$19.99

146

Connector Ass'y

710004375

$32.99

151

POSITIVE CABLE - Call your local BRP dealership

710001750

Unavailable

153

Rectifier Support

710001752

$9.29

156

Trim Ring

710002092

$8.99

158

Low Beam | Includes 54 to 55

710006177

$119.99

159

RH High Front Housing

710002291

$28.99

159

LH High Front Housing

710002292

$22.49

161

Ignition Switch

710008400

$78.49

162

Fixation Plate

710002404

$9.39

165

Winch Cables

710004378

$51.99

166

Connector Bracket

710004118

$5.40

167

Battery Cable Cap

710006729

$7.20

170

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$10.27

173

Winch Switch | XT, XTP, XMR, LTD,

710002724

$164.49

181

CABLE_NEGATIVE - Call your local BRP dealership

710003003

Unavailable

183

Multi-Function Handle | Except Model-Europe

710004617

$83.49

183

Multi-Function Handle

710004040

$179.99

187

Battery Support

710006561

$50.99

200

Main Harness

710005005

$949.99

202

Bulb 12V 55W

715900141

$41.49

203

Bulb

520000758

$9.10

205

Halogen Bulb

415129249

$41.49
